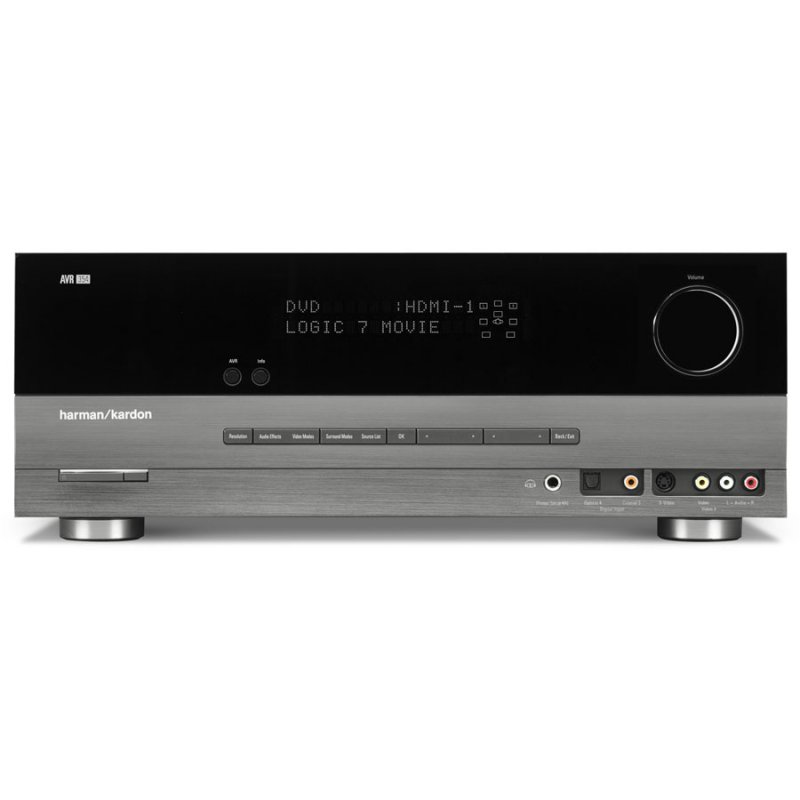

7 x 75W 7.1-Channel A/V Receiver with HDMI™ 1.3a Repeater, Audio/Video Processing and Upscaling to 1080p

The AVR 354 includes a full complement of Dolby® and DTS® decoding technologies, HDMI™ repeater capability, Faroudja DCDi Cinema® processing, EzSet/EQ™ equalization and multiroom capability. It connects to a universe of digital and analog sources, as well as to external amps. And with The Bridge II docking station (included), it will even play, control and charge your iPod. To ensure that everything works together seamlessly, the AVR 354 features a full-color graphical user interface and an eight-device programmable remote. Harman Kardon® founder Dr. Sidney Harman has always believed technology should serve users, not intimidate them. The AVR 354 is a perfect case in point.

Audio

• Stereo Mode
• Continuous Average Power (FTC) per Channel : 75 Watts per channel,
• 20Hz – 20kHz, @ <0.07% THD, both channels driven into 8 ohms
• Seven-Channel Surround Modes, Power per Individual Channel :
• Front L & R Channels : 75 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
• Center Channel : 75 Watts @ <0.07% THD, 20Hz – 20kHz into 8 ohms
• Surround Channels (L & R Side, L & R Back) : 75 Watts per channel @ <0.07% THD, 20Hz – 20kHz into 8 ohms
• Input Sensitivity/Impedance, Linear (High-Level) : 200mV/47k ohms
• Signal-to-Noise Ratio (IHF-A) : 100dB
• Surround System Adjacent Channel Separation :
• Dolby® Pro Logic® I and II : 40dB
• Dolby® Digital : 55dB
• DTS® : 55dB
• Frequency Response at 1W (+0dB, –3dB) : 10Hz – 130kHz
• High Instantaneous Current Capability (HCC) : ±35 Amps
• Transient Intermodulation Distortion (TIM) : Unmeasurable
• Slew Rate : 40V/µsec
• FM Tuner
• Frequency Range : 87.5 – 108.0MHz
• Usable Sensitivity : IHF 1.3µV/13.2dBf
• Signal-to-Noise Ratio : Mono/Stereo 70/68dB
• Distortion : Mono/Stereo 0.2/0.3%
• Stereo Separation : 40dB @ 1kHz
• Selectivity : ±400kHz, 70dB
• Image Rejection : 80dB
• IF Rejection : 90dB
• AM Tuner
• Frequency Range : 520 – 1720kHz
• Signal-to-Noise Ratio : 45dB
• Usable Sensitivity : Loop 500µV
• Distortion : 1kHz, 50% Mod 0.8%
• Selectivity : ±10kHz, 30dB

Video

• Television Format : NTSC
• Input Level/Impedance : 1Vp-p/75 ohms
• Output Level/Impedance : 1Vp-p/75 ohms
• Video Frequency Response :
• Composite and S-Video : 10Hz – 8MHz (–3dB)
• Component Video : 10Hz – 100MHz (–3dB)
• HDMI™ : Version 1.3a with 10-bit Deep Color

General

• Power Requirement : AC 120V/60Hz
• Power Consumption : 118W idle, 890W maximum (7 channels driven)
• Unit Dimensions :
• Width : 17-5/16" (440mm)
• Height : 6-1/2" (165mm)
• Depth : 15" (382mm)
• Carton Dimensions (W x H x D) : 21-7/8" x 10-1/2" x 18-5/16"
• (555mm x 266mm x 465mm)
• Unit Weight : 31.5 lb (14.3kg)
• Shipping Weight (System, Accessories, Packing) : 36.7 lb (16.7kg)

Two-Year Manufacturer's Warranty
