Escape into THX®-Certified Surround Sound

Movie, music, and gaming enthusiasts can now step up to realistic THX® Select2 Plus™-certified surround sound for less money down with the new TX-NR616 Network A/V Receiver. Onkyo’s acclaimed WRAT amplifier with three-stage inverted Darlington circuitry delivers cinema-like power in the home . With Audyssey DSX™ expansion, you can add extra Wide or Height channels for more enveloping surround sound, while 2EQ acoustic cor rection guarantees optimal performance in any room. Eight HDMI® inputs handle 3D content, HD audio, and video display upscaled to 4K with onboar d Qdeo™ technology. The MHL/HDMI input lets you connect a smart phone for smooth 1080p playback on your TV. Wireless home networking, meanwhile, opens up an exciting world of internet radio and cloud-based music streaming. You can even enjoy your multi-format PC-based music collection over Wi-Fi with an optional USB adapter. Intuitive system control—including audio distribution in m ultiple rooms—is provided by Onkyo’s remote apps for iPod touch®/iPhone® and Android phone, or press the Quick Set-Up button on the supplied remote for instant mid-program adjustments. Visual input selection with InstaPrevue™ technology rounds out what is an exceptionally refined and affordable THX receiver.

Special Features

8in/2out HDMI Support for 3D Video and Audio Return Channel
THX Select2 Plus Certified
Network Capability Delivers Internet Radio and Network Streaming
Marvell Qdeo™ Video Chip for 4K Upscaling and Processing
MHL™ (Mobile High-Definition Link) for Smart Phone Content on HDTV
Picture-in-Picture Input Source Preview with InstaPrevue™ Technology
Direct Digital Connection of iPod/iPhone via Front-Panel USB Port
Onkyo Remote App for iPod/iPhone
Dolby® Pro Logic® IIz Add New Dimensions to Surround Sound
Hybrid Standby Function to Reduce Power Consumption

Amplifier
# Channels	7.2
Power Watts/ch	100W (8ohms 20-20kHz, 0.08%, 2 Channels Driven, FTC)
Power (8ohms 20-20kHz 0.05%) /Ch	-
THX Certified	Select2 Plus
Continuous 6ohms Rated	YES
Certified 4ohms performance	-
All Discrete Circuitry	YES
3-Stage Inverted Darlington Circuitry	-
PUSH-PULL Design	-
Independent Block Construction (Amp/Preprocessor)	-
Toroidal Transformer	-
Independent Power Supply	-
Bi-amp Capability For Front	-
BTL Capability For Front	-
Processing
DOLBY Decoder	True HD, DD Plus, PLIIz
DTS Decoder	DTS-HD Master Audio
Dolby PLIIz	YES
ONKYO GAME Surround Modes	YES
DTS Surround Sensation Speaker / Headphone	- / -
Neural Surround	-
THX Processing Mode	-
Audyssey DSX	YES
Audyssey Dynamic EQ	YES
Audyssey Dynamic Volume	YES
Direct/Pure Mode	YES / -
Music Optimizer	YES (Advanced)
192K/24 Bit DACs	YES (Burr-Brown)
VLSC	-
isf Certified Calibration Control	-
Connectivity
Audio I/O	5 / 2
Phono Input	-
Digital Audio IN (OPT/COAX)	2 / 2
Digital Audio OUT (OPT/COAX)	-
Composite I/O	5 / 1
S-Video I/O	- / -
Component Video I/O	2 / 1
Front-Panel A/V	V
Front-Panel Optical	-
USB Input	Front (made for iPod/iPhone) and Rear
HDMI I/O	8 (7 + 1)/ 2
HDMI Version	V1.4a (supports 3D video and Audio Return Channel)
Component Video Upconversion	-
Analog To HDMI Upconversion	YES
1080p Upscaling	YES (Marvell Qdeo)
4K (up to 4096 x 2160) Upscaling	YES (Marvell Qdeo)
Multi-Channel Input	-
Analog Pre-Outs	Sub
Speaker A/+B	-
Powered Zone2	YES
Zone 2 Line Out	YES
Zone 2 Video Out	-
Zone 3 Line Out	-
U-Port	-
iPod Ready	YES (direct USB input)
HD Radio Ready	-
Internet Radio Capable	YES (vTuner, Pandora, Spotify, Aupeo, Rhapsody, Sirius/XM iRadio, Slacker, LastFM iRadio, MP3tunes cloud service)
Streaming Audio From PC	YES
Streaming Audio From USB memory	YES
Wireless Network Ready via USB	YES (optional UWF-1)
PC Input (15 pin D-sub)	-
Integration Access
RS-232	-
IR Input	-
Ethernet	YES
ONKYO-RI System Control	YES
12V Trigger	-
Miscellaneous
Pre-Pro/Learning Remote	YES / -
Back-Lit Remote	-
On Screen Remote Programming	YES
Bi-directional Remote Setup via GUI	-
Activity Based Remote	-
Color-Coded Speaker Terminals	YES
Auto Speaker Calibration W/Mic.	YES (Audyssey 2EQ)
OSD Out	YES (advanced "Home" GUI)
Solid Aluminum Front	-
Warranty	2 YEARS

Amplifier Section
Power Output	-
All Channels	115 W (6 ohms, 1 kHz, 0.7%, 2 channels driven)
Front L/R	100 W (8 ohms, 20 Hz-20 kHz, 0.7%, 2 channels driven, FTC) 125 W + 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
Center	100 W (8 ohms, 20 Hz-20 kHz, 0.7%, 2 channels driven, FTC) 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
Surround L/R	100 W (8 ohms, 20 Hz-20 kHz, 0.7%, 2 channels driven, FTC) 125 W + 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
Surround Back L/R	100 W (8 ohms, 20 Hz-20 kHz, 0.7%, 2 channels driven, FTC) 125 W + 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
Dynamic Power	240 W (3 ohms, 1 ch) 210 W (4 ohms, 1 ch) 120 W (8 ohms, 1 ch)
THD+N (Total Harmonic Distortion + Noise)	0.08% (20 Hz-20 kHz, Half power)
Damping Factor	60 (Front, 1 kHz, 8 ohms)
Input Sensitivity and Impedance	200 mV/47 k-ohms (Line)
Output Level and Impedance	200 mV/2.2 k-ohms (Rec out)
Phono Overload	-
Frequency Response	5 Hz-100 kHz/+1 dB, -3 dB (DSP bypass)
Tone Control	±10 dB, 50 Hz (Bass) ±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio	106 dB (Line, IHF-A)
Speaker Impedance	6 ohms–16 ohms
Video Section
Input Sensitivity/Output Level and Impedance	-
Video	1 Vp-p/75 ohms (Component) 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR) 1 Vp-p/75 ohms (Composite)
Component Video Frequency Response	5 Hz–100 MHz, -3dB
Tuner Section
Tuning Frequency Range	-
FM	87.5 MHz–107.9 MHz
AM	530 kHz–1,710 kHz
FM/AM Preset Memory	40 stations
General
Power Supply	AC 120 V, 60 Hz
Power Consumption	6.3A
Standby Power Consumption	0.15W
Dimensions (W x H x D)	17 1/8" x 6 13/16" x 12 15/16" (435 x 173.5 x 328 mm)
Weight	24.3 lbs (11.0 kg)

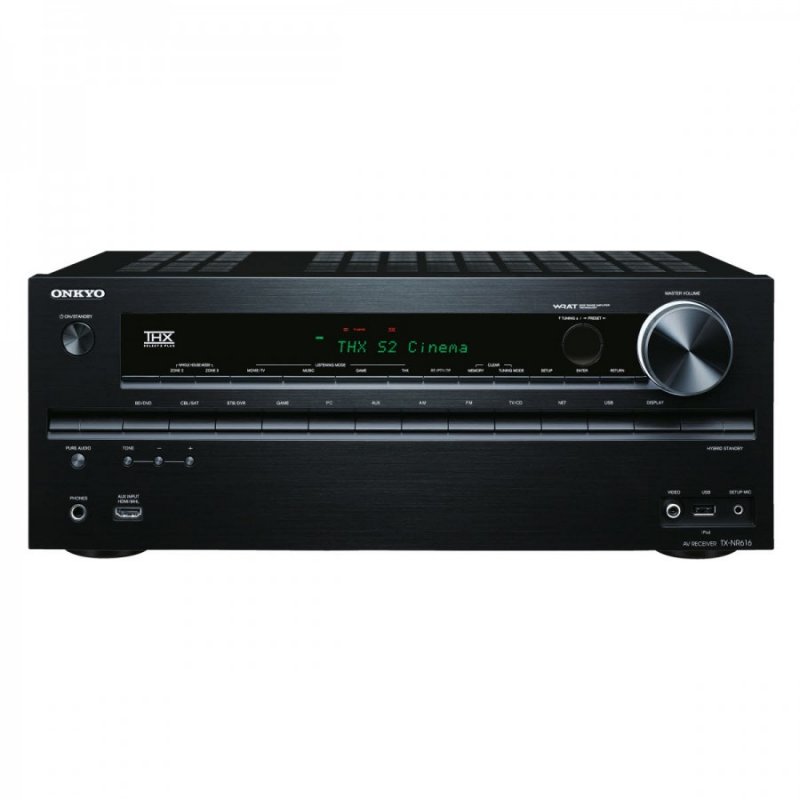

Description image for Onkyo TX-NR616 7.2-Channel Network A/V Receiver

Two-Year Manufacturer's Warranty

This item is features a two-year parts and labor warranty.
