Listen Up If You’re Serious About Home Entertainment

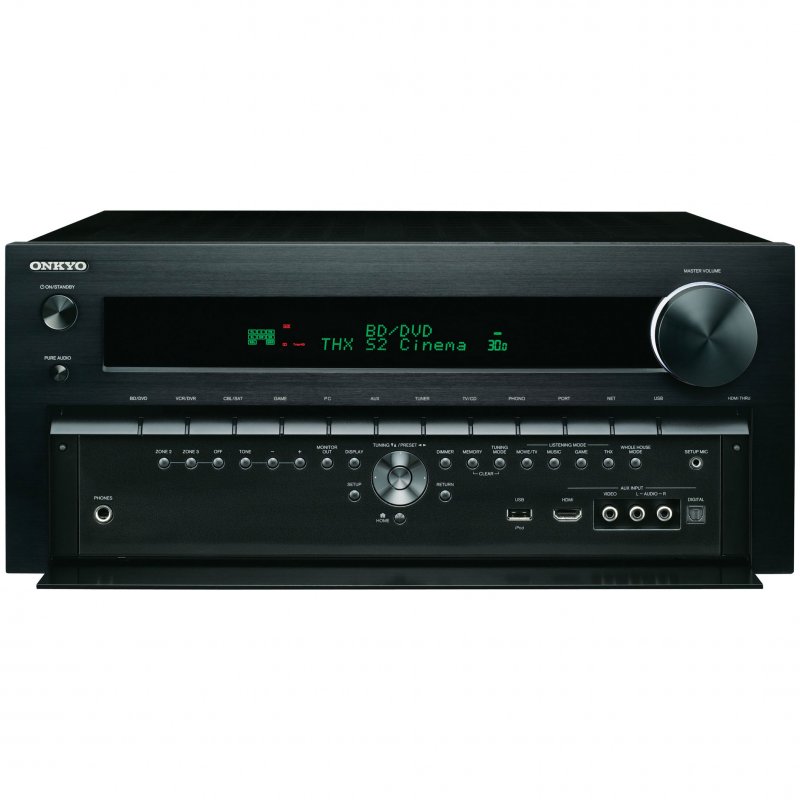

With its advanced processing and fabulous array of connections, the TX-NR809 is ready to lift the roof off. Eight HDMI® inputs handle all your high-def content, from master-quality audio to upscaled 4K video. Home network capability lets you bring streaming internet radio and PC audio to your living room. And the drop-down front panel conceals a plethora of one-touch audio controls and A/V inputs. Video—whether standard or high definition—gets the royal treatment from a high-quality HQV® Vida™ processor and independent ISF calibration for each source. Advanced audio options include bi-amping, 7.2 multichannel pre-outs, and distributed multi-zone audio. As you’d expect from a receiver near the top of Onkyo’s mid-range line-up, construction is first-rate. A massive transformer, symmetrical L/R channels, separate power and pre-amp blocks, and a highly rigid chassis provide the bedrock for a superlative audio performance. Built with the serious home theater fan in mind, the TX-NR809 offers a class-leading mix of power, features, and performance.
Special Features
- HDMI Support for 3D Video and Audio Return Channel
- High-Quality HQV® Vida™ VHD1900 Video Processor
- Marvell Qdeo™ Video Chip for 4K Upscaling and Processing
- ISF (Imaging Science Foundation) Video Calibration for Optimal
Video Performance
- Network Capability Delivers Internet Radio and Network Streaming
- THX® Select2 Plus™ Certified
- Direct Digital Connection of iPod/iPhone via Front-Panel USB Port
- Audyssey MultEQ® XT Advanced Room-correction and Speaker Calibration
- Audyssey DSX™ and Dolby® Pro Logic® IIz Add New Dimensions to Surround Sound
Amplifier Section |
|
| Power Output | - |
| Front L/R | 135 W + 135 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC) 160 W + 160 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC) |
| Center | 135 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC) 160 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC) |
| Surround L/R | 135 W + 135 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC) 160 W + 160 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC) |
| Surround Back L/R | 135 W + 135 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC) 160 W + 160 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC) |
| Dynamic Power | 300 W (3 ohms, 1 ch) 250 W (4 ohms, 1 ch) 150 W (8 ohms, 1 ch) |
| THD (Total Harmonic Distortion) | 0.08% (20 Hz-20 kHz, Half power) |
| Damping Factor | 60 (Front, 1 kHz, 8 ohms) |
| Input Sensitivity and Impedance | 200 mV/47 k-ohms (Line) 2.5mV/47 k-ohms (Phono MM) |
| Rated RCA Output Level and Impedance | 200 mV/2.2 k-ohms (Pre out) |
| Maximum RCA Output Level and Impedance | 4.6 V/470 ohms (Pre out) |
| Phono Overload | 70 mV (MM, 1 kHz, 0.5%) |
| Frequency Response | 5 Hz-100 kHz/+1 dB, -3 dB (Direct Mode) |
| Tone Control | ±10 dB, 50 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-Noise Ratio | 110 dB (Line, IHF-A) 80 dB (Phono MM, IHF-A) |
| Speaker Impedance | 4 ohms–16 ohms or 6 ohms-16 ohms |
Video Section |
|
| Input Sensitivity/Output Level and Impedance | - |
| Video | 1 Vp-p/75 ohms (Component) 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR) 1 Vp-p/75 ohms (Composite) |
| Component Video Frequency Response | 5 Hz–100 MHz, -3dB |
Tuner Section |
|
| Tuning Frequency Range | - |
| FM | 87.5 MHz–107.9 MHz |
| AM | 530 kHz–1,710 kHz |
| FM/AM Preset Memory | 40 stations |
General |
|
| Power Supply | AC 120 V~, 60 Hz |
| Power Consumption | 7.5 A |
| Dimensions (W x H x D) | 17 1/8" x 7 13/16" x 17 1/8" (435 x 198.5 x 435.5 mm) |
| Weight | 40.3 lbs (18.3 kg) |
Two-Year Parts and Labor by Onkyo Canada
electronicsforless.ca is s registered dealer for Onkyo Canada. | electronicsforless.ca is a certified Onkyo Canada dealer |
*XM requires separate purchase of XM Mini Tuner and Home Dock.SIRIUS requires separate purchase of subscription,compatible tuner and antenna.
Product Details
- Onkyo TX-NR809
-
Brand New : Factory Sealed
- UPC : 751398010088
- EFLC : 2443
