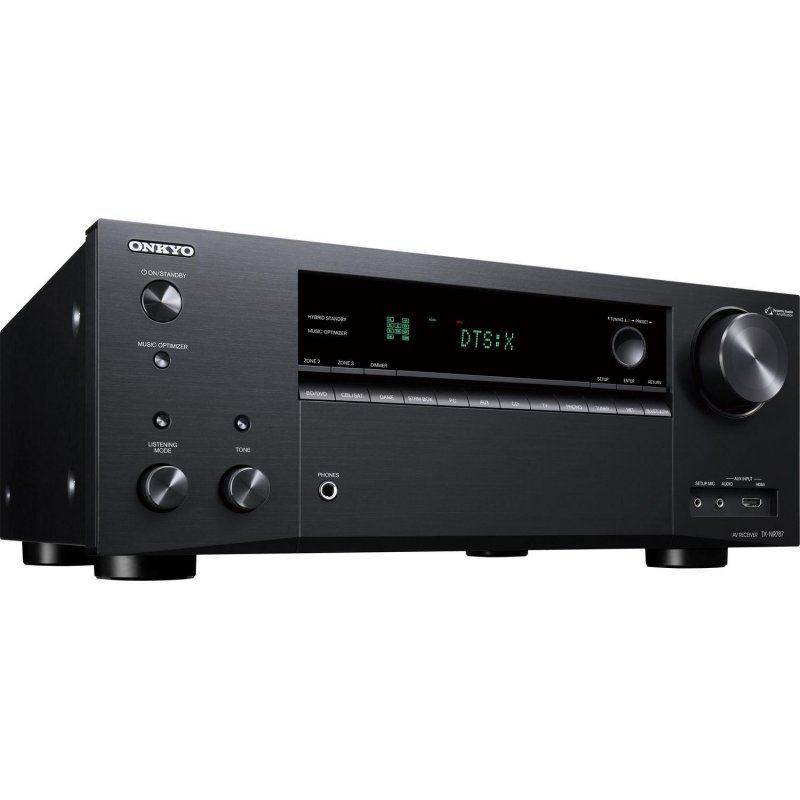

With nine channels of high-current amplification, the TX-NR787 fully unlocks DTS:X® and Dolby Atmos® movie soundtracks with a 5.2.4-channel speaker layout at THX® Certified Select™ theater-reference volume. Alternatively, you can also use the extra channels to drive speakers in Zone 2 and Zone 3. Dual-band Wi-Fi® links the receiver to your desired multi-room platform via DTS Play-Fi® technology, FlareConnect™, or Chromecast built-in that also works with the Google Assistant. AirPlay and Bluetooth® wireless technologies are built in, and onboard streaming services include Amazon Music, TIDAL, Spotify, and TuneIn. Future-ready, the receiver has HDMI® supporting 4K/60p, BT.2020, HDR10, Dolby Vision™, and HLG video pass-through. This muscular A/V hub waits to enrich your entertainment life.

Features

• THX® Certified Select™ Reference Sound
• 100 W/Ch (8 Ohms), 220 W/Ch (6 Ohms)
• 5.2.4 or 7.2.2-Ch Dolby Atmos® & DTS:X®
• HDMI® 7 In (1 front) / Main Out and Sub Out
• 4K/60 Hz, HDR10, HLG, Dolby Vision™, BT.2020, and HDCP 2.2
• Powered Zone 2/3 Speaker Outputs and Zone 2 Line Output
• Chromecast built-in and Works with the Google Assistant
• 384 kHz/32-bit DAC and VLSC™ Filtering for Superior Clarity
• Amazon Music, Spotify®, TIDAL, Deezer, Pandora®, and TuneIn

Amplifier

• # Channels : 9.2
• Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC) : 100 Watts, 0.08% THD
• Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven) : 220 Watts, 10% THD
• Dynamic Audio Amplification : YES (for Clear and Realistic Sound)
• H.C.P.S. (High Current Power Supply) : YES
• Non-Phase Shift Amplifier : YES
• THX Certified : YES
• Continuous 6 Ohms Rated : YES
• Certified 4 Ohms Performance : YES
• Discrete Output Stage Circuitry : YES
• Amplifier Design : Linear Class A/B
• Independent Block Construction (Amp/Preprocessor) : NA
• Independent Power Supply : NA
• Bi-amp Capability For Front : YES

Processing

• Dolby Atmos : YES
• 32-Bit Digital Signal Processing Engine : YES
• Dolby Decoder : Dolby Atmos, True HD, Dolby Surround
• DTS:X : YES
• DTS Decoder : DTS:X, DTS-HD Master Audio, Neural:X
• ONKYO GAME Surround Modes : YES (Rock, Sports, Action, RPG)
• VLSC for Noiseless Audio Processing : YES (Fronts)
• THX Processing Mode : YES
• CinemaFILTER : NA
• AccuEQ Room Calibration : YES (w/ AccuReflex)
• Phase-Matching Bass Boost : YES
• Direct/Pure Mode : YES / NA
• Pure Direct Analog Path Mode : NA
• Advanced Music Optimizer : YES
• 384K/32 Bit DACs : YES
• 192K/24 Bit DACs : NA

Connectivity

• Analog Audio IN : 6
• Phono Input : YES
• Digital Audio IN (OPT/COAX) : 2 / 1
• Composite Video I/O : 2 / 0
• Component Video I/O : 2 / 0
• Front Panel HDMI : YES
• Front-Panel A/V : 1 (Analog)
• USB Input : YES (Rear)
• HDMI I/O : 7 / 2 (Main/Sub)
• HDMI 4K/60 Hz- Capable HDMI Terminals : YES
• HDCP 2.2 Copy-Protection Compatibility : YES
• HDMI Support for High Dynamic Range : YES
• HDMI Support for 3D, Audio Return Channel and CEC : YES
• Dolby Vision, HDR10, HLG, BT.2020 Support : YES
• HDMI Support for Deep Color, x.v.Color, LipSync : YES
• HDMI Support for DVD-Audio, SACD, Multichannel PCM : YES
• Analog To HDMI Upconversion : YES
• 4K Passthrough : YES
• Analog Pre-Outs : Subwoofer (x2)
• Speaker A/+B : NA
• Powered Zone 2 : YES
• Powered Zone 3 : YES
• Zone 2 Line Out : YES
• Zone 2 Video Out : NA
• Zone 2 Digital to Analog Audio Conversion : YES (Net/SPDIF)
• Zone 3 Digital to Analog Audio Conversion : YES (Net)
• Zone 3 Line Out : NA
• Whole House Mode : NA
• FireConnect Multi-room Audio : YES
• Airplay : YES
• Chromecast built-in support : YES
• Supports Onkyo Remote App : YES
• Internet Radio Capable : YES (TuneIn)
• Spotify Connect Support : YES
• Tidal : YES
• Amazon Music : YES (accessible via Onkyo Music Control app)
• Streaming Audio From PC / Network : YES
• Hi-Res Streaming Audio Formats : YES
• Streaming Audio From USB memory : YES
• Wireless Network : IEEE 802.11 a/b/g/n 5 Ghz / 2.4 Ghz
• Bluetooth : YES (Built-in)

Integration Access

• RS-232 : YES
• IR Input : YES
• IR Output : NA
• Ethernet : YES
• ONKYO-RI System Control : NA
• RIHD (Remote Interactive Over HDMI) : YES
• 12V Trigger : YES

Miscellaneous

• Pre-Programmed Remote : NA
• Hybrid Standby Function : YES
• Smart Grid-Ready : YES
• Auto Speaker Calibration W/Mic. : AccuEQ w/ AccuReflex
• OSD Out : YES
• Solid Aluminum Front : NA
• Transparent High-Grade Speaker Terminals : NA
• Detachable AC Cord : YES
• Warranty : 2 YEARS

Amplifier Section

• Power Output
• All Channels : 100 W/Ch (8 Ohms, 20 Hz–20 kHz, 0.08% THD, 2 Channels Driven, FTC)
  220 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven)
• Dynamic Power : 250 W (3 Ohms, Front)
  220 W (4 Ohms, Front)
  130 W (8 Ohms, Front)
• THD+N (Total Harmonic Distortion + Noise) : 0.08% (20 Hz–20 kHz, Half Power)
• Damping Factor : NA
• Input Sensitivity and Impedance : 200 mV/47 k-ohms (Line/Unbalanced)
  3.5 mV/47 k-ohms (Phono/MM)
• Rated RCA Output Level and Impedance : 200 mV/2.3 k-ohms (Zone 2 Line Out)
  1 V/470 ohms (Subwoofer Pre Out)
• Maximum RCA Output Level and Impedance : NA
• Phono Overload : 70 mV (MM, 1 kHz, 0.5%)
• Frequency Response : 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
• Tone Control : ±10 dB, 20 Hz (Bass)
  ±10 dB, 20 kHz (Treble)
• Signal-to-Noise Ratio : 106 dB (Line, IHF-A)
  80 dB (Phono, IHF-A)
• Speaker Impedance : 4 ohms–16 ohms

Video Section

• Input Sensitivity/Output Level and Impedance : NA
• Video : 1.0 Vp–p/75 Ohms (Component Y)
  0.7 Vp–p/75 Ohms (Component PB/CB, PR/CR)
  1.0 Vp–p/75 Ohms (Composite)
• Component Video Frequency Response : +0 dB, -3 dB

Tuner Section

• Tuning Frequency Range
  • FM : 87.5 MHz–1070.9 MHz
  • AM : 530 kHz–1,710 kHz
  • FM/AM Preset Memory : 40 stations
• General
  • Power Supply : AC 120 V~, 60 Hz
  • Power Consumption : 750 W
  • No-Sound Power Consumption : 70 W
  • Standby Power Consumption : 0.15 W
  • Dimensions (W x H x D) : 17 1/8" x 6 13/16" x 14 15/16" (435 x 173.5 x 379.5 mm)
  • Weight : 23.8 lbs (10.8 kg)
• Carton
  • Dimensions (W x H x D) : 22 7/16" x 11 5/16" x 18 7/16"
    (570 x 288 x 468 mm)
  • Weight : 29.8 lbs (13.5 kg)
  • UPC Code >(B) : 889951001348
