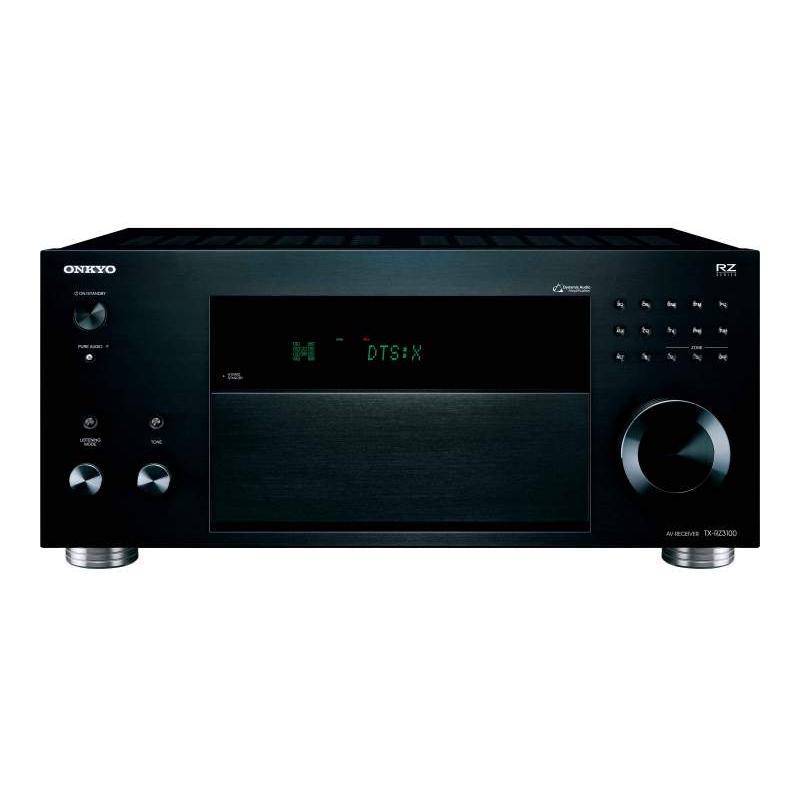

11.2-Channel Network A/V Receiver

For Multidimensional Sound Without Compromise

Our flagship receiver's fathomless pool of high-current power and instantaneous full-scale dynamics make it the ultimate driving force for 7.2.4-channel home-cinema layouts with floorstanding speakers, dual subwoofers, and in-ceiling height speakers. Sound quality is accurate, lush, and exuberant, capable of transporting your audience out of this world and into the one created by the film's director. As well as completely transforming the cinematic and stereo-listening experience, the TX-RZ3100 serves entertainment seamlessly across the home, with wired or wireless multi-zone digital/analog audio, Zone 2 UltraHD HDMI®, and a suite casting technologies to share app-based audio to the home cinema and beyond. Designed for easy custom home integration, the TX-RZ3100 is crafted with passion for the passionate home cinema enthusiast. Requires optional FireConnect™-compatible speakers sold separately.

Advanced

• THX® Select2™ Plus Cinema-Reference Audio Performance
• 7.2.4-channel DTS:X™ and Dolby Atmos® Object-based Audio Decoding
• DTS Neural:X™ Upmixes Standard 5.1 and 7.1 formats to 3D Sound
• HDMI Supports 4K/60 Hz, High Dynamic Range, 4:4:4 Color Space, and HDCP 2.2-protected Video1
• Google Cast2, AirPlay®, Wi-Fi®, Bluetooth®3, TuneIn Radio, Pandora®, Spotify, TIDAL2, and Deezer2 for App-based Audio Streaming4
• Network/USB Audio (DSD 11.2 MHz [Stereo], 192/24 PCM, Dolby® TrueHD, FLAC, WAV, ALAC, AAC, MP3, WMA)
• Powered Zone 2 and Powered Zone 3 Outputs for Multi-room Analog and Digital (HDMI/Network/OPT/COAX) Audio with Independent Volume/Tone
Controls
• Whole House Mode Function
• AccuEQ Calibration with AccuReflex for Seamless Object-based, Multichannel, and Stereo Sound (Setup Mic Included)
• FireConnect™2 Wireless Multi-room Digital/Analog Audio Distribution to Compatible Speakers (Sold Separately)
• 11.2 Multichannel Pre-Outs for User Setup Customization
• Quality Banana-plug Speaker Posts with Transparent Knobs
• Remote App for iPhone/iPod touch5 and Android™ Devices6

Amplifier

• 200 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC) 340 W/Ch (6 Ω, 1 kHz, 10% THD, 1 Channel Driven, JEITA)
• Onkyo High-Current Digital Amplification for Smooth Low-Distortion Power
• Customized High-Output Transformer, Custom Audio-Grade Capacitors, Separate Transformer for Standby
• Separated Digital and Analog Circuitry to Reduce Interference
• Extruded Metal Heat Sink with Polycarbonate Cooling Fan
• Optimum Gain Volume Circuitry
• VLSC™ (Vector Linear Shaping Circuitry) Noise-free Signal Processing for All Channels
• PLL (Phase Locked Loop) Jitter-Cleaning Circuitry for S/PDIF Audio

Processing

• HDMI Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos®, Dolby® TrueHD, Dolby® Digital Plus, Dolby® Surround, DTS:X™, DTS-HD Master Audio™, DTS 96/24, DTS-ES, DTS Express, DTS Neural:X™, THX® Cinema/Music/Game, DVD-Audio, Super Audio CD,
• Multichannel PCM, and CEC
• Dolby Atmos®, DTS:X™, Dolby® TrueHD, and DTS-HD Master Audio™ Decoding
• Separate 384 kHz/32-bit AK4490 Stereo DAC (Front L/R), 2 x 768 kHz/32-bit AK4458 Multichannel DACs (Surround Channels)
• Discrete 192 kHz/24-bit AK4388 Stereo DACs (x 2) for Zone 2 and Zone 3
• Multiple 32-bit Digital Signal Processing Engines
• 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
• Theater-Dimensional Virtual Surround Function
• Direct Mode and Pure Audio Mode

Connection

• 8 HDMI Inputs (1 Front/7 Rear), Main, and Zone 2 Outputs
• Component Video Switching (2 Inputs and 1 Output) and 2 Composite Video Inputs
• 5 Digital Audio Inputs (3 Optical and 2 Coaxial) and 7 Analog Audio Inputs
• Phono Input (MM) for Turntable Connection
• Mass Storage Class USB Memory Playback Capability (Rear Input)
• Zone 2 and Zone 3 Powered Speaker Outputs
• 11.2 Multichannel Pre-Outs and Zone 2/3 Pre-/Line Outs
• Dual Subwoofer Pre-Outs
• 12 V Trigger Out (Assignable) with IR Input; Supports IP and RS232
• 6.3 mm Headphone Input

Other

• Tone Controls (Bass/Treble) ±10 dB for All Channels
• Independent Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
• A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
• New Graphical Overlaid On-Screen Display (OSD) via HDMI with Quick Setup Function
• Hybrid Standby Function with HDMI Passthrough
• 40 FM/AM and 40 Internet Radio Station Presets
• RIHD (Remote Interactive Over HDMI) for System Control
• Aluminum Front Panel and Volume Control Knob
• Simple Remote Control

What is in the box

• Main unit
• Remote controller (RC-926R) x 1, Batteries (AA/R6) x 2
• Indoor FM antenna x 1
• AM loop antenna x 1
• Speaker setup microphone x 1
• Power cord x 1
