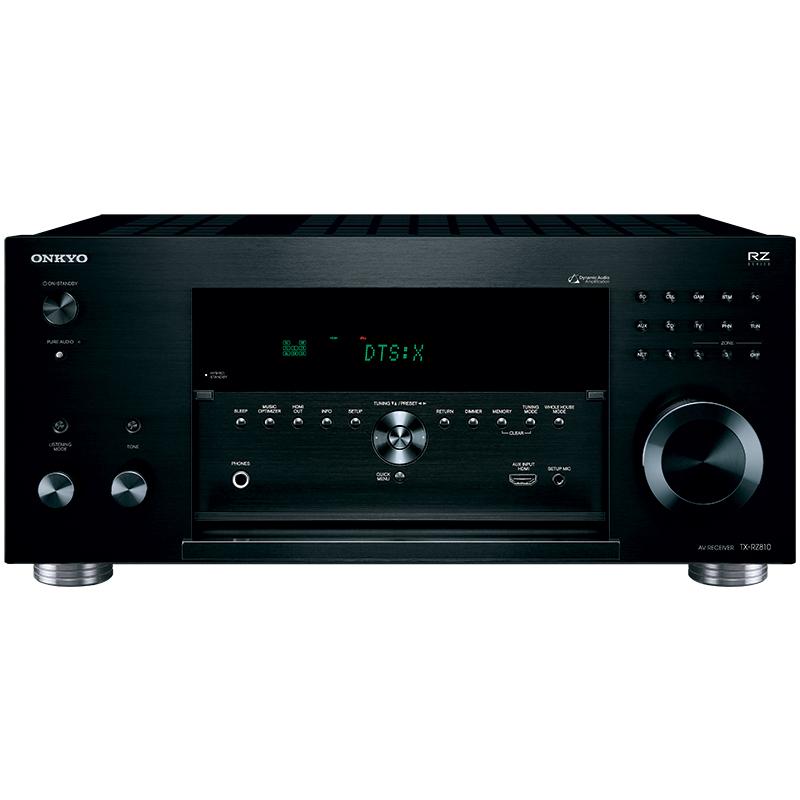

7.2-Channel Network A/V Receiver

A Receiver to Make Dreams a Reality

If you're dreaming of the high-end but are stuck on a mid-level budget, here's your solution. Painstakingly engineered for immensely powerful yet controlled THX® Cinema Reference sound, the TX-RZ810 also comes with features you really want, such as Google Cast™, AirPlay, Wi-Fi®, and Bluetooth. Add an optional Onkyo speaker and mirror whatever's playing on the home cinema in another room via FireConnect™ technology, without cables and using our app to control playback, or enjoy different sources in different zones with Powered Zone 2 outputs and Zone 3 line outputs. Zone 2 HDMI® shares 6G video on a second display, making the TX-RZ810 not only a wall-shaking movie-room powerhouse, but also a hub for housewide entertainment. Boasting a similar 5 Hz-capable audiophile build as our flagships—separate analog/digital circuitry, massive transformer, huge capacitors, and discrete non-phase-shift amps—the TX-RZ810's sheer agility and dynamism exceeds the highest expectations.

Advanced

• THX® Select2™ Cinema Reference Certification
• DTS:X™ and Dolby Atmos® Object-based Sound Decoding
• 4K/60 Hz-Capable 4:4:4 HDMI® Terminals with HDCP 2.2 and HDR for Next-Generation UltraHD and Full HD Video Content*1
• Google Cast, AirPlay, Wi-Fi®, and Bluetooth Specification Version 4.1
• (Compatible Profile: A2DP v1.2, AVRCP v1.3) with Advanced Music Optimizer
• Powered Zone 2 and Zone 3 Pre/Line Out
• Zone 2 HDMI Output for 4K/60 Hz Video in Another Room
• Supports TuneIn Radio, Pandora®, Spotify, TIDAL, and Deezer*2
• MP3, WMA, WMA Lossless, FLAC, WAV, AAC, and Apple Lossless Playback Over Network and USB
• Network Hi-Res Audio (DSD 5.6 MHz, 192/24 PCM, Dolby® TrueHD)
• Wireless Digital and Analog Audio Transmission to Optional Wireless Speaker via FireConnect™ Technology
• AccuEQ Room Calibration Featuring AccuReflex Technology for Seamless Object-based Sound from Compatible Speakers (Mic Included)
• Supports Free Onkyo Remote Control & Streaming Apps for iPod touch/iPhone*3 and Android™ Devices*4

Processing

• HDMI Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos®, Dolby® TrueHD, DTS:X™, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
• Dolby® TrueHD and DTS-HD Master Audio™ Decoding
• AK4458 384 kHz/32-bit DAC (8 Channels x 1)
• 32-bit Digital Signal Processing Engines
• 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
• Theater-Dimensional Virtual Surround Function
• Direct Mode and Pure Audio Mode

Connection

• 8 HDMI Inputs (1 Front/7 Rear), Main, and Zone 2 Outputs
• Mass Storage Class USB Memory Playback Capability
• 7.2 Multichannel Pre-Outs
• Component Video Switching (2 Inputs) and 2 Composite Video Inputs
• 3 Digital Audio Inputs (2 Optical and 1 Coaxial) and 7 Analog Audio Inputs
• Phono Input (MM) for Turntable Connection
• 2 Parallel Subwoofer Pre-Outs
• 12 V Trigger Out (Assignable) with IR Input, Supports IP and RS232

Other

• Independent Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/180/200 Hz)
• A/V Sync Control (Up to 500 ms in 5 ms Steps at 48 kHz)
• New Graphical Overlaid On-Screen Display (OSD) via HDMI
• Hybrid Standby Function with HDMI Passthrough
• 40 FM/AM and 40 Internet Radio Station Presets
• Certified with DLNA Version 1.5
• RIHD (Remote Interactive Over HDMI) for System Control
• Aluminum Front Panel and Volume Control Knob
• Preprogrammed RI (Remote Interactive) Simple Remote Control

What is in the box

• Main unit
• Remote controller (RC-911R) x 2, Batteries (AAA/R03) x 2
• Indoor FM antenna x 1
• AM loop antenna x 1
• Speaker setup microphone x 1
• Power cord x 1
