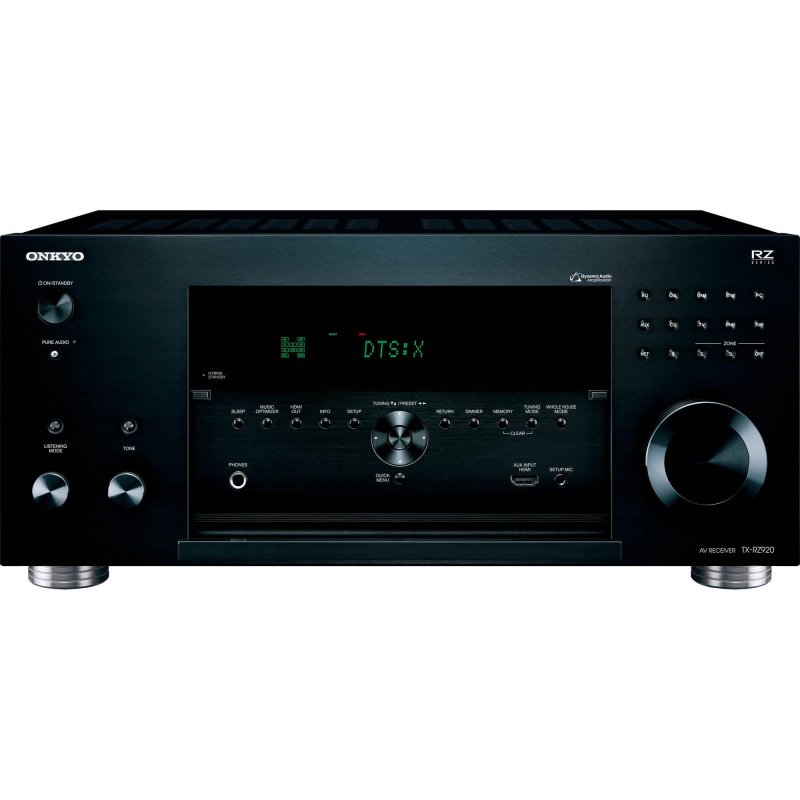

Holographic soundstage. Immense power. Ultimate control. Expect it from the reference-level THX® Certified Select™ TX-RZ920, a 9.2-channel A/V receiver that’s crafted top-to-bottom for complete audio-visual immersion. With custom high-current amplification and state-of-the-art processing that preserves signal integrity from the source, this receiver unlocks superior sound reproduction in your media room and beyond. Connect compatible components or speakers to mirror music over FlareConnect™* and DTS Play-Fi®* platforms, or distribute audio in up to three zones via powered and pre-/line outputs. Extensive connectivity clears the way to 11-channel home theater, phase-calibrated and acoustically balanced for your room, as well as 4K/60p/HDCP 2.2 video pass-through in two rooms. The TX-RZ920 integrates with home automation systems for seamless audio distribution, transforming your lifestyle with easy entertainment everywhere.

Welcome to the RZ Series

Our flagship RZ Series A/V receivers deliver a significant boost to the dynamism, detail, and accuracy of music and movie soundtracks for a listening experience that packs deep emotional impact. The TX-RZ920 features top-quality components and a massive custom transformer to provide high instantaneous current for fast transients and wideband frequency response down to 5 Hz. Discrete non-phase-shift amp circuits clearly focus the audio image and cut distortion even at floor-shaking volumes.

Upmixing Solutions for Legacy Soundtracks

DTS Neural:X™ identifies spatial effects in multichannel soundtracks and upmixes for 3D playback through object-audio-ready speaker systems. Dolby Surround also upmixes legacy sound formats so you can experience multidimensional playback of legacy sound formats in a Dolby Atmos environment.

Customized High-Current Capacitors and Massive Transformer

To supply the current needed to respond instantly to dynamic changes in the signal, Onkyo employs a fully customized massive transformer and huge audio-grade capacitors. Even at high volume, the TX-RZ920 never feels strained or unbalanced by complex musical passages or dynamic movie soundtracks.

THX® Certified Select™ Reference Sound

THX Certified Select guarantees the same high-volume sound you experience at a commercial theater in your home. To gain certification, amplifiers must pass severe bench-tests covering every aspect of audio performance. THX Certified Select components are ideally suited to rooms where the screen-to-seat viewing distance is about 3 meters and the room volume approximately 56 cubic meters.

Unleash Dolby Atmos® and DTS:X® Home Theater

Object-based soundtracks allow independently mixed sound to play through any speaker in your system, moving above and around you with breathtaking realism. The TX-RZ920 reproduces 5.2.4-channel Dolby Atmos or DTS:X formats, with AccuReflex correcting the phase of direct and indirect sounds for cohesive audio imaging with Dolby Atmos-enabled speakers.

Ready for DTS Play-Fi®* Multi-room Audio

DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi® to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android™ smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their own music in their room or group of rooms. DTS Play-Fi lets you easily structure a comprehensive multi-room ecosystem that satisfies virtually any need. For more information, visit www.play-fi.com

* Enabled with a firmware update.

Works with Sonos

Welcome your new A/V receiver into the Sonos Home Sound System family—just pair it with a Sonos Connect and let Onkyo sound join the party. “Works with Sonos” means a product is designed to fit seamlessly into the Sonos ecosystem, and will wake from standby, switch inputs, and commence playback at your desired volume whenever selected from the Sonos app. Just by adding a Sonos Connect, you upgrade the streaming capabilities of your Onkyo home theater, and thanks to RCA and optical/coaxial digital audio outputs, both setup flexibility and sound quality are outstanding. The Sonos app, meanwhile, gathers all your favorite streaming sources into one beautiful interface so you can orchestrate entertainment all over the home. Even guests can join in by installing the Sonos app on their devices.

*Note: Requires a free firmware update. Sonos Connect sold separately (includes RCA cable). Sonos app is available free from App Store or Google Play.

FlareConnect™ Wireless Multi-room Audio

FlareConnect* shares audio from network and external audio input sources between compatible components. Enjoy effortless multi-room playback of LP records, CDs, network music services, and more with supported components and speaker systems. Music selection, speaker grouping, and playback management across the home are built into the Onkyo Controller** app.

* Sharing audio from external inputs is enabled with a firmware update. External audio inputs supporting FlareConnect may differ depending on model. Please consult individual product specification for more information.
** Download free from the App Store or Google Play.

Internet Radio Streaming Support

TuneIn is on board to make selecting from a massive variety of music and radio programs using Onkyo Controller very simple. Save your favorite stations to the receiver’s preset memory for easy recall.

Supports HDR10, HLG, Dolby Vision™, BT.2020, 4K/60 Hz, and HDCP 2.2

Five rear HDMI® inputs (HDMI 1–5), Main Out, and Sub/Zone 2 Out support pass-through of HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision; the BT.2020 4K color standard; 4K/60 Hz video playback; and HDCP 2.2 for premium video content. Front HDMI terminal is ideal for temporary device connections.

Dual-band Wi-Fi, AirPlay, and Bluetooth® Technology

Dual-band 5 GHz/2.4 GHz Wi-Fi assures a stable connection so you can stream over AirPlay and the local network. Bluetooth wireless technology provides quick and simple streaming from your choice of app and device.

Wide Connectivity for Custom Setups

With 11.2-channel pre-outs, 12 V triggers, and IR input, the TX-RZ920 integrates with other components (such as outboard amps) to create a full wired multi-room setup thanks to Powered Zone 2/3 and Zone 2/3 Pre-/Line Outputs governed by Whole Home Audio or a home automation system.

• THX® Certified Select™
• Works with Sonos
• DTS:X
• Dolby Atmos®
• Dolby Vision™
• FlareConnect™ Wireless Multi-room Audio
• DTS Play-Fi® Technology
• TuneIn Radio
• Wi-Fi Certified
• Bluetooth Wireless Streaming Technology
• AirPlay
• Made for iPod/iPhone/iPad
• Dynamic Audio Amplification
• AccuEQ Room Calibration
• 384 kHz/32-Bit Audio DAC
• VLSC (Vector Linear Shaping Circuitry)
• Hi-Res Audio (High-Resolution Audio)
• Onkyo Controller App

SPECIFICATIONS

Amplifier Section

• Power Output
  • All Channels 310 W/Ch (4 Ω, 1 kHz, 10% THD,
  • 1 Channel Driven, JEITA)
• Dynamic Power
  • 320 W (3 Ω, Front)
  • 270 W (4 Ω, Front)
  • 160 W (8 Ω, Front)
• THD+N (Total Harmonic Distortion + Noise)
  • 0.04% (1 kHz, 100 W, 8 Ω)
• Input Sensitivity and Impedance
  • 200 mV/82 kΩ (Line)
  • 3.5 mV/47 kΩ (Phono MM)
• Rated RCA Output Level and Impedance
  • 1 V/330 Ω (Pre Out)
  • 1 V/330 Ω (Subwoofer Pre Out)
  • 200 mV/1.2 kΩ (Zone Line Out)
  • 2 V/1.2 kΩ (Zone Pre Out)
• Phono Overload : 70 mV (MM, 1 kHz, 0.5%)
• Tone Control
  • ±10 dB, 100 Hz (Bass)
  • ±10 dB, 10 kHz (Treble)
• Signal-to-Noise Ratio
  • 107 dB (Line, IHF-A)
  • 90 dB (Phono MM, IHF-A)
• Speaker Impedance 4 Ω–16 Ω

Video Section

• Input Sensitivity/Output Level and Impedance
• Video
  • 1.0 Vp–p/75 Ω (Component Y)
  • 0.7 Vp–p/75 Ω (Component PB/CB, PR/CR)
  • 1.0 Vp–p/75 Ω (Composite)

Tuner Section

• Tuning Frequency Range
  • FM 87.5 MHz–108.0 MHz
  • AM 530 kHz–1,710 kHz
  • 522 kHz–1,611 kHz
• FM/AM Preset Memory 40 Stations

General

• Power Supply AC 220–230 V~, 50/60 Hz
• Power Consumption 310 W
• Standby Power Consumption 0.1 W
• No-Sound Power Consumption 80 W

Dimensions

• Dimensions (W x H x D) 435 x 201 x 453 mm
• Weight 16.6 kg

CARTON

• Dimensions (W x H x D) 565 x 325 x 547 mm
• Weight 19.5 kg

Supplied Accessories

• Power cord
• Indoor FM antenna
• AM loop antenna
• Speaker setup microphone
• Quick Start Guide
• Basic manual
• Remote controller
