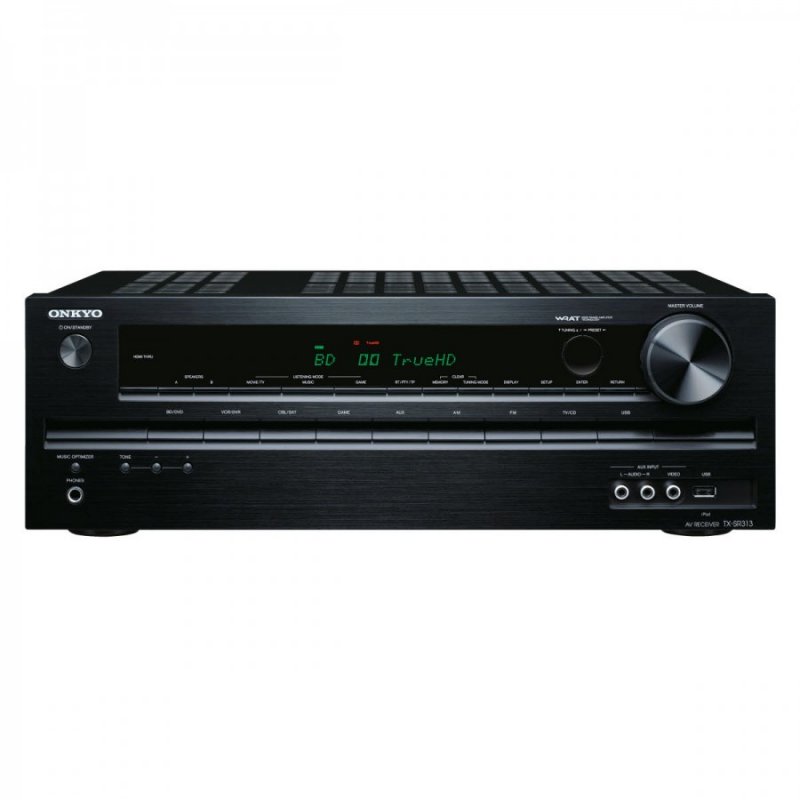

Affordable Home Theater Just Got Better
With the addition of Onkyo’s acclaimed WRAT (Wide Range Amplifier Technology) to its entry-level A/V receivers, home theater fans on a budget can now enjoy greater fidelity than ever before. This 5.1-channel AVR packs an array of features into a compact and stylish cabinet—all designed to perfect audio performance and seamlessly integrate your A/V components into one intelligent and powerful system. Four HDMI® inputs and one output provide connectivity for your 3D TV, gaming consoles, and BD player, while a USB port offers a clean digital link to your iPod®/iPhone® or flash memory drive. An HDMI-linked interactive on-screen display makes set-up and mid-program adjustment easy. Naturally, the AVR decodes a range of high-definition codecs such as Dolby® TrueHD and DTS-HD Master Audio™. But it’s the sound that really sets Onkyo apart, and you can rest assured that with the TX-SR313, you’re getting the precision build, power, and fidelity that you might expect from a more expensive component.
Special Feature
- Four1080p capable HDMI inputs (V1.4a)
- 4 DSP Gaming Modes: Rock, Sports, Action, and Role Playing
- New On-sceen display via HDMI
- Burr-Brown DACs for improved jitter and clearer sound
Amplifier |
|
| # Channels | 5.1 |
| Power Watts/Ch | 65 W/Ch (8 Ohms, 20 Hz–20 kHz, 0.7% THD, 2 Channels Driven, FTC) |
| Power (8ohms 20-20kHz 0.05%) /Ch | - |
| THX Certified | - |
| Continuous 6ohms Rated | YES |
| Certified 4ohms performance | - |
| All Discrete Circuitry | YES |
| 3-Stage Inverted Darlington Circuitry | - |
| Dual PUSH-PULL Design | - |
| Independent Block Construction (Amp/Preprocessor) | - |
| Toroidal Transformer | - |
| Independent Power Supply | - |
| Bi-amp Capability For Front | - |
| BTL Capability For Front | - |
Processing |
|
| DOLBY Decoder | True HD, DD Plus |
| DTS Decoder | DTS-HD Master Audio |
| Dolby PLIIz | - |
| ONKYO GAME Surround Modes | YES |
| DTS Surround Sensation Speaker / Headphone | - / - |
| Neural Surround | - |
| THX Processing Mode | - |
| Audyssey Dynamic EQ | - |
| Audyssey Dynamic Volume | - |
| Direct/Pure Mode | YES / - |
| Advanced Music Optimizer | YES |
| 192K/24 Bit DACs | YES (Burr-Brown) |
| VLSC | - |
| isf Certified Calibration Control | - |
Connectivity |
|
| Audio I/O | 6 / 1 |
| Phono Input | - |
| Digital Audio IN (OPT/COAX) | 2 / 1 |
| Digital Audio OUT (OPT/COAX) | - |
| Composite I/O | 5 / 1 |
| S-Video I/O | - |
| Component Video I/O | 2 / 1 |
| Front-Panel A/V | - |
| Front-Panel Optical | - |
| Front-Panel USB Input (made for iPod/iPhone) | YES |
| HDMI I/O | 4 / 1 |
| HDMI Version | V1.4a (supporting 3D video and Audio Return Channel) |
| Component Video Upconversion | - |
| Analog To HDMI UpConversion | - |
| 1080i Upscaling | - |
| 1080p Upscaling | - |
| Multi-Channel Input | - |
| Analog Pre-Outs | Sub |
| Speaker A/+B | YES |
| Powered Zone2 | - |
| Zone 2 Line Out | - |
| Zone 2 Video Out | - |
| Zone 3 Line Out | - |
| U-Port | - |
| iPod Ready | YES (direct USB input) |
| HD Radio Ready | - |
| XM Radio Ready | - |
| SIRIUS Radio Ready | - |
| Internet Radio Capable | - |
| Streaming Audio From PC | - |
| Streaming Audio From USB memory | - |
Integration Access |
|
| RS-232 | - |
| IR Input | - |
| Ethernet | - |
| ONKYO-RI System Control | YES |
| 12V Trigger | - |
Miscellaneous |
|
| Pre-Pro/Learning Remote | - / - |
| Back-Lit Remote | - |
| On Screen Remote Programming | - |
| Bi-directional Remote Setup via GUI | - |
| Activity Based Remote | - |
| Color-Coded Speaker Terminals | YES |
| Auto Speaker Calibration W/Mic. | - |
| OSD Out | YES (basic overlay) |
| Solid Aluminum Front | - |
| Warranty | 2 YEARS |
Amplifier Section |
|
| Power Output* (8 ohm, 20 Hz-20 kHz, FTC) | - |
| Front L/R | 65 W/Ch |
| Center | 65 W |
| Surround L/R | 65 W/Ch |
| Surround Back | - |
| Power Output* (6 ohm, 1 kHz, FTC) | - |
| Front L/R | - |
| Center | - |
| Surround L/R | - |
| Surround Back | - |
| Dynamic Power** (front) | - |
| 3 ohm | 160 |
| 4 ohm | 125 |
| 8 ohm | 85 |
| THD+N (Total Harmonic Distortion + Noise) | 0.08% (20 Hz–20 kHz, Half Power) |
| Damping Factor (1 kHz, 8 ohm) | 60 |
| Input Sensitivity and Impedance | - |
| PHONO MM | - |
| CD and TAPE Play | 200 mV, 47 k ohm |
| Output Level and Impedance | - |
| TAPE REC | 200 mV, 470 ohm |
| PRE OUT | 1.0 V, 470 ohm |
| Frequency Response | 20 Hz-50 kHz |
| S/N Ratio | 100 dB (Line, IHF-A) |
| PHONO (MM) | - |
| CD/TAPE | 100 dB (IHF-A, 0.5 V input) |
| Phono Overload (1 kHz) | - |
| Tone Controls | - |
| BASS | +/- 10 dB at 50 Hz |
| TREBLE | +/- 10 dB at 20 kHz |
Tuner Section |
|
| Usable Sensitivity | - |
| FM Mono | 11.2 dBf, 1.0 uV (75 ohm IHF) |
| FM Stereo | 17.2 dBf, 2.0 uV (75 ohm IHF) |
| AM | 30 uV |
| S/N Ratio | - |
| FM Mono | 76 dB (IHF-A) |
| FM Stereo | 70 dB (IHF-A) |
| AM | 40 dB |
| THD | - |
| FM Mono | 0.2 % |
| FM Stereo | 0.3 % |
| AM | 0.7 % |
| FM Stereo Separation | 45 dB at 1 kHz,30 dB at 100 Hz-10 kHz |
General |
|
| Dimensions (W x H x D) | 17 1/8" x 5 7/8" x 12 1/2" |
| Weight | 16.8 lbs |
One-Year Manufacturer's Warranty
This item is features a one-year parts and labor warranty.Product Details
- Onkyo TX-SR313
-
Brand New : Factory Sealed
- UPC : 751398010637
- EFLC : 2859
