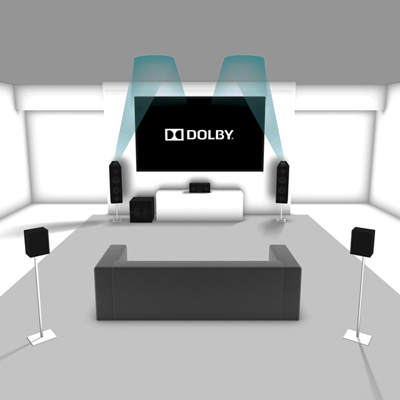

Supports Dolby Atmos® Up to 5.1.2 Channels

With Dolby Atmos, sound comes alive from all directions, including overhead. The format combines a channel-based audio bed with object-oriented sound to place and move specific effects around the room, creating a breathtakingly realistic and captivating sonic atmosphere.

Sound designers and artists are free to mix in a 3D space, steering effects through surround channels and adding a seamless overhead dimension with discrete height channels.

Additionally, a new Dolby surround up-mixer allows for your current channel-based content (that has not been mixed for Dolby Atmos) to be expanded to fill the flexible speaker layouts of a Dolby Atmos system.

HDMI 4 In / 1 Out: Ready for 4K UltraHD

The latest HDMI specification and HDCP 2.2 compatibility support the latest formats and technologies planned for Hollywood content. This latest HDMI spec offers a significant increase in bandwidth (up to 18Gbps) to support new features such as 4K@50/60 (2160p), which is 4 times the clarity of 1080p/60 video resolution, and 4:4:4 color space.

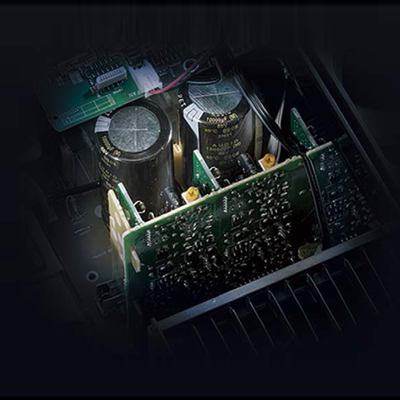

True Power from Discrete Amplifiers

Discrete Amps deliver high instantaneous current to increase speaker control for accurate and dynamic audio reproduction. This precise power is the cornerstone of Onkyo's amplification philosophy.

This gives the TX-SR444 massive power at 115 W/Ch (6 Ohms, 1 kHz, 0.9% THD, 1 Channel Driven, FTC) 65 W/Ch (8 Ohms, 20 Hz-20 kHz, 0.7% 2 Channels Driven, FTC).

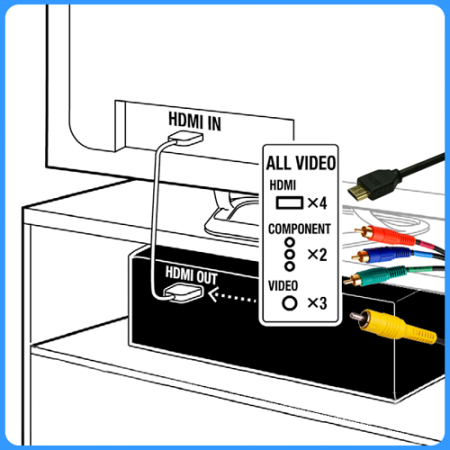

HDMI Video Up-Conversion

Only one wire! Every video input's signal is converted and sent to your TV through one HDMI cable. Easy!

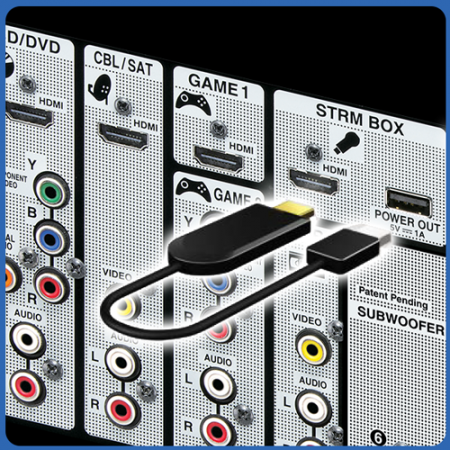

Ready for Streaming Media Devices

The TX-SR444 has a USB port right next to the streaming media player HDMI input to conveniently power the device. Just plug in, log in to your subscription service and enjoy.

Built-In Bluetooth

The TX-SR444 has Bluetooth technology built in. Pair up to ten compatible Bluetooth devices and stream high quality wireless audio using the built-in Bluetooth 2.1. The sound is virtually flawless.

2015 AccuEQ

AccuEQ conducts two measurements- one to set the level, distance and crossover for ALL speakers, including the subwoofer, and a second measurement to eliminate standing waves. Choose to include or bypass EQ measurement for front left and right speakers, and choose to automatically or manually set the EQ. Further, you can save your own manual EQ settings into three available presets.

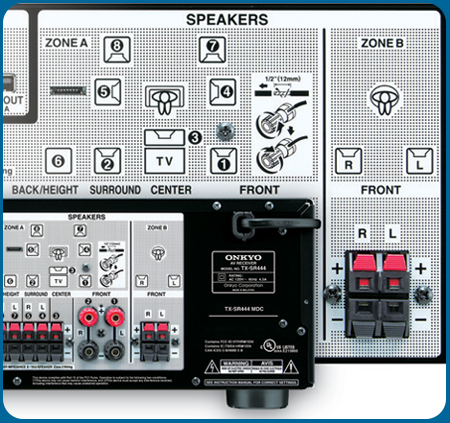

Easy Connection Diagrams

Connections to speakers and external devices are illustrated and clearly labeled on the back panel.

Features:

Amplifier

• # Channels: 7.1
• Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven, FTC): 115, 0.9% THD
• Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC): 65, 0.7% THD
• WRAT (Wide Range Amplifier Technology): Yes
• H.C.P.S (High Current Power Supply): Yes (Massive High Power Transformer)
• THX Certified: -
• Continuous 6 Ohms Rated: Yes
• Certified 4 Ohms Performance: -
• Discrete Output Stage Circuitry: Yes
• 3-Stage Inverted Darlington Circuitry: -
• PUSH-PULL Design: -
• Independent Block Construction (Amp/Preprocessor): -
• High-Grade Toroidal Transformer: -
• Independent Power Supply: Yes (x2)
• Bi-amp Capability For Front: -

Processing

• Dolby Atmos: Yes
• 32-Bit Digital Signal Processing Engine: Yes
• Dolby Decoder: Atmos, True HD, DD Plus
• DTS X: -
• DTS Decoder: DTS-HD Master Audio
• ONKYO GAME Surround Modes: Yes (Rock, Sports, Action, RPG)
• VLSC for Noiseless Audio Processing: -
• THX Processing Mode: -
• AccuEQ Room Calibration: Yes (Advanced)
• Phase-Matching Bass Boost: Yes (for Deep Bass and Clear Mid-Range)
• Direct/Pure Mode: - / Yes
• Pure Direct Analog Path Mode: -
• Advanced Music Optimizer: Yes (Bluetooth Included)
• 384K/32 Bit DACs: -
• 192K/32 Bit DACs: -
• 192K/24 Bit DACs: Yes (Burr-Brown)
• isf Certified Calibration Control: -

Connectivity

• Audio I/O: 7 / 0
• Phono Input: -
• Digital Audio IN (OPT/COAX): 2 / 1
• Composite Video I/O: 3 / 0
• Component Video I/O: 2 / 0
• Front Panel HDMI: -
• Front-Panel A/V: L / R / V
• Front-Panel Optical: -
• USB Input: Yes (Rear)
• HDMI I/O: 4 / 1
• HDMI 4K/60 Hz- Capable HDMI Terminals: Yes
• HDCP 2.2 Copy-Protection Compatibility: Yes
• HDMI Support for High Dynamic Range: -
• HDMI Support for 3D, Audio Return Channel and CEC: Yes
• HDMI Support for Deep Color, x.v.Color, LipSync: Yes
• HDMI Support for DVD-Audio, SACD, Multichannel PCM: Yes
• InstaPrevue Input Source Prevue: -
• MHL for Mobile Device Connection: -
• Composite to Component Video Upconversion: -
• Analog To HDMI Upconversion: Yes (from 480i/576i)
• 1080p Upscaling: -
• 4K (up to 4096 x 2160) Upscaling: -
• 4K Passthrough: Yes
• Analog Pre-Outs: Subwoofer
• XLR Pre-outs: -
• 18mm Pitch High Grade Pre-outs: -
• Speaker A/+B: Yes (Zone B)
• Powered Zone 2: -
• Powered Zone 3: -
• Zone 2 Line Out: -
• Zone 2 Video Out: -
• Zone 2 Digital to Analog Audio Conversion: -
• Zone 3 Line Out: -
• Whole House Mode: -
• Made for iPod, iPhone, iPad: -
• Airplay: -
• Supports Onkyo Remote App: -
• Internet Radio Capable: -
• Spotify Connect Support: -
• Streaming Audio From PC / Network: -
• Hi-Res Streaming Audio Formats: -
• Streaming Audio From USB memory: Yes
• Wireless Network: -
• Bluetooth: Yes (Built-in)
• PC Input (15 pin D-sub): -

Integration Access

• RS-232: -
• IR Input: -
• IR Output: -
• Ethernet: -
• ONKYO-RI System Control: Yes
• RIHD (Remote Interactive Over HDMI): Yes
• 12V Trigger: -

Miscellaneous

• Pre-Pro/Learning Remote: - / Yes
• On Screen Remote Programming: -
• Hybrid Standby Function: -
• Smart Grid-Ready: Yes
• Auto Speaker Calibration W/Mic.: Yes
• OSD Out: Yes
• Solid Aluminum Front: -
• Transparent High-Grade Speaker Terminals: -
• Detachable AC Cord: -
• Warranty: 2 YEARS

Specifications:

Amplifier Section

• All Channels: 115w (1kHz, 0.9%THD, 6 Ohms, 1ch driven, FTC), 65w (20-20kHz, 0.7%, 8 Ohms, 2ch driven, FTC)
• Dynamic Power: 160 W (3 Ohms, Front), 125 W (4 Ohms, Front), 85 W (8 Ohms, Front)
• THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz-20 kHz, Half Power)
• Damping Factor: 0ver 40 (Front, 1 kHz, 8 Ohms)
• Input Sensitivity and Impedance: 200 mV/47 k-ohms (Line)
• Rated RCA Output Level and Impedance: 1V/470 Ohms (Subwoofer Pre Out)
• Maximum RCA Output Level and Impedance: -
• Phono Overload: -
• Frequency Response: 10 Hz-100 kHz/+1 dB, -3 dB (Direct Mode)
• Tone Control: ±10 dB, 20 Hz (Bass), ±10 dB, 20 kHz (Treble)
• Signal-to-Noise Ratio: 100 dB (Line, IHF-A)
• Speaker Impedance: 6 Ohms-16 Ohms

Video Section

• Input Sensitivity/Output Level and Impedance: -
• Video: 1.0 Vp-p/75 Ohms (Component Y), 0.7 Vp-p/75 Ohms (Component PB/CB, PR/CR), 1.0 Vp-p/75 Ohms (Composite)
• Component Video Frequency Response: 5 Hz-13.5 MHz/+0 dB, -3 dB

Tuner Section

• FM: 87.5 MHz-107.9 MHz
• AM: 530 kHz-1,710 kHz
• FM/AM Preset Memory: 40 stations

General

• Power Supply: AC 120 V~, 60 Hz
• Power Consumption: 4.3 A
• No-Sound Power Consumption: 55 W
• Standby Power Consumption: 0.15 W
• Dimensions (W x H x D): 17 1/8" x 6 5/16" x 12 15/18" (435 x 160 x 328 mm)
• Weight: 17.2 lbs (7.8 kg)

Carton

• Dimensions (W x H x D): 21 1/8" x 10 7/16" x 16 3/8" (537 x 265 x 416 mm)
• Weight: 23.1 lbs (10.5 kg)
