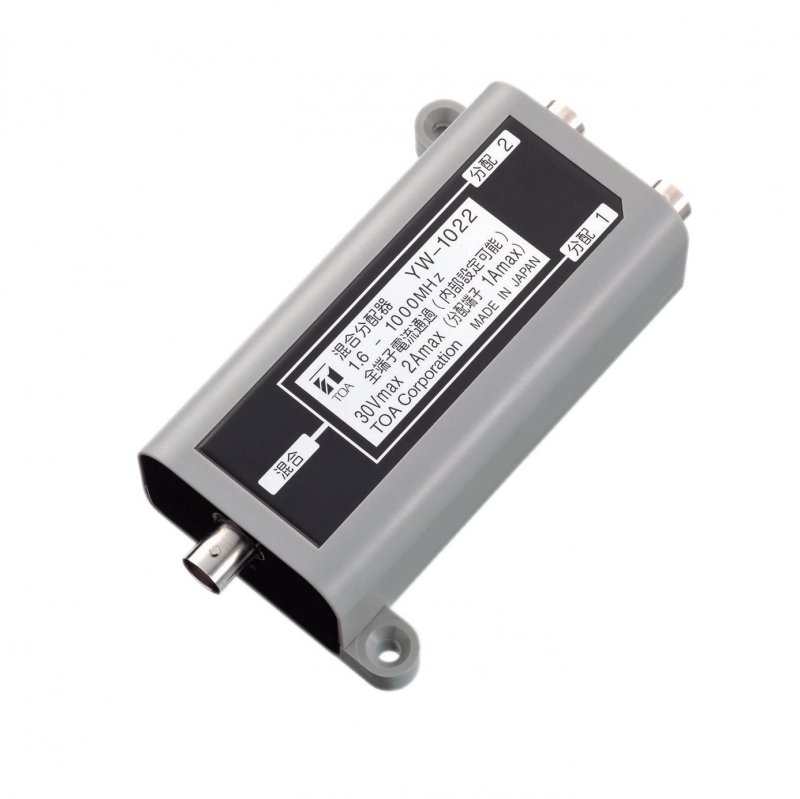

Distributor
The YW-1022 is a distributor that can work in the frequency range of 1.6 to 1000 MHz ( except 50 to 70 MHz). Power passing type permits easy power supply.
Specifications:
- Frequency Range: 1.6 – 1000 MHz ( excluding 50 – 70 MHz)
- Distribution Loss: 4.5 dB ±3 dB ( between the Mixing and each Distribution terminals)
- Input/Output Impedance: 75 U
- Coaxial Connector: Mixing terminal: BNC jack, power passing type ( 30 V DC or less, 2 A or less), Distribution 1 and 2 terminals: BNC jack, power passing type ( 30 V DC or less, 1 A or less)
- Operating Temperature: –10 °C to +50 °C
- Finish: ABS resin, gray
- Dimensions: 75 (W) x 122 (H) x 34 (D) mm
- Weight: 105 g
- Accessory: Unit fixing wood screw ( 4.1 x 25 ) -.2
Product Details
- TOA YW-1022 Y
-
Brand New : Factory Sealed
