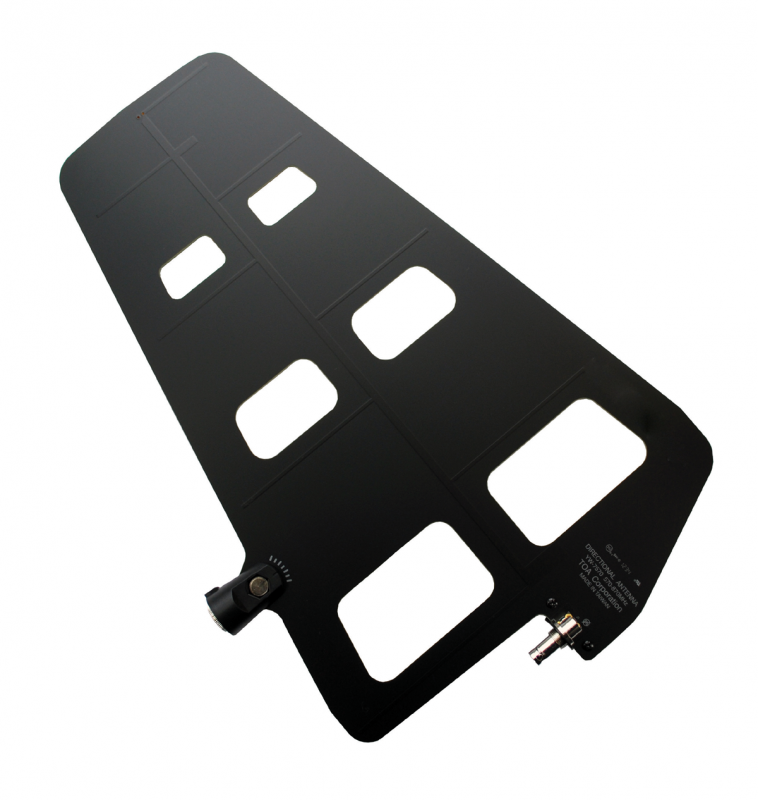

Directional Log Periodic Antenna
The YW-7570 is antenna is for the UHF band wireless system and is designed to be mounted on an optional microphone stand. It is designed for having higher receiving sensitivity in the directional angle compared with an omnidirectional antenna.
- A directional antenna YW-7570 designed for having higher receiving sensitivity in the directional angle compared with an omnidirectional antenna.
Specifications:
- Frequency Range: 570 – 870 MHz
- Type of Antenna: Log-periodic antenna
- Output Impedance: 50 Ω
- Gain: 6 dBi
- VSWR: Under 2.0
- Output Connector: BNC jack
- Finish: FR-4 glass epoxy board, t=2 mm (0.08")
- Mounting Screw: NS5/8 (with adaptor to W3/8)
- Dimensions: 433 (w) x 288 (h) x 31.7 (d)mm (17.05" x 11.34" x 1.25")
- Weigh: 315 g (0.69 lb)
Product Details
- TOA YW-7570
-
Brand New : Factory Sealed
- EFLC : 6462
