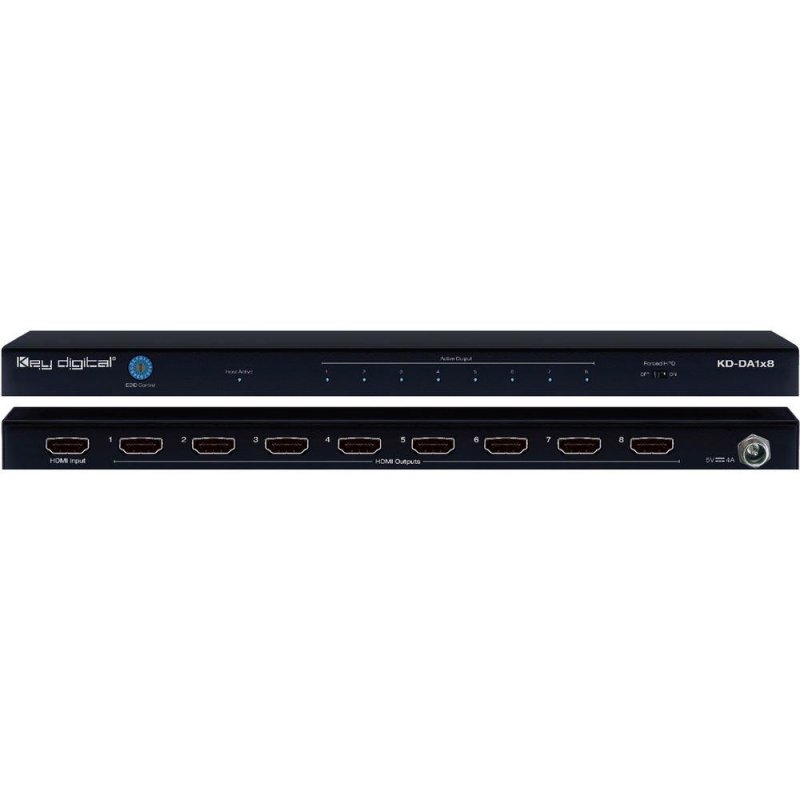

Key Digital KDDA1X8 1x8 4K HDMI Distribution Amplifier
Brand New · Factory Sealed · Key Digital Authorized Dealer
$895.00
Free Canada-wide Shipping
•
Order Now : Ships Mon
end of _buybox_shipping
end of _buybox_core
end of _payments
end of _buybox_couponend of _xwarranty
- Low Stock : Order Soon
- Free shipping
- 1yr Manufacturer Warranty
- Pickup available: Richmond Hill, ON
- 5% Price Promise
Trusted by 150,000+ Canadian customers since 2001
Features:
- Digital Distribution: 1 HDMI Source to 8 HDMI Displays
- Ultra HD/4K Resolution: 4096x2160 or 3840x2160 30Hz at 4:4:4 and 60Hz at 4:4:4
- HDCP Licensing: Compliancy up to HDCP 2.2 and backward compliant
- 18 Gbps Bandwidth: High Speed / Performance for latest HDMI standards
- HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
- 3D Ready: Capability to pass 3D stereoscopic signal formats
- Resolution Support: SD, HD, and VESA up to UHD/4K
- Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
- EDID Control: Internal library with 15 EDID handshakes in addition to native EDID data of output/display 1
- Full Buffer ™ System: Manages TMDS re-clocking / signal re-generation, HDCP source & display authentication, Hot Plug Management and EDID Control handshake
- Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio ™ and Dolby® Atmos
- Deep Color Support: Up to 12 Bit at UHD/4K 24/25/30Hz 4:4:4
- HDMI and HDCP Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI
- I2C Communication: EDID and HDCP buffering from Display to Source
- CEC Disconnect: Prevents all device communication signals via CEC, ARC, and HDMI Ethernet channels
Specifications:
Technical:
- Input: HDMI Connector, Type A, 19 Pin Female
- Output (Each): HDMI Connector, Type A, 19 Pin Female
- Bandwidth: TMDS bandwidth 18 Gb/s
- Deep Color Support: Digital video formats in Deep Color Mode up to 12 bits/color
- DDC Communication: EDID and HDCP Bi-directional buffering from Display to Source
- KD-DA1x8 Power Supply: KD-PS5V4A, 5V/4A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector
General:
- Regulation: CE, RoHS, WEEE
- Enclosure: Black Metal
- Product Dimensions: KD-DA1x8 - 10.75" x 4.01" x 0.67"
- Product Weight: KD-DA1x8 - 1.5 lb
What's in the box:
- Power Supply (qty 1) 5V/4A, 20W, wall type, model KDSP5V4ASC
- Mounting Brackets
Product Details
- Key Digital KDDA1X8
-
Brand New : Factory Sealed
- UPC : 815996020099
- EFLC : 11941
