DAC& AMP Dongle
The donge looks like a tail when transforming
from your phone to the 3.5mm output.
As long as the dongle is compact and
Convenient enough, it will not be considered
to be awkward.
New Design 2021
The TC44B that has been on the market is a DAC & AMP
dongle with only balanced outputs. This 'Eye' has been
extended on the original color scheme, strengthened the
golden joints at the end, and eliminated the screws.
At the same time, the connecting cable* has been
adjusted to be softer.
*The conductor of the connecting cable is made of silver-plated OCC, with an
independent Teflon insulating layer inside, and TPE insulating layer with good
tensile strength at the outermost.
All-New Powertul Decoding Chip
It adopts the ES9281AC PRO from ESS company as the
decoding chip.
Sampling rates: Support up to 32bit/ 768kHz
Native DSD: Support up to DSD512
SNR: ≥118dB
RGB Indicator Light
In addition to indicating the On and Off status*, it can
also identity different sampling rates of files with different
Colors, including red, blue, green, yellow, white, and
magenta.
*The indicator light will flash blue, green and red alternatively after being inserted
to the phone, but it only works when the earphone is plugged in. Ihe indicator light
will be on steady when playing music.
MQA
MQA official certification.
MQA enabled renderer that will complete the final unfold of an MQA file.
The LED glows magenta to indicate that the unit
is rendering an MQA stream or tile.
This delivers the final unfold of the MQA file.
Auto Detect Headphone Impedance
Before use, please insert the earphone to the TC35 Pro
first and then connect it to your phone. In this way,
the device will automatically detect the headphone's
impedance and switch between Low Gain arnd High Gain
modes. For instance, when high impedance is detected,
it will then switch to High Gain mode to output.
Why is it called Eye?
In order to reduce the weight, we made the body into
a waisted arc edge, which looks like an eye on the end,
giving people a feeling of energetic coherence.
Note: The ring in the picture is for photographing reference and is not
included in the product packaging.
Specifications:

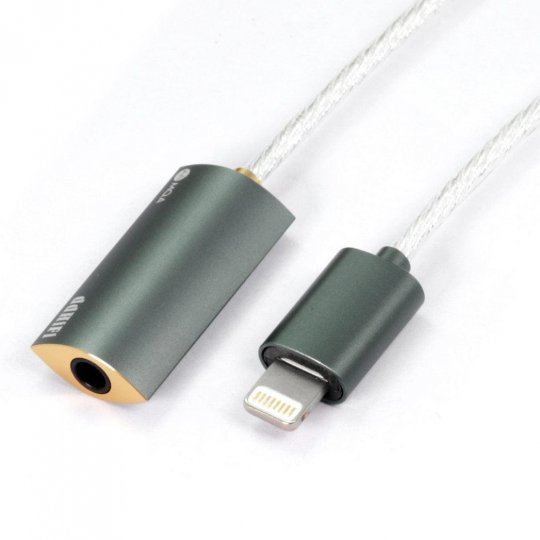

TC35 Pro (Eye): Transform the TypeC or Lightning on your phone to 3.5mm output
DAC Chip: ES9281AC PRO
Jack: 3.5mm (support remote control and microphone* CTIA standard)
Frequency response: 0.032dB@20Hz-40kHz
Output power: ≥30mW (16.); ≥62mW (32); ≥7mW (600Ω)
SNR: ≥118dB
THD+N: 0.0004%
Sampling rates: Supports up to 32bit/768kHz
Native DSD: Supports up to DSD512
Weight: 5.8g
Dimensions (excl. the plug): 30x 14.8x 7mm, cable length 6cm
