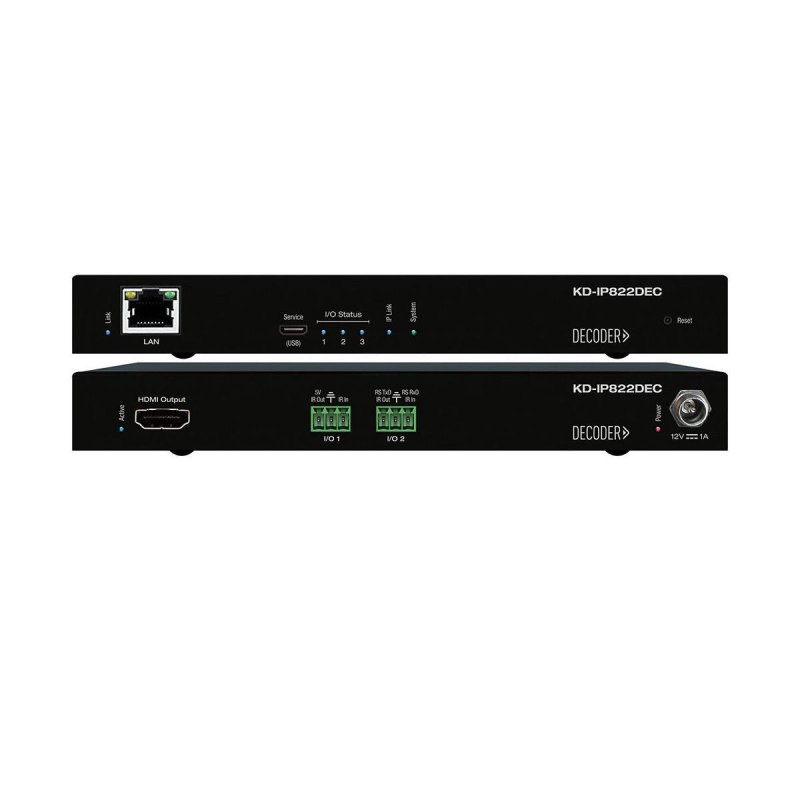

Key Digital KDIP822DEC 4K Enterprise AV Over IP Decoder
Brand New · Factory Sealed · Key Digital Authorized Dealer
$852.99
Free Canada-wide Shipping
•
Ships in 2 to 4 Days
end of _buybox_shipping
end of _buybox_core
end of _payments
end of _buybox_couponend of _xwarranty
- Available
- Free shipping
- 1yr Manufacturer Warranty
- 5% Price Promise
Trusted by 150,000+ Canadian customers since 2001
Key Digital's Enterprise AV over IP solutions create expandable HDMI over IP systems that can be scaled to fit any commercial installation.
Features:
- AV Over IP: Utilizes a managed gigabit network switch to enable video distribution, matrix switching, and extension
- Inter-System Compatibility: Fully compatible with KD-IP922ENC and DEC units / systems
- Video Wall Processing: Encoder + Decoder systems create video walls with up to 16x16, 256 total maximum displays.
- Control: 2 multi-function ports may be used as third-party control interface, Compass Control® Pro master controller, control extension via IP, or callable via KeyCode open API
- Key Digital® App Ready: Network scan & detect populates pre-built GUI including optional image preview, finger drag video wall management, and display control via IR.
- KDMS Pro Ready: PC software for unit & system setup and control UI with clean End-User mode option including optional image preview, mouse-drag video wall management, and display control via IR and PJ Link IP.
- HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
- 4K/Ultra HD Resolution: Support for 4096x2160 or 3840x2160 24/25/30Hz at 4:4:4/8 Bit or 60Hz at 4:2:0/8 Bit (10.2Gbps max bandwidth)
- 4K Down-scale: Incoming 4K resolution can be down-converted to 1080p or 720p at each decoder, enabling monitors to display content at optimal resolution at all times
- HDR (High Dynamic Range): HDR is achieved with AppleTV source at 4K/30 [4:2:2] 12bit deep color, enabling more life-like images through a greater range of liminance levels
- Signal Extension: Up to 330 ft. / 100 m @ 4K 24/25/30(4:4:4)/60(4:2:0) into network switch or or point-to-point
- Power over Ethernet: Does not require power supply when integrated with compatible PoE network switch
- Redundant Power Connection: Added reliability for non-PoE integration. Power supply/li>
- Data Stream Bandwidth: < 900Mbps
- Latency: <40ms at 4K. Less at lower resolution
- Installation: Use KD-SMS16 to cleanly install up to twelve KD-IP822ENC/DEC units in rack
- HDMI® and HDCP Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technology such as 4K/UHD 4:2:0/8bit at 60 f/s
- EDID Control: Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected to Decoder
- Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected input devices
- Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID Control handshake, and Hot Plug control
- IR Sensor: Sensor powering via +5V IR In port collects line-of-sight IR from remote(s) without external IR connecting block
- Up/Down IR: Two channels of IR enable control to/from devices connected to Encoder and Decoder units
- RS-232: Bi-Directional control to/from Encoder and Decoder unit on Phoenix connector
- RS-232/TCP-IP Control Mode: Provides control of unit as well as connectivity status
- Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio ™
- Control System Support: Controllable by all IR, RS-232 & TCP/IP supported control systems via open API: Compass Control® Pro, AMX®, Control4®, Crestron®, KNX®, RTI®, Savant, URC®, Leviton® etc.
Specifications:
General:
- Regulation: CE, RoHS, WEEE, EAC
- Enclosure: Black Metal
- Product (Each): 7.5" x 5.59" x 0.85"
- Weight: 0.7 lbs
Whats in the box:
- Power Supply (qty 1) 12V/1.66A, 20W, desktop type, model KDPS20W12VC
- 6ft USB A to B data cable (qty 1)
- 3-pin phoenix terminal (qty 1)
- IR Sensor (qty 1)
- IR Emitter (qty 1)
- Ear Mount (qty 2)
- Ear Mount Screw (qty 4)
- Operation User Manual (qty 1)
Product Details
- Key Digital KDIP822DEC
-
Brand New : Factory Sealed
- UPC : 815996021508
- EFLC : 12009
