Enterprise AV over IP Solutions

Key Digital's Enterprise AV over IP Encoders and Decoders create expandable HDMI over IP systems that can be scaled to fit any commercial installation.

Features:

• Enterprise AV Over IP: Utilizes a managed gigabit network switch to enable video distribution, matrix switching, and extension
• Video Wall Processing: Encoder + Decoder systems create video walls with up to 16V and 16H monitors
• HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
• 4K/Ultra HD Resolution: Support for 4096x2160 or 3840x2160 24/25/30Hz at 4:4:4/8 Bit or 60Hz at 4:2:0/8 Bit (10.2Gbps max bandwidth)
• 4K Down-Scale: Incoming 4K resolution can be down-converted to 1080p at each decoder, enabling monitors to display content at optimal resolution at all times
• HDR (High Dynamic Range): HDR is achieved with AppleTV source at 4K/30 [4:2:2] 12bit deep color, enabling more life-like images through a greater range of luminance levels
• Signal Extension: Up to 330 ft. / 100 m @ 4K 24/25/30(4:4:4)/60(4:2:0) into network switch or or point-to-point
• Power over Ethernet: Does not require power supply when integrated with compatible PoE network switch
• Dual LAN: Enable system expansion beyond a 48 port system
• Redundant Power Supply: Added reliability for non-PoE integration
• Audio De-Embedding: Audio from the HDMI input is de-embedded through Analog L/R Balanced/Unbalanced phoenix terminal to enable external audio connectivity with audio distribution systems and amplifiers
• Audio Pre-Amp: Volume, muting, 3-band EQ, and lip-sync delay controllable on audio de-embed port
HDMI Pass-Through: Enables connection to local monitor or additional devices up to 75 ft.
• HDMI® and HDCP Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technology such as 4K/UHD 4:2:0/8bit at 60 f/s
• Control: 3 multi-function ports controllable via KeyCode open API, as Compass Control® Pro master controller, or as control extension via IP
• EDID Control: Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected to Decoder
• Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected input devices
• Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID Control handshake, and Hot Plug control
• USB 2.0: Supports synchronous and isochronous connections
• IR Sensor: Sensor powering via +5V IR In port collects line-of-sight IR from remote(s) without external IR connecting block
• Up/Down IR: Two channels of IR enable control to/from devices connected to Encoder and Decoder units
• RS-232: Bi-Directional control to/from Encoder and Decoder unit on Phoenix connector
• RS-232/TCP-IP Control Mode: Provides control of unit as well as connectivity status
• Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio
• Control System Support: Key Digital® app ready. Key Digital Management Software ™ Pro (KDMS ™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
• Key Digital® App Ready: Network scan & detect populates pre-built GUI including optional image preview, finger drag video wall management, display control via IR, Local input switching, and external audio control.
• KDMS Pro Ready: PC software for unit & system setup and control UI with clean End-User mode option including optional image preview, mouse-drag video wall management, display control via IR & PJ Link IP, Local input switching, and external audio pre-amp control.
• Compass Control® Pro Inside: Built-in 3 port Compass Control® Pro master controller.
• I2C Communication: EDID and HDCP authentication to Display and Source
• Data Stream Bandwidth: < 900Mbps
• Latency: <40ms at 4K. Less at lower resolution.

Specifications:

Technical:

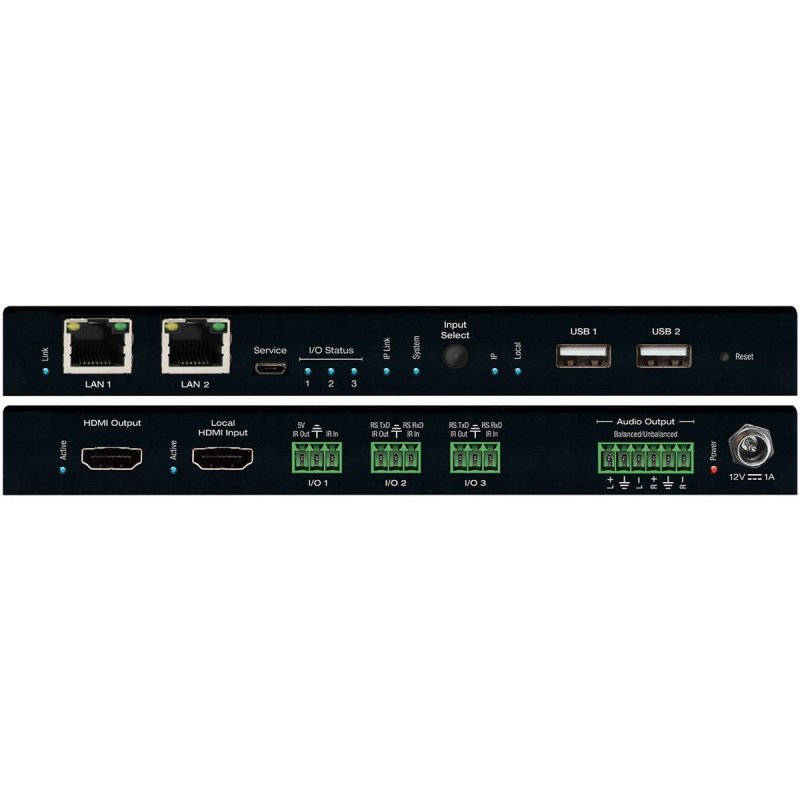

• Inputs KD-IP922ENC (Each): 1 HDMI, 1 External Audio, 3 Multifunction Control (IR, Bi-Directional RS-232, Trigger), 2 TCP/IP, 1 USB B
• Outputs KD-IP922ENC (Each): 1 HDMI, 1 Analog Audio
• Inputs KD-IP922DEC (Each): 1 HDMI, 3 Multifunction Control (IR, Bi-Directional RS-232, Trigger), 2 TCP/IP, 2 USBA
• Outputs KD-IP922DEC (Each): 1 HDMI, 1 Analog Audio
• DDC Signal (Data): 5 Volts p-p (TTL)
• HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
• HDMI Connector: Type A, 19 Pin Female
• Audio Connector: Balance/Unbalanced 6-Pin Phoenix, 3.5mm Stereo
• RJ45 Connector: Shielded TCP/IP 1G/100 BaseT, PoE
• Control Connectors: 3-Pin Phoenix

General:

• Regulation: CE, RoHS, WEEE
• Enclosure: Black Metal
• Power: KD-PS12V1ASC, 12V/1A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector
• Product Dimensions: 6.25" x 1.1" x 3.1"
• Product Weight: 0.9 lb
