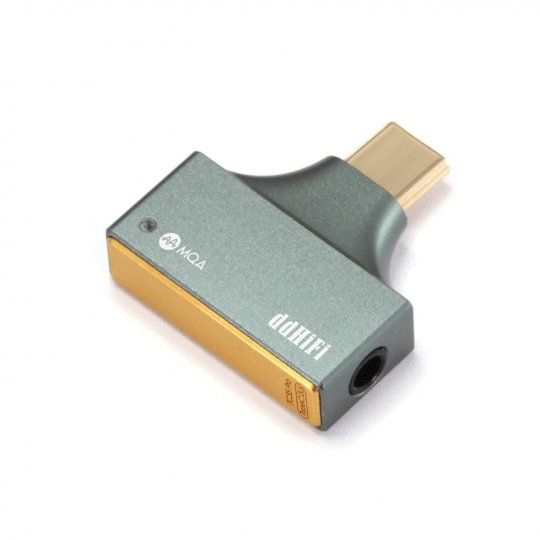

Compact But Extremely Powerful
If you are looking for an independent headphone
Amp and DAC to support up to 768kHz and to be
as compact as possible, then look no further than
this Mountain - one of the TC35 Pro series.
ddHiFi Original T-shaped Design
It continues the original T-shaped design,
but the challenge this time is how to make the shel/
even thinner, while still allows us to put in either the
TypeC or the Lightning plug.
All-New Powerful Decoding Chip
It adopts the ES9281AC PRO from ESS company as the
decoding chip.
Sampling rates: Support up to 32bit/ 768kHz
Native DSD: Support up to DSD512
SNR: ≥118dB
RGB Indicator Light
In addition to indicating the On and Off status*, it can
also identity difterent sampling rates of files with ditterent
Colors, including red, blue, green, yellow, white, and
magenta.
*The indicator light will flash blue green and red alternatively after being inserted
to the phone, but it only works when the earphone is plugged in. The indicator light
will be on steady when playing music.
MQA
MQA official certification.
MQA enabled renderer that will complete the final unfold of an MQA file.
The LED glows magenta to indicate that the unit
is rendering an MQA stream or tile.
This delivers the final unfold of the MQA file.
Auto Detect Headphone Impedance
Before use, please insert the earphone to the TC35 Pro
first and then connect it to your phone. In this way,
the device will automatically detect the headphone's
impedance and switch between Low Gain arnd High Gain
modes. For instance, when high impedance is detected,
it will then switch to High Gain mode to output.
Why is it called 'Mountain'?
This powerful decoding adapter TC35 Pro adopts the
design language of the arc surface transition. It looks
ike a mountain, but has a thinner shape, allowing the
earphone socket to be placed in the center.
It supports remote control, microphone, and MQA.
It's definitely a HiFi level decoding product with
well-controlled size.
Specifications:
TC35 Pro (Mountain): Transform the TypeC or Lightning on your phone to 3.5mm output
DAC Chip: ES9281AC PRO
Jack: 3.5mm (support remote control and microphone* CTIA standard)
Frequency response: 0.032dB@20Hz-40kHz
Output power: ≥30mW (16Ω); ≥62mW (32Ω); ≥7mW (600Ω)
SNR: ≥118dB
THD+N: 0.0004%
Sampling rates: Supports up to 32bit/768kHz
Native DSD: Supports up to DSD512
Weight: 5.6g
Dimensions (excl. the plug): 28x 22x 8mm,
