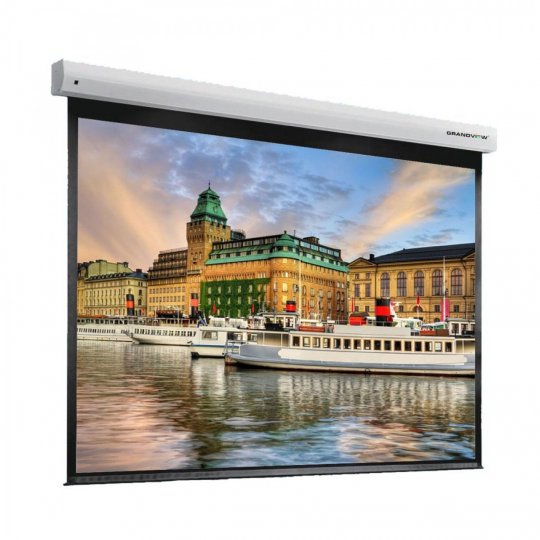

Cyber Integrated Motorized Screen

In-built with IR control function and designed with interfaces for wall switch and e×ternal central control to control the screen remotely and intelligently.

IR Remote Control

Control and Micro-adjust the screen with 8 meters effective range.

Manual Switch

Just under the casing we provided a swtich to control the screen manually.

Wall Switch (Optional)

Connect the 6P6C plug of the wall switch to the "EXT CTRL" interface, user can choose net cable when the control distance is too long.

Intelligent Control Interface

"EXT CTRL" Interface can both connected to a wall switch or central control system through RS485 protocol.

Universal Bracket

Suitable for either wall mount, ceiling mount or ceiling hang. The bracket can slide horizontally at the back of the casing to match different installation positions.

Cyber Series Fabric Features

Last-long Flatness

Sophisticated Images

Engraved with optical microgroove on the surface, with resolution more than 125 line pairs per mm, which ensures the sharpness of the projected images

Color Accuracy

The reflection light are evenly distributed with less than 60K difference between incident angle and reflection angle

Wide Color Range

With high contrast processment, while maintaining the color accuracy and color range is widely presented to provided a more vivid image

Cyber Integrated Motorized Screen

In-built with IR control function and designed with interfaces for wall switch and external central control to control the screen remotely and intelligently.

Specifications:

• Format: 4:3
• Diagonal (inch): 100"
• Viewing Size (W×H): 2030×1524
• Overall Height A(mm): 1767
• Blackdrop B3(mm): 80
• L & R Border B1(mm): 50
• Overall Length L(mm): 2280
• Weight: 30.4 lbs
• Power (w): 98
• Endcap Model A / B: B
