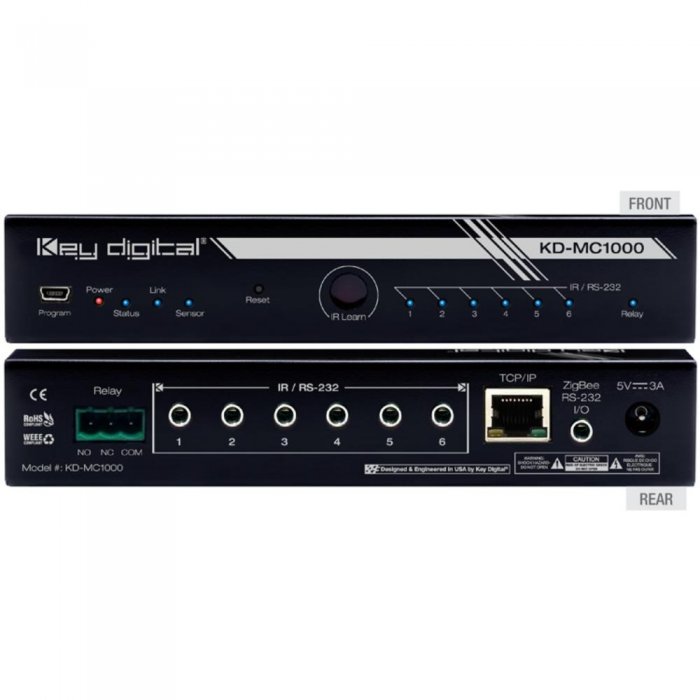

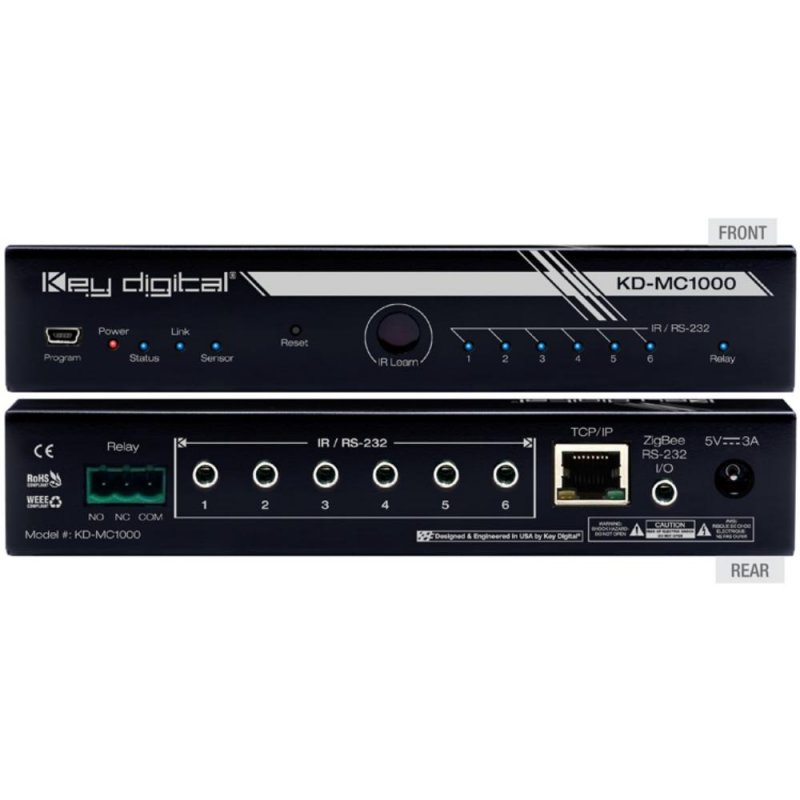

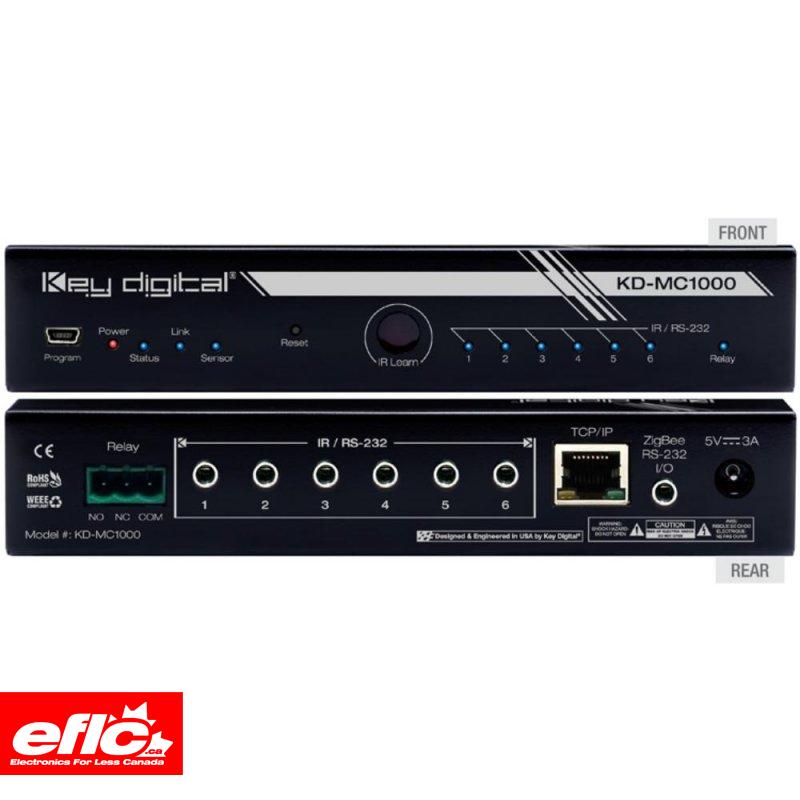

Key Digital KD-MC1000 Wired/LAN Master Controller
Brand New · Factory Sealed · Key Digital Authorized Dealer
$1,296.99
Free Canada-wide Shipping
•
Ships in 2 to 4 Days
end of _buybox_shipping
end of _buybox_core
end of _payments
end of _buybox_couponend of _xwarranty
- Available
- Free shipping
- 1yr Manufacturer Warranty
- 5% Price Promise
Trusted by 150,000+ Canadian customers since 2001
Features:
- iOS Backbone: First major control system built from the ground up using Apple's iOS devices - iPad®, iPad® mini, iPhone®, and iPod touch®
- Total 8 Ports: 6 MCP35™ Multi-Function I/O Ports , 1 Relay/Contact Closure Port, 1 ZigBee Wireless Port
- Multi-function 3.5mm Ports can be programmed to be one of the following functionality: IR in any direction, bi-directional RS-232, Voltage Level
- output, Voltage Sensor input, PCM Audio sensor input or Composite Video Sensor input
- USB Support: USB port for firmware upgrades and initial setup
- Built-in IR Learning: Front-facing IR window enables learning of IR codes from external IR remotes
- LAN: Direct wire to LAN via RJ45
- Relay Control: Control external equipment with one set of switchable contacts. Any multi-function 3.5mm port can be converted to Contact Closure using external Key Digital® KD-CCXR200 Converter
- Real Time Master Control: Allows user to store variables and events internally with/without iOS device
- Compass Navigator™: PC Editor allows fast and easy programming
- Device Configuration: Allows all functions and integration into Compass Project via IP and Compass Navigator™ software
- Complete Control: Audio, video, HVAC, lighting, shades, security, and more
- Control Distribution: Integrates with all Key Digital Control Routing HDMI Switchers to expand the control system and add control ports
- No need for PC or Mac in the system:All system performance is controlled by KD-MC1000 Master Controller and any iOS device
- Compass Alliance™ Partners: Pre-loaded code sets -
Reliable iOS Integration Features:
- IP Connectivity Stabilizer:Stable and constant TCP/IP socket created by KD-MC1000 with IP target devices via Telnet or HTTP regardless or iOS devices status.
- Event Handler:Scheduled events & actions based on iOS time and calendar variables including:
- Schedule Mode: Schedule and execute timer events from iOS device and/or KD-MC1000
- Schedule Sensing Mode: Execute events triggered by voltage or video/audio sensing by KD-MC1000
Specifications:
Technical:
- MCP35™ Multi-Function I/O (6): 3.5mm Female stereo connectors independently configured as IR (mono, Tx or Rx, fixed to +5V), RS-232 (stereo, Tx and Rx, fixed to +5V), Voltage Trigger (fixed to +5V), Voltage Sensor (Digital Audio or Video, from +0.1V to +3.3V)
- Relay (1): Independently configurable to NO (active), or NC (inactive) with 12A / 250VAC resistive switching capacity
- TCP/IP (1): Supports 10/100BaseT up to 100Mbps for communication with iOS devices via LAN, software updates, device configuration and setup
- Power Supply: KD-PS5V2A, 5V/2A, 100-240VAC, 50-60Hz, Interchangeable head
General:
- Regulation: CE, RoHS, WEEE
- Enclosure: Black Metal 1/2U
- Product: 6.5" x 4" x 1.13", 1.5 lbs
What's in the box:
- USB Cable
- (1) 3-Pin Terminal Block for Relay
- (6) 3.5mm to IR Emitter
- (3) 3.5mm to RS-232 Data Cable
- Rack Mount Ear
Product Details
- Key Digital KD-MC1000
-
Brand New : Factory Sealed
- UPC : 819505001036
- EFLC : 11977
