Features:

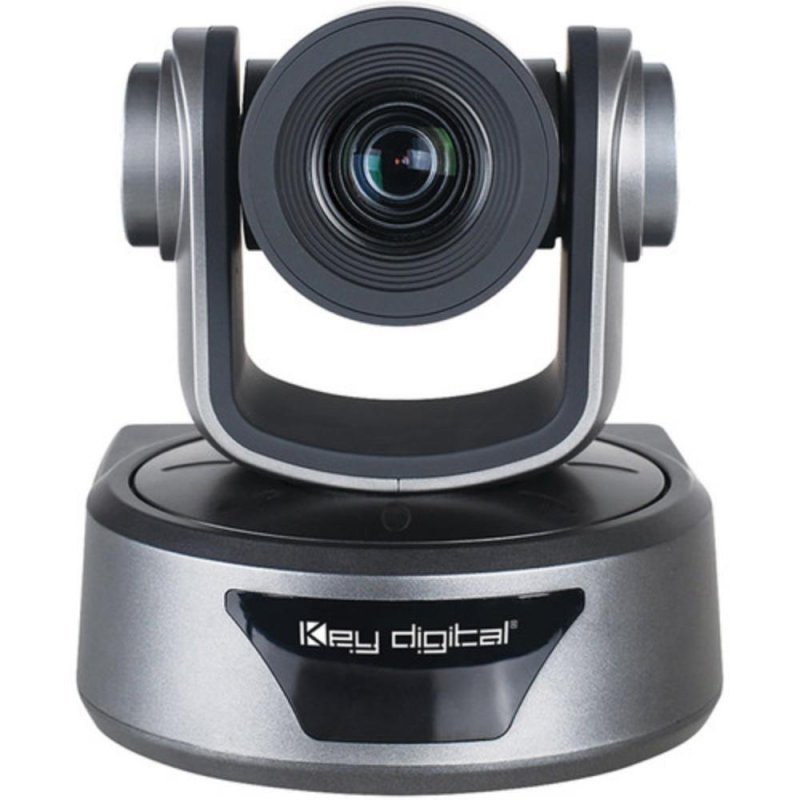

• USB 2.0 Pan-Tilt-Zoom Camera: Professional USB camera ideal for Video Conferencing and Capture applications in Huddle Spaces, Conference Rooms, Board Rooms, Lecture Halls, and more.
• Compatible Operating Systems: Generic USB Video Class Driver for effortless use on Windows 7, Windows 10, Mac OS X, and Linux machines
• Video Conference Software Support: Delivers professional PTZ features for popular video conference software such as Skype®, GoToMeeting®, Microsoft Teams®, Zoom™, RingCentral®, Google® Hangouts, and more
• Soft Conference Enabling System: Use with Key Digital Presentation Solutions family including KD-UPS52U, KD-X100MRx, KD-PS42, and KD-X40MRx to add USB plug-in wall plates, USB/KVM routing and extension, Digital Video switching, integration with professional audio visual systems (use external microphones as KD-CAMUSB does not feature built-in mic), TCP/IP and KD-App ready control.
• Multiple Mounting Options: Wall, and ceiling mounting hardware included. May also be table surface mounted.
• Recall & Store Position Presets: Up to 12 presets may be created, with up to 12 presets accessed via IR remote control on Home, Privacy, and numeric buttons.
• Auto Focus: Fast and accurate auto focus via leading auto focus algorithm
• Video Resolutions: From 320x240p @ 30fps up to 1920x1080p @ 30fps. Adjustable via Windows camera viewer and conferencing software camera settings panels
• Pan-Tilt-Zoom: Pan = ±170°. Tilt = -30° to +90°. Zoom = 10x
• User-Friendly IR Remote: Provides intuitive and ergonomic control
• RS-232: Bi-Directional control to/from KD-CAMUSB or via Key Digital Presentation Solutions Extender & Switcher units
• VISCA Controllable: Responds to VISCA protocol for control by PTZ camera control consoles. Supports addressing for multi-camera systems.
• Addressable: Up to 7 unique addresses for discreet control by RS-232 and/or VISCA systems
• Control System Support: Compass Control® Pro ready. Fully controllable by all IR, and RS-232 supported control systems via open API.
• KD-App Ready: When integrated with supported Key Digital Presentation Solutions Extenders and Switchers including KD-UPS52U, KD-X100MRx, KD-PS42, and KD-X40MRx. Pre-built GUI populates offering PTZ controls as source selection and display/projector controls via CEC Manager™.

KDCam PC Software Now Available from the Microsoft Store!

• Provides user-friendly camera control and preview for Key Digital's KD-CamUSB professional PTZ webcam
• Controls KD-CamUSB via the USB connection and may be used on its or while concurrently running video editing or conferencing software
• Create and call position presets, pan, tilt, and zoom KD-CamUSB to perfect your video broadcast
• Control options include: up to nine camera presets plus customizable home and privacy presets, pan, tilt, zoom, resolution adjustment, left/right reverse, picture flip, and pan speed
• Lower-thirds features include single or dual lined text with optional semi-transparent grey shape, or a png image may be imported and positioned as desired
• Access advanced features such as video resolution, camera speed adjustments, lens properties and more
• Advanced properties controls include: brightness, contrast, hue, saturation, gamma, white balance, backlight compensation, gain, exposure, low light compensation, and anti-flicker adjustments
• Software features automatic deference to a newly opened software using the connected KD-CamUSB
• On-screen customization for use with multiple windows and the on-screen control. On-screen controls can be minimized or expanded as needed.

Specifications:

Technical:

• Pan = ±170°
• Tilt = -30° to +90°
• Zoom = 10x Optical Zoom
• Viewing Angle: 52°
• Resolutions: Full HD 1080p 30fps
• Preset Positions: 10 camera presets plus home and privacy position
• Effective Pixels: 2.1 Megapixels, 16:9
• HOV: 47° - 5.3°
• Minimum Illumination: 0.1 Lux (full moon)
• White Balance: Auto
• Focus: Auto
• Signal to Noise Ratio: >52db
• Sensor: 1 / 2.8" HD CMOS
• Video Outputs: USB 2.0
• USB Protocol: UVC 1.1

General:

• Unit Length: 6.93in / 176mm
• Unit Width: 6.14in / 156mm
• Unit Height: 6.69in / 170mm
• Unit Weight: 2.2lbs / 1.0kg
• Mounting: 1/4-20 UNC screw, wall mount and ceiling mount hardware all included

Power:

• Power supply: 12V 2A with screw-in connection

What's in the box:

• Power Supply (qty 1) 12V/2A, 24W, wall type, model KD-PS12V2ASC
• 6ft USB A to USB B cable (qt 1)
• Mounting Bolt (qt 1)
• Remote, KD-RMCAM (qt 1)
• 3-pin phoenix terminal (qt 1)
• Wall mounting bracket (qt 1)
• Wall mounting screws (qt 4)
• Ceiling mounting upper bracket (qt 1)
• Ceiling mounting lower cover (qt 1)
• Ceiling mounting screws (qt 4)
