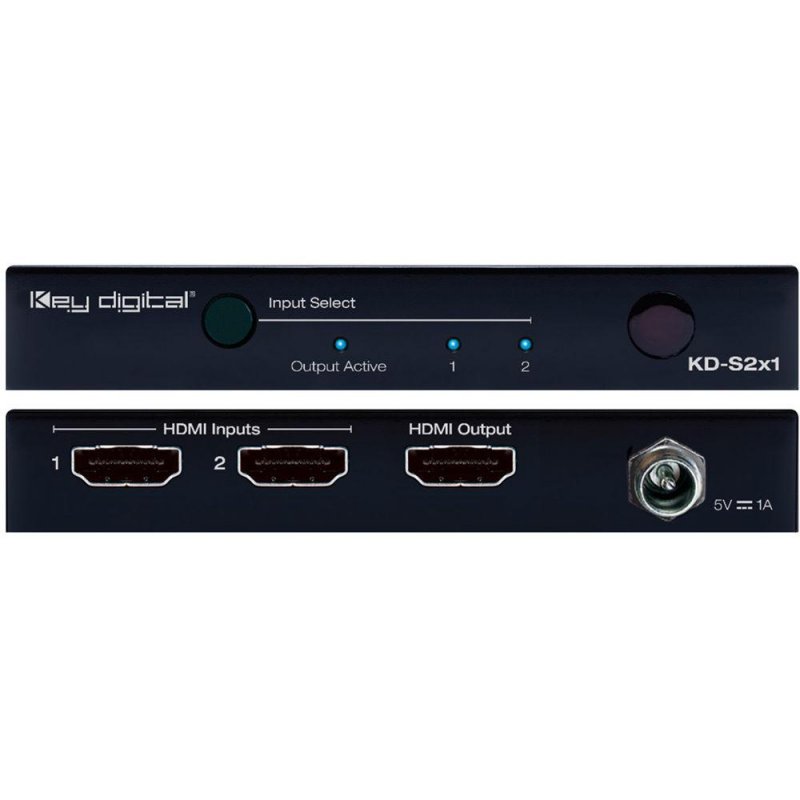

Key Digital KDS2X1 2x1 4K HDMI Switcher
Brand New · Factory Sealed · Key Digital Authorized Dealer
$166.99
Free Canada-wide Shipping
•
Ships in 2 to 4 Days
end of _buybox_shipping
end of _buybox_core
end of _payments
end of _buybox_couponend of _xwarranty
- Available
- Free shipping
- 1yr Manufacturer Warranty
- 5% Price Promise
Trusted by 150,000+ Canadian customers since 2001
Features:
- Digital Switching: 2 HDMI Sources to 1 HDMI Display
- Resolution Support: SD, HD, and VESA up to UHD/4K
- 18 Gbps Bandwidth: High Speed / Performance for latest HDMI standards
- HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
- HDCP 2.2 and HDMI Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technologies
- Ultra HD/4K Support: 4096x2160 or 3840x2160 30Hz at 4:4:4 and 60Hz at 4:4:4
- 3D Ready: Capability to pass 3D stereoscopic signal formats
- EDID Control: Internal library with 16 default EDID configurations for each input, including native EDID data of Output/Display
- Full Buffer ™ System: Manages TMDS re-clocking / signal re-generation, HDCP source & display authentication, Hot Plug Management and EDID Control handshake
- Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, Dolby® Atmos and DTS-HD Master Audio ™
- Deep Color Support: Up to 12 Bit at UHD/4K 24/25/30Hz 4:4:4
- I2C Communication: EDID and HDCP buffering from Display to Source
- Control: Front panel push buttons and LEDs, Optical IR
- CEC: Full Support
- Control System Support: Compass Control® Pro ready. Fully controllable by all IR supported control systems.
Specifications:
Technical:
- Input (Each): HDMI Connector, Type A, 19 Pin Female
- Output: HDMI Connector, Type A, 19 Pin Female
- Bandwidth: TMDS bandwidth 18 Gb/s
- DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
- Power Supply: KD-PS5V1ASC, 5V/1A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector
General:
- Regulation: CE, RoHS, WEEE
- Enclosure: Black Metal
- Product Dimensions: KDS2X1 - 4.3" x 1.1" x 2.8"
- Product Weight: KDS2X1 - 0.5 lb
What's in the box:
- Power Supply (qty 1) 5V/1A, 5W, wall type, model KDSP5V1ASC
- Mounting Brackets
- IR Remote
Product Details
- Key Digital KDS2X1
-
Brand New : Factory Sealed
- UPC : 815996020136
- EFLC : 11953
