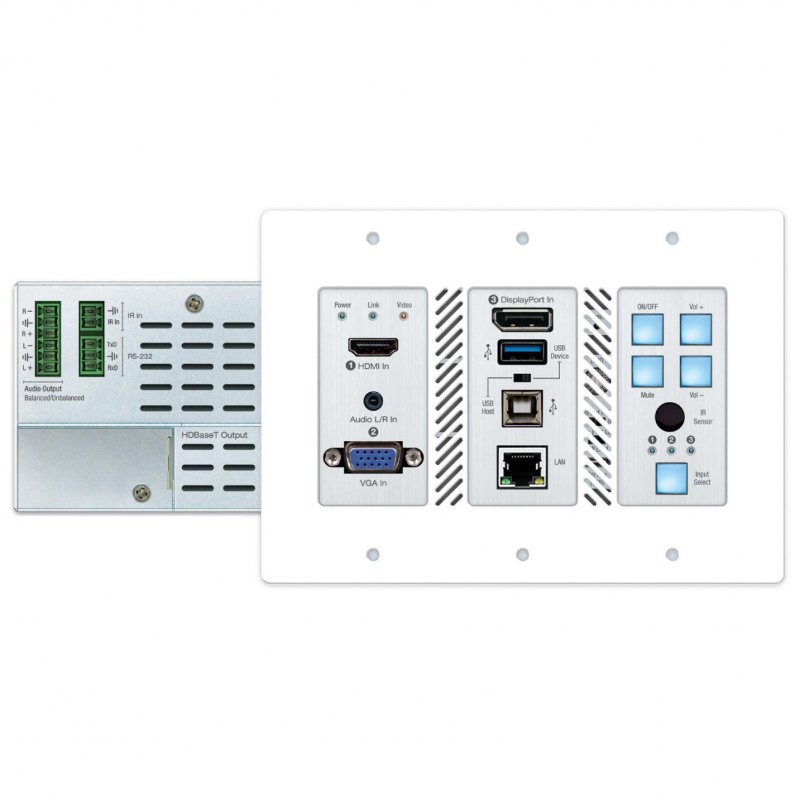

Key Digital KDX3X1WUTX 3x1 4K Wall Plate Transmitter with Auto Switching
Brand New · Factory Sealed · Key Digital Authorized Dealer
$1,599.99
Free Canada-wide Shipping
•
Ships in 2 to 4 Days
end of _buybox_shipping
end of _buybox_core
end of _payments
end of _buybox_couponend of _xwarranty
- Available
- Free shipping
- 1yr Manufacturer Warranty
- 5% Price Promise
Trusted by 150,000+ Canadian customers since 2001
Features:
- Presentation Switching: 1 HDMI, 1 VGA+L/R, 1 Display Port, and 1 USB-C source selection by push button or IP control
- Installation: Fits in standard US 3-gang wall box or table and wall AV boxes
- Rx Options: Native integration with KD-X100MRx black box HDBaseT Rx or KD-UPS52U Presentation Switcher. Future Rx options may be available
- Soft-Codec Enabling System: USB Host + Device ports on wall plate and chosen Rx / Presentation Switch create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
- Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
- Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
- CEC Manager ™: Power, volume, and muting controls of the connected displays/projectors without any additional control wiring
- Audio De-Embedding: Audio of the selected source is de-embedded at the unit's analog L/R balanced/unbalanced and PCM digital audio connectors
- ARC / eARC: Audio may be returned from the connected Rx (KD-X100MRx) unit and output on the external analog output
- KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager ™
- Ease of Integration: Complete configuration using Key Digital Management Software ™ Pro
- HDCP Licensing: Fully licensed and compatible with HDCP 2.2
- HDR10: More life-like images through a greater range of luminance levels
- Power Over HDBaseT: Wall-plate unit powered by Rx/Presentation Switch unit
- Installation: Tx unit designed for installation in standard US three-gang box
- Signal Extension: For resolution and cable quality
- 4K/UHD (18G): Up to 100m / 328ft
- 1080p: Up to 150m / 492ft
- Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
- Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
- EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
- IR Sensor: Wall-plate collects line-of-sight IR from remote(s) without external IR wiring
- RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit
- Lossless compressed digital audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio ™
- Control System Support: Fully controllable by all TCP/IP and RS-232 supported control systems via open API: Compass Control® Pro, AMX®, Crestron®, KNX®, RTI®, Savant, URC®, Leviton® etc.
Specifications:
- AV Inputs: 1x HDMI, 1x VGA, 1x L/R, 1x Display Port, 1x USB-C,
- AV Outputs: 1x HDBaseT RJ45, 1x HDMI, 1x Analog Audio on 6-pin terminal block, 1x Digital Audio on PCM RCA
- DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
- Display Port Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
- USB-C Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
- RJ45 Connectors: Shielded Link Connector, 2x HDBaseT, 1x LAN
- Unit Control: TCP/IP on RJ45, Bi-directional RS-232, Serial IR, IR sensor, USB Micro
- RS-232 Connector: 1x 3-pin terminal for unit control, 2x 3-pin terminal for pass-thru to/from HDBaseT Input and HDBaseT output
- IR Connectors: 1x IR Sensor, 1x 2-pin terminal for unit control, 1x 2-pin terminal for IR pass-thru to HDBaseT Input, 1x 3.5mm mono for IR input pass-thru to HDBaseT Output, 1x 3.5mm mono for IR output pass-thru from HDBaseT Output
- RS-232 Connector: 3-pin phoenix terminal
- Regulation: CE, RoHS, WEEE, EAC
- Enclosure: Black metal
- Product Dimensions: 8.27 x 7.20 x 1.75"(210 x 183 x 44.4 mm)
- Product Weight: Weight: 4.0 lbs / 1.81 kg
Product Details
- Key Digital KDX3X1WUTX
-
Brand New : Factory Sealed
- UPC : 815996021232
- EFLC : 11949
