8x8 4K HDBaseT/HDMI Matrix Switcher with Output Audio/ARC De-embedding and DSP on Analog L/R Balanced/Unbalanced, Digital Coaxial Audio (Includes 6RX (70M) & 2RX (100M) KIT Extenders).

Features:

• Ultra HD/4K: Supports signals up to 4096x2160 60Hz [4:2:0] 8bit or 4096x2160 30Hz [4:4:4] 8bit (10.2Gbps max bandwidth)
• Bandwidth: 10.2Gbps supports UHD/4K resolutions with HDR via EDID handshaking
• HDR (High Dynamic Range): HDR is achieved with AppleTV source at 4K/30 [4:2:2] 12bit deep color, enabling more life-like images through a greater range of lumincance levels
• HDCP 2.2 and HDMI Licensing: Fully licensed and compatible with HDCP 2.2 and HDMI latest technologies
• Simultaneously Active: 8 HDBaseT (CAT5e/6 RJ45) and 8 HDMI outputs with fully automatic CAT5e/6 cable equalization. Supports up to 16 displays (8 mirrored)
• HDBaseT Rx Included: 8 total Rx extenders integrate with built-in HDBaseT Tx output ports
• » Six (6) Standard Range KD-X88SHRx
• Signal Extension: KD-X88SHRx: Up to 200 feet @ 1080p/60, 1080p/24, 1080i, 720p » Up to 125 feet @ 4K/Ultra HD
• Audio Return Channel: Audio may be returned from display to respective audio output
• Audio De-Embedding: Audio from the selected HDMI input may be de-embedded through the Coax digital (PCM) and analog L/R balanced/unbalanced output
• Audio Pre-Amp: Variable level settings for volume, muting, 3-band EQ, balance, and lip-sync delay per output
• Long Range Mode: Outputs 1 and 5 extend 1080p signals up to 500 ft. (152m) using CAT5e/6
• Full Buffer ™ Technology: Full buffering of HDCP and EDID, for the fastest possible switching and viewing of any source/input to any display/output, regardless of multiple output viewing relation
• EDID Control: Internal library with 15 default EDID configurations for each input, in addition to native EDID data for any Output/Display
• TMDS Re-clocking: Support for long HDBaseT and HDMI runs and many layers of connectivity
• Voltage Control: Two dedicated 3-pin relays and any control I/O ports may be used as a voltage trigger
• Surround Audio Formats: Dolby® TrueHD, Dolby® Digital Plus, Dolby® Atmos and DTS-HD Master Audio ™
• Deep Color Support: Up to 12 bits/color
• Control Routing: Enables bi-directional IR/RS-232 control signal extension adding 36 ports to control system
• Control Integration: TCP/IP, RS-232, and USB with full bi-directional operation, front panel push buttons and LEDs, front/rear optical IR, serial IR
• Control System Support: Key Digital® App ready, Compass Control® Pro ready, KD-Wizard® ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API: AMX®, Crestron®, Control4®, KNX®, RTI®, Savant, URC®, Leviton® etc.
• Key Digital® App Ready: Scan & detect population for pre-built GUI and TCP/IP control via Key Digital® App

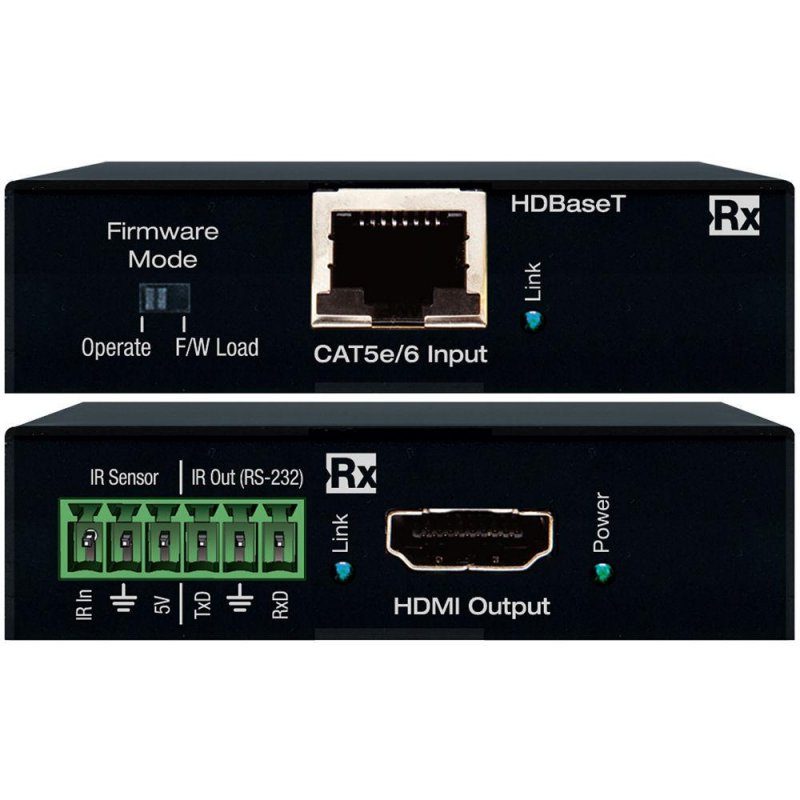

KD-X88SHRx POH/HDMI Receive Extenders

• Extends HDMI video + audio, and control (IR and RS-232) via a single CAT5e/6 UTP or STP cable
• Powered at the matrix. No local power connections needed.

KD-X88SHRx:

• Up to 125 feet @ 4K/Ultra HD
• Up to 200 feet @ 1080p/60, 1080p/24, 1080i, 720p

ARC Support via HDMI (All Outputs)

• Ensure that display and HDMI cable support ARC

Specifications:

Technical:

• Input (Each): 1 HDMI Connector, Type A, 19 Pin Female
• Output (Each): 1 HDMI Connector, Type A, 19 Pin Female; 1 HDBaseT, CAT5e/6 on RJ45 connector; 6-Pin Terminal Block for Analog L/R Output; RCA Jack for Digital Audio Output [follows SPDIF format (IEC 60958 )]
• Control I/O (Each): 6-Pin Terminal Block configured as IR or RS-232 with variable voltage levels from +0.1V to +12V or as or Voltage Trigger fixed to +5V
• Relay (Each): Configurable to NO (active), or NC (inactive) with 12A / 250VAC resistive switching capacity
• TCP/IP (1): Supports 10/100BaseT up to 100Mbps
• Video Bandwidth: TMDS bandwidth 10.2 Gbps
• Link: Single Link
• DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
• HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
• DDC Communication: EDID and HDCP Bi-directional buffering to Display and Source
• Wired IR: modulated IR signal input, 0-5V TTL or -10to +10V.
• Power: Matrix: +12V/6.6A (80W) » HDBaseT: +12V/6.6A (80W)

General:

• Regulation: CE, RoHS, WEEE
• Enclosure: Black metal
• Rack Mount: 2U, full rack-width (rack ears included)
• Accessories: Rack Ears
• Product: 17.3" x 6.6" x 3.46"
• Weight: 6.5 lbs

What's in the box:

• Power Supply (qty 2) 12V/6.6A, 80W, desktop type, model SPU65-103
• 6 standard range receiver extenders, model KD-X88SHRx
• 2 long range receiver extenders, model KD-X88LGRx
• IR Remote control, model KD-REMOTEHM88
• 6 ft. USB A to Micro USB data cable
• 8 IR emitters
• Rack mount ears
