Built Around Proven Amplification Design, Solid Build Quality and Impressive Musicality

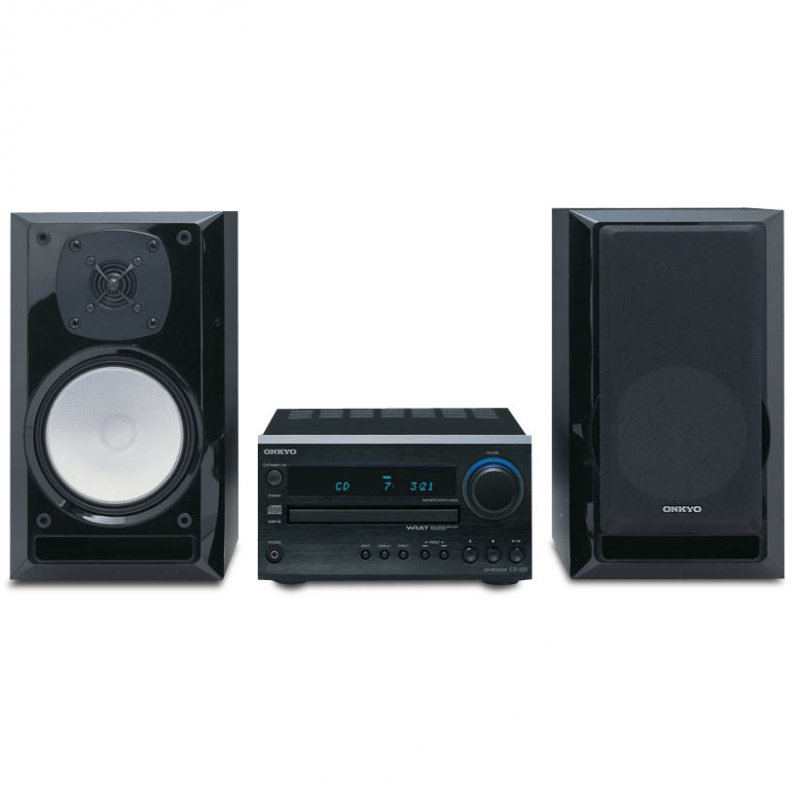

Mini audio systems are all about improving your lifestyle. Beyond merely saving space, though, the right mini system adds functionality and style in an integrated package.The CS-325 CD receiver system takes things a step further, thanks to its exceptional ability to reproduce audio. Here, Onkyo has applied the same approach used in its acclaimed two-channel audio line-up.The end result is a system best described with one word—musical.The system’s multi-format-capable receiver sports a robust chassis designed to suppress vibrations. Meanwhile, the accompanying speakers feature a gloss finish on the front, as well as proprietary Onkyo speaker developments designed to deliver audio signals with punch, clarity and emotion.
Specifications
Receiver Section | |
| Power Output (4 ohm, 1 kHz, FTC) | 19 W/Ch |
| Dynamic Power* 4 ohm/8 ohm (front) | 20 W/Ch/14 W/Ch |
| THD (Rated Power) | 0.9 % |
| Frequency Response | 10 Hz-100 kHz/± 3 dB |
| Damping Factor (8 ohm) | 25 |
| S/N Ratio TAPE/LINE | 100 dB (IHF-A) |
| Tone Control | - |
| Acoustic Control 1 | 1. ± 6 dB, 80 Hz (BASS) |
| Acoustic Control 2 | 2. ± 8 dB, 10 kHz (TREBLE) |
| Acoustic Control 3 | 3. ± 7 dB, 80 Hz (SUPER BASS) |
| Acoustic Control 4 | - |
| BASS | - |
| TREBLE | - |
| Tuning Range | - |
| FM | 87.5 MHz-107.9 MHz |
| AM | 530 kHz-1710 kHz |
| Usable Sensitivity | - |
| FM Mono | 15.2 dBf, 1 uV (75 ohm, IHF) |
| FM Stereo | 22.2 dBf, 2 uV (75 ohm, IHF) |
| AM | 30 uV |
| S/N Ratio (FM Mono/FM Stereo/AM) | 73 dB (IHF-A) / 67 dB (IHF-A) / 40 dB |
| THD (FM Mono/FM Stereo/AM) | 0.3 % (1 kHz) / 0.5 % (1 kHz) / 0.7 % |
| FM Stereo Separation | 40 dB at 1 kHz |
CD Section | |
| Signal Readout System | - |
| Reading Rotation | - |
| Linear Velocity | - |
| Error Correction System | - |
| DAC | - |
| Digital Filter | - |
| Number of Channels | - |
| Frequency Response | 10 Hz-20 kHz |
| Wow and Flutter | Below threshold of measurability |
| Sampling Rate (USB Input) | - |
General | |
| Dimensions (W x H x D) | - |
| Receiver | 8-1/16" x 4-9/16" x 13-7/8" |
| CD Changer | - |
| Weight | - |
| Receiver | 9.3 lbs./4.2 kg |
| CD Changer | - |
Speaker | |
| Type | 2-Way, Bass Reflex |
| Drivers | - |
| Woofer | 5-1/8" (13 cm) A-OMF Monocoque diaphragm |
| Tweeter | 1-1/" (3 cm) Ring-Drive |
| Frequency Response | 50 Hz-100 kHz |
| Crossover Frequency | 6 kHz |
| Sensitivity | 83 dB/W/m |
| Max. Power | 70 W |
| Nominal Impedance | 4 ohms |
General | |
| Dimensions (W x H x D) | 6 5/16? x 10 7/8? x 10 11/16? 160 x 275.5 x 271.5 mm |
| Weight | 32.6 lbs. (14.8kg) |
Two-Year Limited Warranty
Parts and labor serviced by Onkyo Canada for the duration of two-year warranty. electronicsforless.ca is a registered Onkyo Canada dealer.
