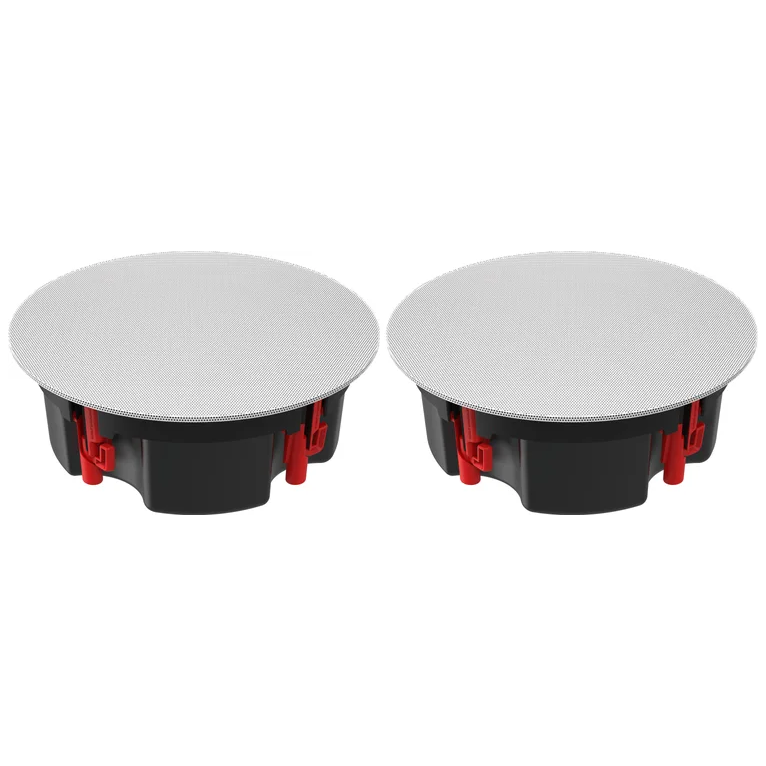

Klipsch PIC-525-T-SC 5.25-Inch Short-Can In-Ceiling Speaker
The Klipsch PIC-525-T-SC is a compact, short-can in-ceiling speaker designed for installations with limited mounting depth. Featuring a 5.25-inch woofer and a 1-inch titanium compression driver, it delivers clear, consistent audio with wide coverage in a space-saving design.
Engineered for commercial environments, it includes the Sky Hook Pro mounting system for fast, tool-free installation, multiple transformer taps for distributed audio systems, and a durable all-weather enclosure. Ideal for projects where performance and shallow depth are both critical.
Features
- 5.25-Inch woofer with 1-Inch titanium compression driver
- Short-can design for shallow installation depth
- Tractrix Hyperfold port design for improved bass performance
- 100° wide coverage for even sound distribution
- 104 dB maximum continuous output
- 65W continuous, 260W peak power handling
- 70V/100V transformer taps with 8-ohm bypass
- Sky Hook Pro tool-free mounting system
- All-weather ABS enclosure with metal can
- Paintable grille options in black and white
- Phoenix connector for simplified installation
- IP5X rated for commercial environments
Specifications
Audio
- Frequency Response: 95 Hz – 20 kHz +/- 4 dB, 60 Hz -10 dB
- Power Handling: 65 W continuous, 260 W peak
- Maximum Continuous Output: 104 dB
- Sensitivity: 89 dB
- Coverage: 100° +/- 20°
- Directivity Index: 7 dB +/- 1.5 dB
- Nominal Impedance: 8 ohms, 4.3 ohms minimum
- Acoustic Crossover: 2 kHz
Drivers
- Low-Frequency Driver: 5.25-Inch woofer
- High-Frequency Driver: 25 mm titanium compression driver
- Horn: 200 mm Tractrix horn with tweeter bridge
Enclosure
- Enclosure Material: All-weather ABS plastic, paintable, metal can
- Enclosure Tuning: Vented via 3 folded Tractrix ports
- Input Connectors: 4-pin euro block
Transformer Taps
- 70V: 30 W, 15 W, 7.5 W, 3.8 W
- 100V: 30 W, 7.5 W, 3.8 W
- Bypass: 8 ohms nominal
Dimensions
- Cutout Dimension: 10.125-Inch
- Mounting Depth: 3.875-Inch
- Overall Depth: 4.438-Inch
- Overall Width: 11.25-Inch
- Through Hole Width: 10-Inch
- Weight: 8 lbs
What’s in the Box
- In-ceiling speaker
- Paintable grille
Product Details
- Klipsch PIC525TSCBW
-
Brand New : Factory Sealed
- UPC : 743878057652
- EFLC : 16029
