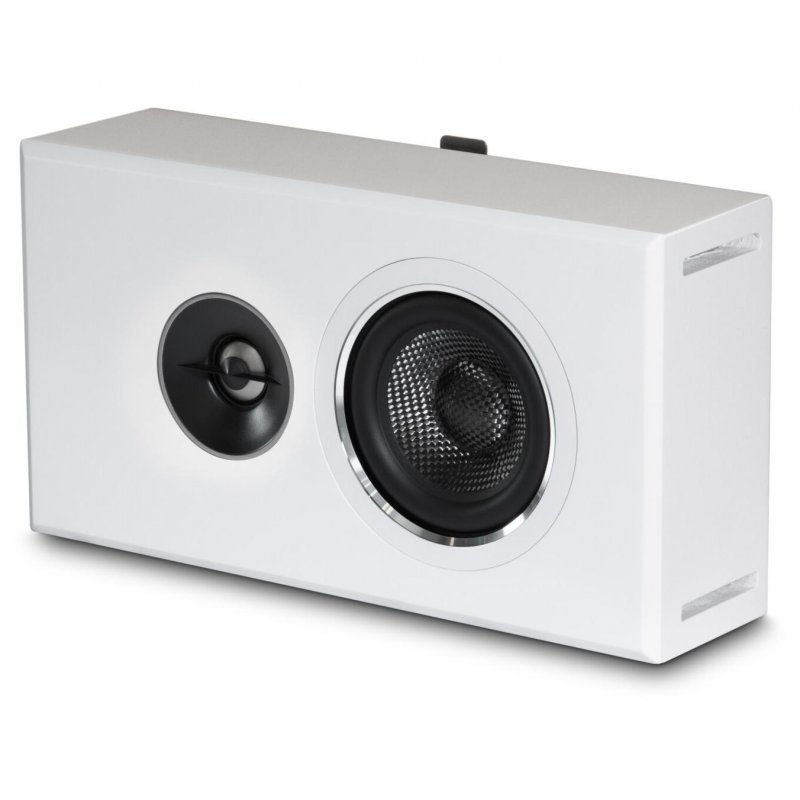

PSB Speakers PWM SAT
PSB PWM Sat is the most compact on-wall model in the PWM Series, delivering the same neutral, dynamic PSB voicing in a slimmer form factor. Built on Synchrony-derived drivers—a 25 mm titanium-dome tweeter and a 100 mm woven carbon-fibre woofer—it maintains clarity at low levels and scale at higher output. The two-piece locking bracket supports horizontal, vertical, or ceiling installation (including inverted near-ceiling placement), making the PWM Sat suitable as left/right, surround, height, or a discrete 2-channel solution with a subwoofer. Premium Satin Black or Satin White finishes and a magnetic cloth grille help it blend into residential or commercial spaces.
Features
- Synchrony-based driver platform: 25 mm titanium-dome tweeter + 100 mm woven carbon-fibre woofer
- Compact on-wall enclosure with bass-reflex design for extended response
- Two-piece locking bracket for horizontal, vertical, or ceiling mounting; invertible for near-ceiling placement
- Consistent tonal match with PSB on-wall, in-room, and architectural models
- Magnetic, acoustically transparent cloth grille
- Finishes: Satin Black or Satin White
Specifications
Performance
- Frequency response (on-axis, ±3 dB): 90 Hz – 23,000 Hz
- LF cutoff (-10 dB): 62 Hz
- Sensitivity (anechoic / listening room): 83 dB / 85 dB
- Impedance (nominal / minimum): 8 Ω / 6 Ω
Drivers
- Tweeter: 25 mm titanium dome with ferrofluid
- Woofer: 1 × 100 mm woven carbon-fibre cone, rubber surround, cast basket
Design
- Type: Bass-reflex on-wall
- Cabinet: MDF
- Grille: Magnetic, acoustically transparent cloth
- Mounting: Two-piece locking bracket (horizontal / vertical / ceiling; invertible)
Dimensions & Weight
- Size (W × H × D): 305 × 165 × 85 mm
- Depth with grille: 90 mm
- Net weight: 9.1 kg
- Shipping weight: 12.7 kg
Finish
- Satin Black, Satin White
