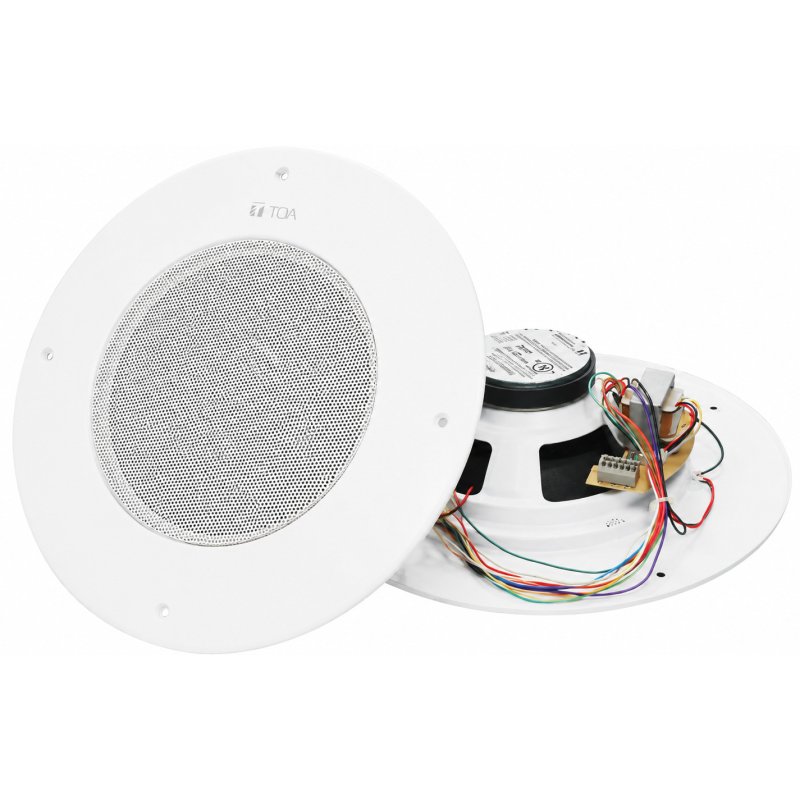

TOA PC-580RU 8-Inch In-Ceiling Paging Speaker 10W 97dB WHITE

The TOA PC-580RU is an 8-inch in-ceiling speaker designed for high-quality paging and notification applications. Its high-performance, cost-effective design makes it well suited to commercial installations and projects requiring larger quantities of ceiling speakers.

The PC-580RU supports 25V and 70V distributed audio systems and fits a standard ceiling-speaker template, making it particularly useful for retrofit installations. Its monocoque construction provides structural integrity while maintaining a practical ceiling-mount design.

For paging and emergency notification applications, the PC-580RU is UL 1480 and UL 2043 rated. An optional HY-BC580 AM back-can can be used for installations in ceiling plenums.

Features

• 8-inch in-ceiling speaker for paging and notification applications
• 10W RMS output power
• 97dB sensitivity
• Supports 25V and 70V distributed audio systems
• Transformer taps up to 5W
• Fits standard ceiling-speaker templates for easier retrofit installations
• Monocoque design provides improved structural integrity
• UL 1480 rated for emergency signaling and notification applications
• UL 2043 rated for installation requirements
• Optional HY-BC580 AM stackable back-can available for ceiling plenum installations

Specifications

General

• Product Type: In-Ceiling Paging Speaker
• Speaker Size: 8 in (20.3 cm)
• RMS Output Power: 10W
• Sensitivity: 97dB
• Frequency Response: 50Hz-16kHz
• Impedance: 20k Ohms
• Mounting: In-Ceiling
• Diameter: 12.6 in (32.0 cm)
• Depth: 3.4 in (8.6 cm)
• Weight: 3.31 lb (1.50 kg)
• Colour: White
• Certifications: UL 1480 and UL 2043
• Limited Warranty: 5 Years

What's in the Box

• TOA PC-580RU Ceiling Mount Speaker
• 4 x M5 x 38 mm Mounting Screws
• 2 x Wire Nuts
