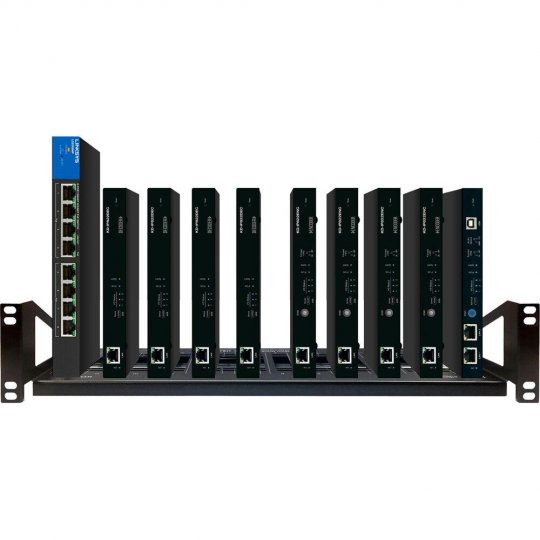

4K Video Wall Matrix AV over IP Kit. Includes 4 Encoders ((1) KD-IP922ENC & (3) KD-IP822ENC), 4 Decoders ((4) KD-IP822DEC), Mounting Shelf, and Pre-Configured Network Switch. KD-App Ready.
Features:
- AV Over IP: Utilizes a managed gigabit network switch to enable video distribution, matrix switching, and extension
- Kit Includes: 1x KD-IP922ENC, 3x KD-IP822ENC, 4x KD-IP822DEC, 1x Linksys LGS308MP, 1x KD-SMS16, Pre-installed CAT6A patch cables. All units are pre-configured and mounted on rack shelf.
- Video Wall Processing: Transform consumer or professional displays into a video wall with any video source viewed across multiple displays.
- Matrix Switching: Four sources may be viewed on any display in any combination
- Bezel Control: Auto or manual settings create a fluid screen transition by removing pixels from top, bottom, left, and right border independently
- Panel Flip: Top row displays may be installed upside down to conjoin thin bezel edges of consumer displays for fluid screen transitions
- WiFi Connection Port: Dual LAN port of included KD-IP922ENC enables connection of WiFi router or access points for ease of control from KD-App or control system.
- Audio De-Embedding: Audio from the HDMI input of included KD-IP922ENC is de-embedded through Analog L/R Balanced/Unbalanced phoenix terminal to enable external audio connectivity with audio distribution systems and amplifiers
- Audio Pre-Amp: Volume, muting, 3-band EQ, and lip-sync delay controllable on audio de-embed port of included KD-IP922ENC
- 4K Down-Scale: Incoming 4K resolution can be down-converted to 1080p at each decoder, enabling monitors to display content at optimal resolution at all times
- HDR (High Dynamic Range): HDR is achieved with AppleTV source at 4K/30 [4:2:2] 12bit deep color, enabling more life-like images through a greater range of luminance levels
- 4K/Ultra HD Resolution: Support for 4096x2160 or 3840x2160 24/25/30Hz at 4:4:4/8 Bit or 60Hz at 4:2:0/8 Bit (10.2Gbps max bandwidth)
- HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
- HDMI Pass-Through: Enables connection to local monitor or additional devices up to 75 ft.
- Power over Ethernet: Encoders and Decoders powered by included pre-configured PoE network switch
- Redundant Power Supply: Added reliability for non-PoE integration
- Control: Multi-function ports controllable via KeyCode open API, as Compass Control® Pro master controller, or as control
extension via IP
- Data Stream Bandwidth: < 900Mbps
- Latency: <40ms at 4K. Less at lower resolution.
- EDID Control: Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected to Decoder
- Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected input devices
- Full Buffer System: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID Control handshake, and Hot Plug control
- TMDS re-clocking: Support for long CAT6 or HDMI connections and many layers of connectivity.
- Key Digital® App Ready: Can be controlled over TCP/IP via Key Digital® iOS App
- Compass Control® Pro Inside: Built-in Compass Control® Pro master controller.
- KD-ProCL1/2/4/8 Software Activation. Required to activate iOS controllers.
