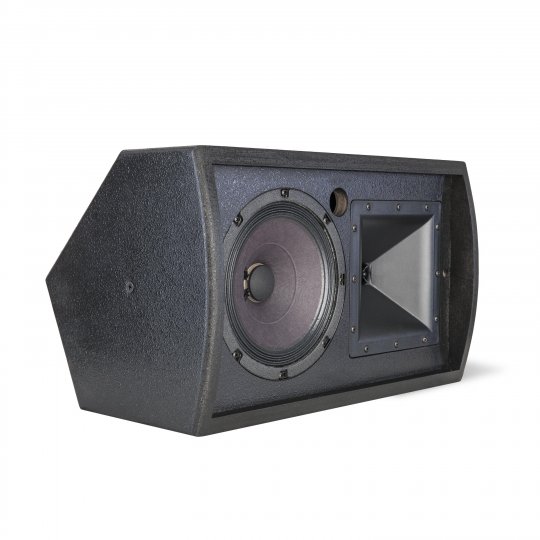

The KI-102 two-way trapezoidal loudspeaker is a compact hybrid Tractrix ® Horn-loaded speaker system capable of superb voice and music performance in permanent limited-space installations. It is recommended for use in restaurants, clubs, schools, churches, health clubs, and corporate A/V production environments where fidelity requirements are high but real estate is limited.

CNC fabrication techniques dado "lock-tab" and rabbet joint construction contribute to industry leading reliability maximum precision and ruggedness and a cabinet remarkably free from resonance and cabinet-induced coloration. Mounting capabilities include top and bottom attachments for the optional SB-102 "U"-shaped bracket (not included and shown in some images).

Specifications:

• Frequency Response1: 70Hz-17kHz±4dB, -10dB 59Hz (see graph)
• Power Handling2: 100 Watts (21.2V)
• Maximum Continuous Output3: 113dB
• Dispersion Angle: 90° Horizontal X 90° Vertical (see graph)
• Directivity: 7dB (see graph)
• Sensitivity4: 96dB
• Nominal Impedance: 8 Ohms, 4.5 Ohms at 8.5kHz (see graph)
• Crossover Frequency: 3kHz, 12dB/Octave on LF, 18dB/Octave on HF
• Overload Protection: KLIP Overload Tweeter Protection Circuit
• Components: K-8-E 8" Woofer
• Enclosure Material: K-103-TI-KP 1" Titanium Diaphragm Compression Driver
• Input Connections: 3/4" Furniture Grade Plywood, Five-way Binding Post
• Depth: 11.25" (28.575cm)
• Height: 18.813" (47.785cm)
• Width: 11.313" (28.735cm) 45/65° Asymmetrical Angled Box
• Net Weight: 22 lbs. (9.988kg)
• Shipping Weight: 27 lbs. (12.258kg)
• Finishes: Black, White and Raw Plywood
• Accessories: SB-102 Mounting Bracket
