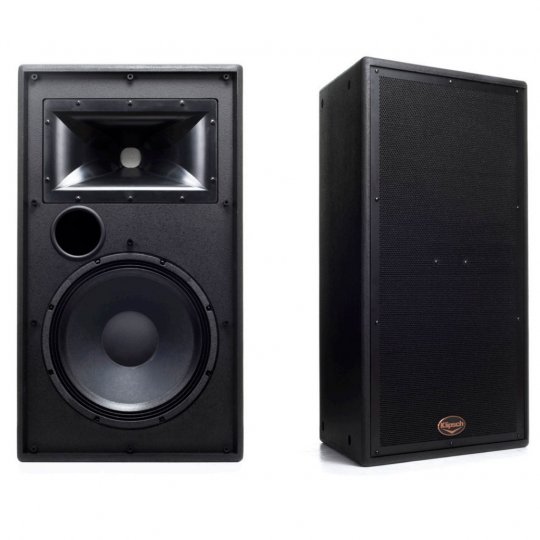

The Klipsch KI-396-SMA-II has incredible output capability with exceptional low-distortion clarity. The compact 22.5° symmetrical, trapezoidal design houses a 15" high-excursion cast frame heavy-duty woofer, a large 3" titanium high-frequency compression driver and a 90°x60° Tractrix® "Mumps" Horn. These horns exhibit improved coverage control than earlier generations of Tractrix Horns.

The KI-396-SMA-II permanent install speaker has 16 suspension points (4 per side) for flexible mounting and rigging bar compatibility and includes an internal high current full-range crossover.

Specifications:

• Frequency Response1 (+/- 3 Db): 60 Hz - 18 kHz (-10 dB @ 35 Hz)
• Power Handling2: 600 watts (56V) 2400 watts peak
• Maximum Spl3: 127 dB Continuous 133 dB Peak
• Sensitivity4: 101 dB
• Coverage: Horizontal: 90° +/- 30º 400 Hz - 13 kHz
• Vertical: 60° +/- 20º 1.6 kHz - 20 kHz"
• Directivity Index (Di): 8 dB +/- 2 dB 1.6 kHz - 20 kHz
• Directivity Factor (Q): 6.3
• Nominal Impedance: 8 ohms, minimum 5.1 ohms @ 112 Hz
• Crossover Frequency: 1 kHz
• Components: One K-48-ST 15" woofer
• One K-691 3" titanium compression driver on a K-510 horn
• Input Connection: Two point barrier strip
• Mounting Option: Sixteen 3/8"-16 flypoints
• Bracket Mount: One attachment point for C-bracket Top and Bottom: 3/8"-16
• Enclosure Material: 3/4" 7-ply birch plywood cabinet 1" MDF motorboard
• Height: 34.3" (87.12cm)
• Width: "19.8" (50.29cm) front, 6.8" (17.27cm) rear
• Depth: 16" (40.64cm)
• Weight: 76 lbs. (34.54kg)
• Finishes: Black, White and Raw Birch finish
