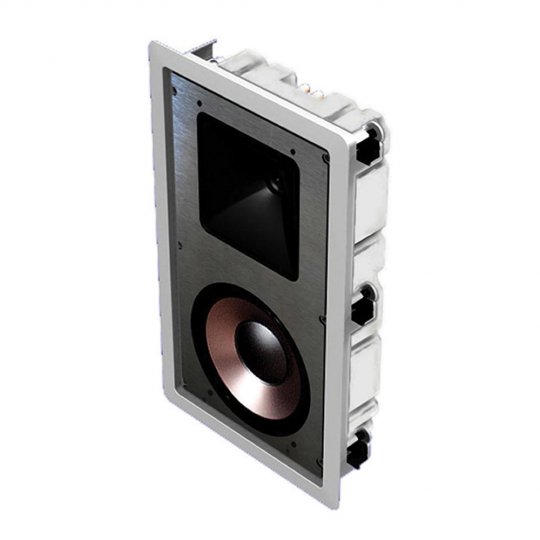

Engineered to bring real cinema sound to the comforts of home without taking up valuable floor space, the KL-7800-THX offers the ultimate performance in a hidden solution loudspeaker. It is designed for left, center or right channel use or wherever a monopole speaker is needed.

• THX® Ultra2 certification
• 8-inch aluminum woofer
• 1-inch titanium dome compression driver mated to a square Tractrix® Horn

Because of its THX® Ultra2 certification, the KL-7800-THX works well with multi-channel movie and music presentations playing up to reference levels in rooms of 3,000 cubic feet or larger.

The KL-7800-THX is also capable of delivering the same high-output, low distortion signature sound as its traditional enclosure counterpart, the KL-525-THX. It employs an 8-inch aluminum woofer and a 1-inch titanium dome compression driver mated to a Tractrix® Horn. This advanced horn design dramatically increases efficiency and allows the speaker to produce more output using less energy.

Featuring an integrated back box enclosure, the KL-7800-THX's response is both predictable and repeatable. Because this enclosure fits easily within the loudspeaker's footprint, the KL-7800-THX can be installed into new or existing construction.

Combine this dynamic loudspeaker with Klipsch's KS-7800-THX in-wall surround, KW-120-THX subwoofer and KA-1000-THX subwoofer amplifier to create a variety of THX Ultra2 in-wall system configurations. The KL-7800-THX can also be mixed and matched with the Klipsch THX Ultra2 traditional box products.

Specifications:

• Frequency Response: 80Hz-20kHz ± 3dB
• Sensitivity: 91dB @ 2.83 volts / 1 meter
• Nominal Impedance: 8 ohms
• Crossover Frequency: 2300Hz
• Power Handling: 150 w max continuous (600 w peak)
• Enclosure Material/Type: Sealed Enclosure
• Drive Components: Two-way system using one 1" (2.5cm) Titanium dome compression driver in a 5" 80° x 80° Tractrix horn and an 8" Aluminum Cone Woofer
• Wire Gauge Accommodated: 12
• Weight: 17.5 lbs.
• Height: 20.8"
• Width: 11.8"
• Mounting Depth: 3.7"
• Cut Out Dimensions: 19" x 10"
