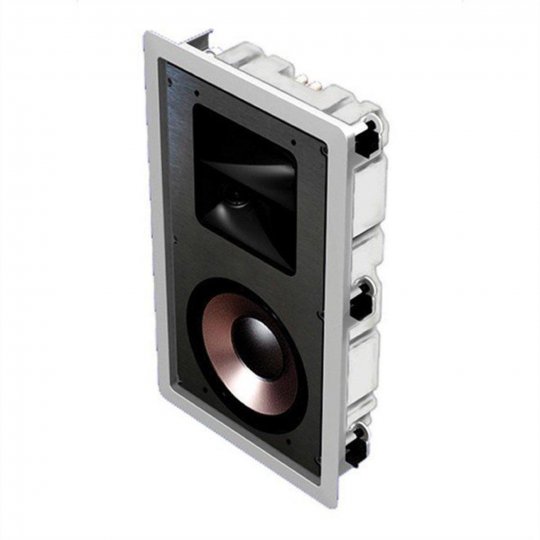

Developed to bring a whole new dimension of reality to home theater, the Klipsch KS-7800-THX offers the ultimate surround sound performance in a flush-mount design.
- THX® Ultra2 certification
- 8-inch aluminum woofer
- Two vertically-stacked Tractrix Horn-loaded tweeters
- Utilizes Klipsch's Wide Dispersion Surround Technology™
Because of its THX® Ultra2 certification, the KS-7800-THX works well with movie presentations playing up to reference levels in rooms of 3,000 cubic feet or larger.
The KS-7800-THX is also capable of delivering the same high-output, low distortion signature sound as its traditional enclosure counterpart, the KS-525-THX. It employs an 8-inch aluminum woofer and a patented horn array, consisting of two vertically-stacked Tractrix Horn-loaded tweeters.
In order to create enveloping sound fields and precise localization of individual effects, this speaker also utilizes Klipsch's Wide Dispersion Surround Technology™. Also referred to as WDST, this no-compromise approach gives the KS-7800-THX much more placement flexibility than conventional designs.
Featuring an integrated back box enclosure, the KS-7800-THX's response is both predictable and repeatable. Because this enclosure fits easily within the loudspeaker's footprint, the KS-7800-THX can be installed into new or existing construction.
Combine this dynamic loudspeaker with Klipsch's KL-7800-THX LCR speaker, KW-120-THX subwoofer and KA-1000-THX subwoofer amplifier to create a variety of THX Ultra2 in-wall system configurations. The KS-7800-THX can also be mixed and matched with the Klipsch THX Ultra2 traditional box products.
Specifications:
- Frequency Response: 80Hz-20kHz ± 3dB
- Sensitivity: 90dB @ 2.83 volts / 1 meter
- Nominal Impedance: 8 ohms
- Crossover Frequency: 2130Hz
- Power Handling: 100 w max continuous (400 w peak)
- Enclosure Material/Type: Sealed Enclosure Drive Components Two-way system using two 1" (2.5cm)
Titanium dome neodymium tweeters in a diffuse Tractrix horn array and an 8" Aluminum Cone Woofer
- Wire Gauge Accommodated: 12
- Weight: 17 lbs.
- Height: 20.8"
- Width: 11.8"
- Mounting Depth: 3.7"
- Cut Out Dimensions: 19" x 10"
