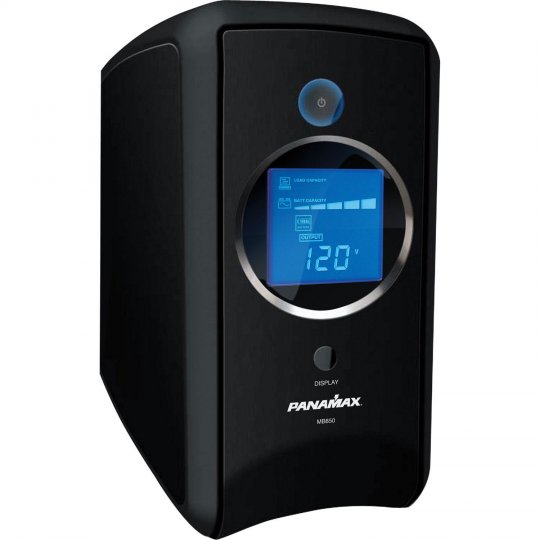

Panamax MB-850 Shelf-Mount Uninterruptible Power Supply (UPS) Battery Backup

Secure One-Page Checkout


Panamax Authorised
Panamax MB850  Low Stock : Order Soon 449.99
UPC : 050616008532  5% Price Promise
Warranty : 1yr Manufacturer 14 Day Money Back

Order by 2pm : Ships Today
NOTE: Continues shipping during the shutdown.
Standard Canada-Wide Free Shipping FREE

To purchase now by phone, call toll-free: 1-888-248-4969. Item: 8098

During power disruptions the MB850 Battery Backup provides constant power to your equipment.

During power disruptions the MB850 Battery Backup provides constant power to equipment, such as:

Lamp Based Display

Prevent expensive lamp burnout in lamp based displays (cooling fan can continue to properly cool down lamp).


Avoid loss of DVR recorded TV programming.


Prevent loss of unsaved games during the saving/loading process.

HT System

Avoid the time and hassle rebooting your home theater system.


5 Battery Powered and Surge Protected Outlets

Provides continuous battery backup when power is interrupted.

4 Fulltime Surge Protected Outlets

Provides complete surge protection for equipment not requiring battery backup.

USB/Serial Port To PC

Allows home theater PC to communicate with UPS through USB or serial port.

1 Pair, In/Out Coax / Cable Sat Surge Protection

Wiring Fault Indicator Light

LED illuminates when wiring problems exist.

Ethernet Protection Ports

Phone / Modem / DSL / Ethernet protection (Combination Ethernet or phone line protection).

Resettable Circuit Breaker

Provides overload protection.

Auto-Shutdown Software

Panamax offers surge protection plus battery backup. The MB850 will safely shut down your home theater PC.

LCD Display Provides:

  • Input Voltage Level
  • Output Voltage Level
  • AVR Status Meter
  • Battery Capacity
  • Estimated Runtime
  • Load Level
  • Output Power Frequency interrupted

Icon Indicators Includes:

  • On Battery Mode
  • Overload Condition
  • Fault Condition


Automatic Voltage Regulation stabilizes input voltage to an appropriate level for optimal equipment performance by completely eliminating brownouts and overvoltages.



  • Family: Shelf Mount
  • Line Voltage: 120 (Volts)
  • BlueBOLT Enabled: No
  • Number of Outlets: 9
  • Number of Isolated Banks: 0
  • Outlet Descriptions: All 9 outlets are surge protected, Bank 1 has 5battery powered outlets
  • Rack Mountable: No
  • Rack Ears Included: No
  • Front Panel Meter(s): LCD Displays statuses and voltage level
  • Front Media Light(s): No
  • Control: Remote control through USB or serial port
  • Compliance: cULus
  • AC Power Cord: Captive power cord
  • Dimensions: 10.25" L x 4.375" W x 8.875" H
  • Weight: 16 lbs.

Battery Backup:

  • Output Frequency: 60 Hz
  • UPS Output Capacity: 850VA, 510W
  • Regulation Output Range: 120 ± 5% Simulated Sine Wave
  • Transfer Time: 4ms

AC Protection:

  • AC Protection Technology: Standard MOV based surge protection
  • Automatic Voltage Shutoff: Yes
  • Under-Voltage Shutoff: 90V
  • Over-Voltage Shutoff: 140V
  • Maximum Current Rating: 12 (Amps)

Signal Line Protection:

  • Signal Line Protection: 1 LAN/Tel 1 Cable/Satellite
