Functional Overview

• New chipset RTD1619BPD Quad-core 64bit high-performance processor
• HDMI® 2.1 4k 60Hz point-to-point output, HDR(HDR10/HLG/HDR10+/Dolby Vision)
• 12Bit, BT2020 wide color range, YCbCr 4:4:4 color space, truehd audio passthrough
• VS10 engine maps content to approximate Dolby Vision colours for significant image quality improvements
• upport SATA (3.5/2.5) hard drive up to 16T; Support external BD/DVD(unencrypted), CD discs
• Home Theater 4.0 with custom categories and management, movie trailers and soundtrack playback
• Lossless music playback DSD (SACD ISO, DSF, DFF), WAV, APE, DTS, etc
• Newly upgraded Music Player supports lossless playback and decoding, personalized setting and tracks data association matching
• support multiple ways of music streaming, such as DLNA, etc
• Android 11 OS has improved the system performance and stability greatly
• More accurate HDR10 static metadata (MaxFall,MaxCll) processing, highlights and shadows display with stark contrast
• Support HDR10+ dynamic metadata processing, images colors and brightness levels could be obtained accurately frame by frame and scene by scene
• Advanced Dolby Vision technology supports LLDV (Player Led) and Standard mode (TV Led) output
• Automatic frame rate 23.976 and resolution ensures smooth movie playback without interruption
• Support BD/BD3D/UHD full Blu-ray menu and complex MPLS structure Blu-ray seamless branching playback
• Support 3D video formats including MVC 3D (Blu-ray/MKV)
• Support special effect subtitles, download subtitles online and exclusively support Blu-ray and MKV forced subtitles
• Support network protocols like NFS, SMB v1/v2/v3, UPnP, Web DAV, and built-in SMB services
• Support standard WOL, two optional modes Power On mode and Standby mode
• Integrate to smart home smoothly with HDMI® CEC, RS232 and Control 4
• ZIDOO Controller APP (IOS and Android) controls media player easily

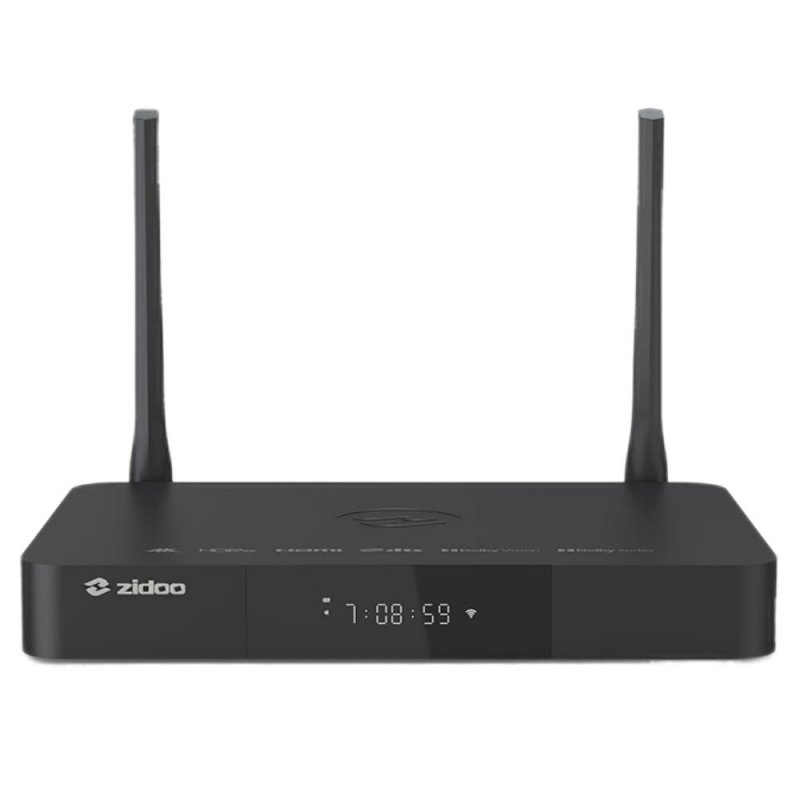

High End 4K HDR Experience

Z9X PRO is a 4K UHD media player with a powerful graphics engine for home theater, Sup-port AV1. Compared with last generation, it has significant improvement in audio and video decoding especially the support for HDR 10+ and Dolby Vision, which has filled up the vacancy of the market. Meanwhile, it is still a costffective and high-performance model.

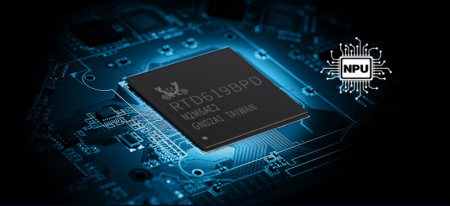

Powerful Chipset

Z9X PRO equips RTD1619BPD professional processor with 12m technology, and embeds 1.6TOPS neural network processor. Performance has improved 20% compared to the previous generation. which has faster response speed and more efficient computing capability. Strong decoding performance supports accurate UHD decoding and excellent image quality output.

WiFi and Bluetooth

Z9X PRO has a built-in 2.4G+ 5G dual-band 22T MIMO WIFI module, Support WIFI 6 .the wireless transmission rate is up to 1201Mbps. And Z9X PRO has high-gain antennas. It can avoid interference and maintain a stable and high-speed connection even in the harsh network environment. Equipped with Bluetooth BT 5.2 module, Z9X PRO supports connecting with Bluetooth remote control, Bluetooth mouse, Bluetooth speaker and Bluetooth headphone etc.

Large Memory and Internal Storage

4GB DDR4 large memory comes with fast and smooth playback response, which helps enjoying wonderful movies and music. 32GB eMM super internal storage supports installing masses of favorite apps and create more possibilities for audio-visual entertainment.

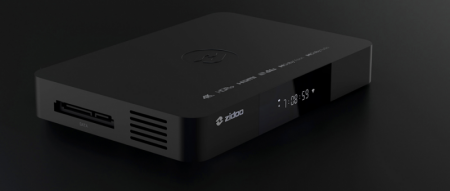

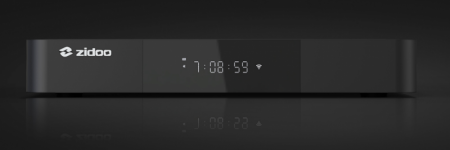

Chassis Material and Workmanship

The chassis is all made of metal, which is exquisite and durable The gray surface has a nice feel with sandblasting and oxidation workmanship.

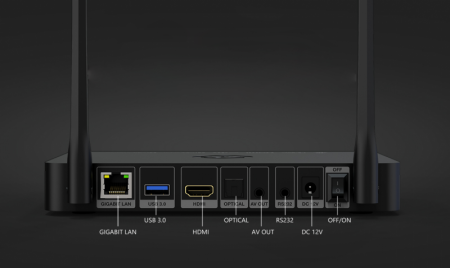

Multiple Interfaces

Z9X PRO has many interfaces, meet home theater enthusiasts' needs for connecting various equipment.

4K UHD Image Quality

Z9X PRO image engine can easily decode 4K HDR images output, each pixel is natural and full Images are clear and large screen.

Accurate Frame Rate Switching

Z9X PRO supports switching the original resolution and frame rate automatically and accurately (23.976,59.94,25,30,50 and 60). The new automatic switching algorithm allows completing the film frame rate switching in advance to ensure smooth and integral film playback.

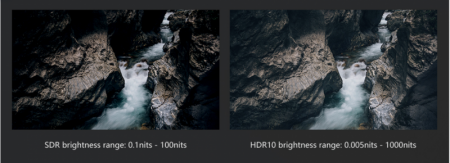

Stunning HDR Technology

New HDR processing engine can deal with HDR10 static metadata (MaxFall, MaxCII) more accurately. Color contrast is stark, both highlights and shadows can be displayed perfectly, which could display images like real scene. Meanwhile, Z29X PRO provides HDR to SDR algorithm, it helps displaying HDR movies very well on SD devices through dynamic correction and color reproduction.

Higher Level HDR10+

Z9X PRO takes the lead in adding HDR10+ and Dolby Vision technology. HDR10+ technology could not only display peak brightness up to 4000 nits, but also process metadata accurately for each frame. Namely, colors and brightness levels are obtained frame by frame and scene by scene, images could be displayed in details with wide dynamic contrast and richer colors.

Dolby Vision VS10 Technology

Z9X PRO integrates Dolby Vision VS10 image engine, which supports Dolby Vision low latency (LLDV)output. Dolby Vision has adopted advanced dynamic metadata processing technology, so that the most suitable brightness could be output for images and scenes of each frame. Shadows are darker while highlights are brighter. Even in the dark and weak-light environment, it could also display the best visual effect. Meanwhile, VS10 is a powerful engine, no matter what formats (Dolby Vision, HDR,HLG,SDR etc.) or displaying devices, whether HDR outputting or SDR converting, all could keep color accuracy and bring good experience to customers. Even normal TV could experience Dolby Vision technology.

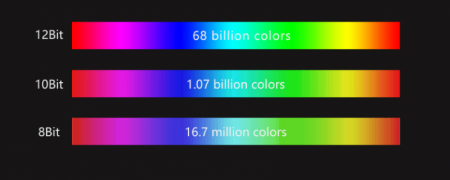

12Bit Color Depth

Z9X PRO new image engine not only supports 10 Bit (approximately 1.07 billion colors) decoding and outputting at the resolution of 4K 60Hz, but also supports higher color depth 12 bit (approximately 68 billion colors); 12 bit has vibrant colors and natural color transition.

Wider Color Range

Z9X PRO supports BT.2020 wide color range which could display 75% natural colors and closer to what human eyes could see, while traditional BT.709 could only display 35% nature colors. It has bright and eye-catching colors, rich and full images, and a better sense of space, three dimension and layering.

Android 11

Z9X PRO supports BT.2020 wide color range which could display 75% natural colors and closer to what human eyes could see, while traditional BT.709 could only display 35% nature colors. It has bright and eye-catching colors, rich and full images, and a better sense of space, three dimension and layering.

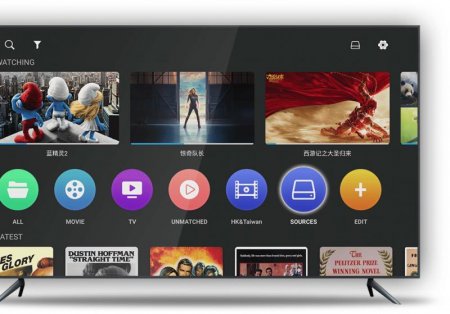

Cool Poster Wall

Z9X PRO comes with new movie posters management system It has concise navigation, personalized category, record viewing and custom collection etc. It makes movie collection more convenient and fully improves the efficiency of mass movies management.

Video Formats and Extensible Storage

Z9X PRO has built in a powerful player, supporting BD/UHD Blu-ray (BDMV/ISO), 3DMVC (Blu-ray, MKV), MKV, M2TS, MTS, TS, MP4, MOV, AVI, MPG, MPEG, VOB, FLV, 3GP, TP etc. What's more, it could connect with drives and hard disks (up to 16TB).NFS and SMB serves could be read in the same LAN.

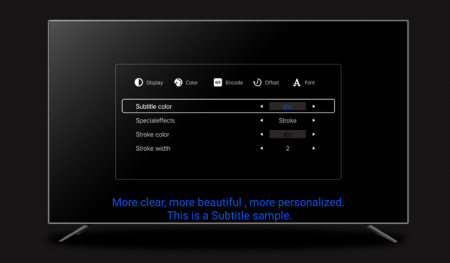

Powerful Subtitle Features

Z2600 can automatically search and match subtitles for movies on the Internet. PGS,ASS, SSA, SUP, SUB and ST subtitle formats are supported. Subtitle font, color, special effect, location could be customized. MKV and Blu-ray forced subtitles are also supported.

Lossless Music Playback

Support master-level DSD (SACD ISO, DFF,DSF,DSD etc.), regular lossless formats (FLAC, WAV, APE, DTS etc.), CUE track and CD-ROM playback (CD-ROM is not included).

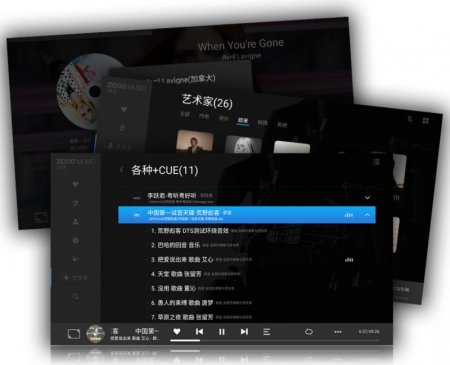

Music Library Management

Music resources from network drives and local hard drives could be added and managed to generate exclusive music library. Music could be collected and managed in a brand-new way.

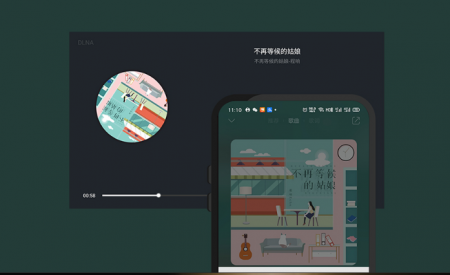

Wireless Casting

Z9X PRO supports DNA network protocol, videos could be cast from cell phone or tablet to a large screen, while audios could be played synchronously on display devices from cell phone music APP (third-party video casting APP and music streaming APP are needed to install manually).

Music Streaming

Z9X PRO is compatible with third-party music libraries to experience music streaming services, just like high-end streamers.

Network Sharing Protocols

Z9X PRO supports Gigabit network transmission, it could work with NFS, SMB v1/v2/v3, UPnP network protocols. It will automatically scan all available network drives in the LAN and read data quickly and reliably. NAS, PC and other servers are supported.

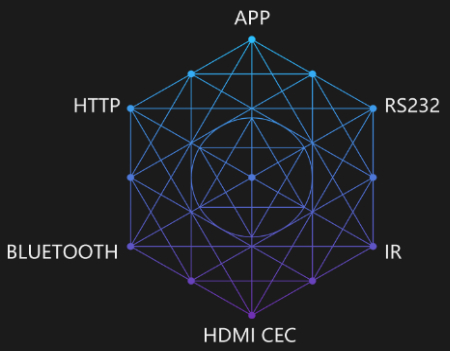

Smart Control System

Apart from ZIDOO Controller cell phone APP, ZID0O also supports HTTP (standard WOL are supported), R$232, HDMI CEC, Bluetooth and I control methods for smart control system.

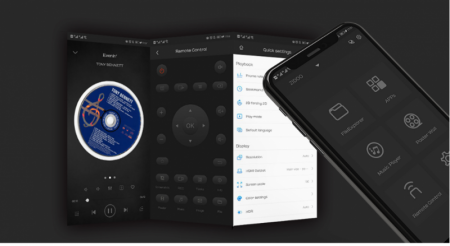

Controller APP

ZDIOO Controller APP could control media players seamlessly in LAN. Home Theater and Music Player could be set on cell phone without suspending audio and video playback. Music could be played without turning on displaying device. And media players could be powered on/off without remote control.

Specifications:

• Model: Z9X PRO
• Display Screen: LED
• Chassis: Aluminum alloy
• OS: Android 11
• CPU: Realtek RTD1619BPD ARM Quad-A55
• GPU: ARM Mali-G57
• RAM: 4GB DDR4
• Internal Storage: 32GB eMMC
• Bluetooth: BT 5.2
• Wifi: 2.4G + 5G dual-band WiFi, 802.11 a/b/g/n/AC/AX 2T2R , 802.11ax MIMO OFDM
• Ethernet: RJ-45 Ethernet jack (10/100/1000Mbps) * 1
• HDMI Output: HDMI 2.1, support up to 4K @ 60p, HDR, 12Bit, YCbCr 4:4:4 color space, support audio pass-through
• Video Decoding: 4K@60p HEVC/H.265 12Bit HDR10, HDR10+, Dolby vision
• Audio Decoding: Support truehd audio pass-through and LPCM 2.0 channel
• Intelligent Control: APP control, RS-232, TCP/IP control(WOL)
• Power Supply: DC 12V 2A
• SATA: SATA 3.0 * 1
• USB: USB 3.0 * 1 USB 2.0 * 2
• Other Interfaces: 3.5mm AV OUT * 1 SPDIF(2CH,5.1CH) * 1 3.5mm RS232 * 1 External high-gain antenna * 2
• Accessories: Remote control * 1 Power adapter * 1 SATA cable *1 User manual * 1
