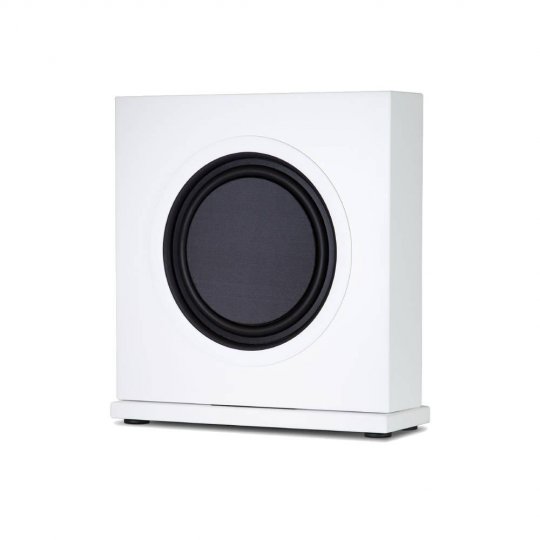

This In-Room Subwoofer offers several elegant and highly versatile solutions. Measuring a mere 15 3/4" x 15 3/4" x 4 3/4", the CSIR SUB can disappear into the decor of any room, but its stylish design is a feature in and of itself.
CustomSound™ CSIR SUB can be placed in 3 distinct ways. It can be mounted on a narrow, low profile plinth and placed upright. It can also be set on its back allowing it to be tucked out of the way, behind or under furniture. It comes with a mounting bracket, enabling the subwoofer to be wall mounted to maximize floor space.
The 10", high performance shallow driver offers deep and resonant bass well beyond its modest size.
Features:
- Ultra-Slim 10" Passive In-Room Subwoofer
- Three Placement Options:
- On-Wall with supplied mounting bracket
- On-Floor with supplied base
- Laid on its back for under or behind furniture
- High excursion, shallow driver with Glass fiber / PMI
- Foam sandwich cone, dual rubber surround
- Renowned PSB sonic signature, well suited for either music or home theater
- Design and final voicing engineered by Paul Barton
- ISO Acoustic feet for improved isolation and sound clarity
- Ideal match with CS500W subwoofer amplifier
- Gross Dimensions (w/o base):15¾ x 15¾ x 4¾" (W x H x D)
- Gross Dimensions (w/ base):15¾ x 17 x 5¼" (W x H x D)
Specifications:
Frequency Response:
- Frequency Response: 25-150Hz
Sensitivity:
- Anechoic Chamber: 88dB
- Listening Room: 90dB
Impedence:
Acoustic Design:
- Woofer (Nominal):
- 10" (254mm)
- Glass fiber / PMI foam sandwich cone
- Die Cast Basket
- Rubber Surround
- Balanced Drive motor structure
Recommended Power:
- Recommended Power: 40-200 Watts
Construction
- Cabinet: MDF
- Grille Face: Acoustic Transparent Cloth
- Grille Frame: Wood
Size (W x H x D):
- Net Width: 15 3/4 "(400mm)
- Net Hieght: 17" (432mm)
- Net Depth: 5 1/4" (133mm)
Brackets:
- Wall Bracket: Included
- Floor Stand: Included
