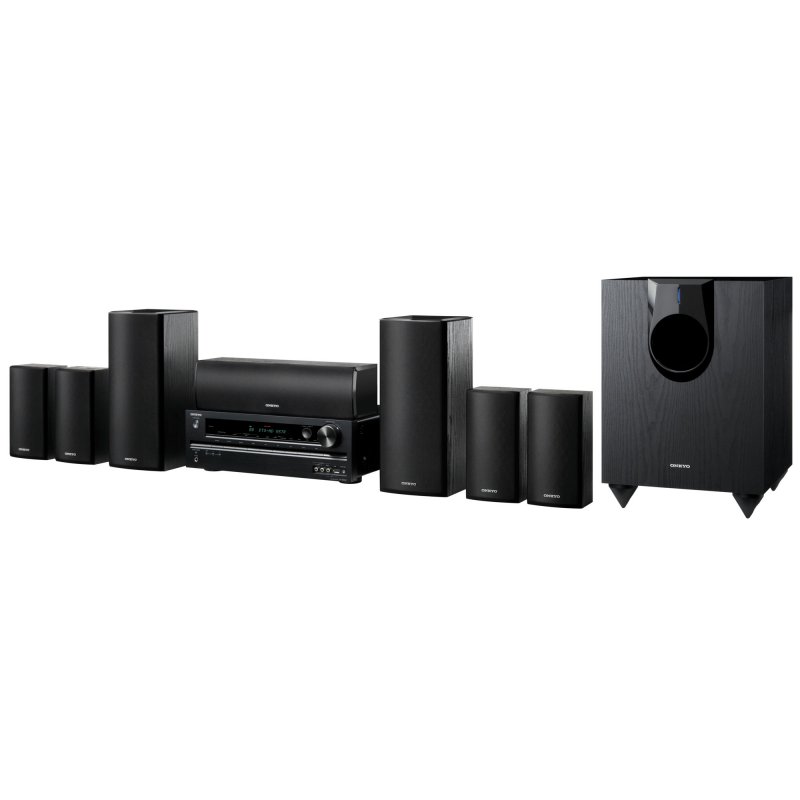

Fully Immersive 7.1-Channel Home Theater on a Budget
Step up to 7.1-channel home entertainment with the Onkyo stamp of quality. The HT-S5400 gives you the flexibility to harness the two extra front-height channels of Dolby® Pro Logic® IIz. Now movies, games, and music come alive with atmosphere and realism. When it comes to set-up, Audyssey 2EQ® ensures the surround soundstage is adjusted to the proportions of your living room. And thanks to the system’s HDMI® functionality, you can take advantage of Onkyo’s convenient overlaid on-screen display to adjust settings with a minimum of fuss. Naturally, the receiver’s four HDMI inputs also handle 3D video and high-def audio from Dolby® TrueHD and DTS-HD Master Audio™. Other connectivity highlights include a handy front-panel USB input that lets you send a clean digital signal from your iPod®/iPhone® to the receiver, and front-panel analog A/V inputs for easy connection of a game console or camcorder. To provide greater bass impact without taxing the receiver, the package includes an independently powered subwoofer.
Special Features
- HDMI Support for 3D Video and Audio Return Channel
- Direct Digital Connection of iPod®/iPhone® via Front-Panel USB Port
- Total 1030W with a Powerful 10-inch 120W Powered Subwoofer
- Dolby® Pro Logic® IIz Adds New Dimensions to Surround Sound
- A Suite of Audyssey Technologies for the Ideal Listening Environment
Amplifier Section |
|
| Power Output | - |
| Front L/R (6 ohms, 1 kHz, 1%, 1 channel driven, FTC) | 130 W/Ch |
| Center (6 ohms, 1 kHz, 1%, 1 channel driven, FTC) | 130 W/Ch |
| Surround L/R (6 ohms, 1 kHz, 1%, 1 channel driven, FTC) | 130 W/Ch |
| Surround Back L/R (6 ohms, 1 kHz, 1%, 1 channel driven, FTC) | 130 W/Ch |
| Dynamic Power | 180 W (3 ohms) 160 W (4 ohms) 100 W (8 ohms) |
| THD+N (Total Harmonic Distortion + Noise) | 0.08% (20 Hz-20 kHz, Half power) |
| Damping Factor | 60 (Front, 1 kHz, 8 ohms) |
| Input Sensitivity and Impedance | 200 mV/47 k-ohms (Line) |
| Rated RCA Output Level and Impedance | 200 mV/470 ohms (Rec out) |
| Maximum RCA Output Level and Impedance | 2.0 V/2.2 k-ohms (Rec out) |
| Frequency Response | 20 Hz–50 kHz/ +1 dB, -3 dB (DSP Bypass) |
| Tone Control | ±10 dB, 50 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-Noise Ratio | 100 dB (Line, IHF-A) |
| Speaker Impedance | 6 ohms–16 ohms |
Video Section |
|
| Input Sensitivity/Output Level and Impedance | - |
| Video | 1.0 Vp-p/75 ohms (Component) 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR) 1.0 Vp-p/75 ohms (Composite) |
| Component Video Frequency Response | 5 Hz–100 MHz |
Tuner Section |
|
| Tuning Frequency Range | - |
| FM | 87.5 MHz–107.9 MHz |
| AM | 530 kHz–1,710 kHz |
| FM/AM Preset Memory | 40 stations |
General |
|
| Power Supply | AC 120 V, 60 Hz |
| Power Consumption | 4.5 A |
| Standby Power Consumption | N/A |
| Dimensions (W x H x D) | 17 1/8" x 5 7/8" x 12 15/16" (435 x 150 x 328 mm) |
| Weight | 18.1 lbs. (8.2 kg) |
Speaker Section |
|
| Speaker Type | - |
| Front/Center | 2-way, bass reflex |
| Surround | Full-range |
| Surround Back | Full-range |
| Subwoofer | Bass reflex powered |
| Drivers | - |
| Front | 5" (12 cm) cone woofer, 1" (2.5 cm) balanced-dome tweeter |
| Center | 3 1/4" (8 cm) cone woofer x 2, 1" (2.5 cm) balanced-dome tweeter |
| Surround | 3 1/4" (8 cm) cone |
| Surround Back | 3 1/4" (8 cm) cone |
| Subwoofer | 10" (25 cm) cone |
| Frequency Response | - |
| Front/Center | 55 Hz–50 kHz/65 Hz–50 kHz |
| Surround | 80 Hz–20 kHz |
| Surround Back | 80 Hz–20 kHz |
| Subwoofer | 25 Hz–150 Hz |
| Output Sound Pressure Level | - |
| Front | 85 dB/W/m |
| Center | 86 dB/W/m |
| Surround | 81 dB/W/m |
| Surround Back | 81 dB/W/m |
| Subwoofer | - |
| Max. Input Power | - |
| Front/Center/Surround | 130 W |
| Surround Back | 130 W |
| Subwoofer | - |
| Max. Output Power | - |
| Subwoofer | 120 W |
| Nominal Impedance | - |
| Front/Center/Surround | 6 ohms |
| Surround Back | 6 ohms |
| Subwoofer | - |
| Input Sensitivity/Impedance | - |
| Subwoofer | 550mV/20 k-ohms |
General |
|
| Dimensions (W x H x D) | - |
| Front | 6 1/8" x 14 13/16" x 6 11/16" (155 x 375.5 x 170 mm) |
| Center | 16 9/16" x 4 1/2" x 4 3/4" (420 x 115 x 121 mm) |
| Surround | 4 1/2" x 9 1/16" x 3 3/4" (115 x 230 x 96 mm) |
| Surround Back L/R | 4 1/2" x 9 1/16" x 3 3/4" (115 x 230 x 96 mm) |
| Subwoofer | 12 1/2" x 18 1/4" x 15 11/16" (317.5 x 463 x 398 mm) |
| Weight | - |
| Front | 5.7 lbs. (2.6 kg) |
| Center | 5.1 lbs. (2.3 kg) |
| Surround | 2.2 lbs. (1.0 kg) |
| Surround Back | 2.2 lbs. (1.0 kg) |
| Subwoofer | 23.8 lbs. (10.8 kg) |
One-Year Manufacturer's Warranty
This item is features a one-year parts and labor warranty.Product Details
