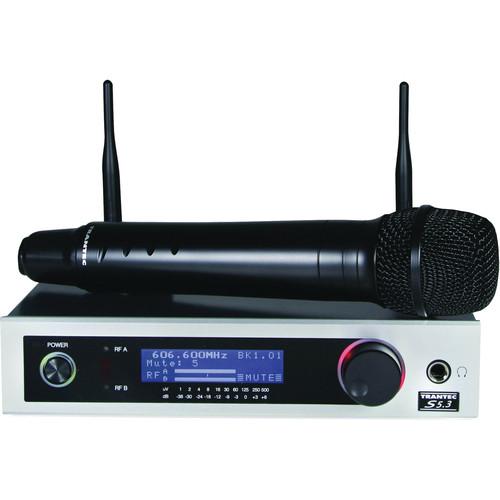

UHF True Diversity Handheld Dynamic Mic System
The S5.3 Series is widely used by semi professional and professionals in theater, concerts and broadcasting thanks to it’s easy to use and reliable performance. Enabling up to 12 simultaneous channels to run at once, the S5.3 Series boasts an exceptional performance/cost ratio for venues of any size.
Features:
12 Channels
Up to 12 channels can run simultaneously
UHF Dual Conversion Receiver
Fully synthesized UHF dual conversion receiver
Long Battery Life
A single AA battery gives up to 10 hours of quality performance with a range of up to 100 meters
Receiver
- True diversity operation
- Up to 640 selectable frequencies
- USB based computer monitoring
- Frequency scan function
- Integral tone grip/noise and signal strength mute circuit for protection against external interference
- Simple programming of transmitter with built-in Infra-red data link
- Clear and intuitive LCD displays
- Professional metal enclosure
Handheld Transmitter
- Simple programming of transmitter with built-in infra-red data link
- Frequency and Power lock facility
- Single AA transmitter battery life of approx 10 hours.
- Integral antenna
- Clear and intuitive LCD display
- Colour coded ID Band
- Professional metal enclosure
Specifications:
Receiver:
- Power Consumption: 300 mA (13V DC)
- Diversity System: Space Diversity (true diversity)
- Audio Output Line: -22dB / Mic: 62dB
- Antenna Phantom Power: 9V DC, 30 mA (max)
- Receiving Sensitivity: 0 bD μV or less(12dB SINAD)
- Squelch Sensitivity: 6-36dB μV variable
- S/N Ratio: Over 110dB (A-weighted)
- Harmonic Distortion: Under 1% (typical)
- Frequency Response: 50Hz-20kHz, +3dB
- Dimensions: 210(W) x 46(H) x 210(D) mm (8.3" x 1.8" x 8.3") excluding antenna
- Weight: 1.3kg (2.87lbs)
Handheld Transmitter:
- RF Carrier Power: Max. 30mW or less
- Maximum Input Level: 146dB SPL
- Audio Frequency Response: 60 Hz - 20kHz
- Dynamic Range: 110dB or more
- Battery Life: Approx 10 hours
- Power Supply: Single AA battery
- Dimensions: 247.9 x ø50 mm (2" x 9.8")
- Weight: 380g (13.4oz) with battery
