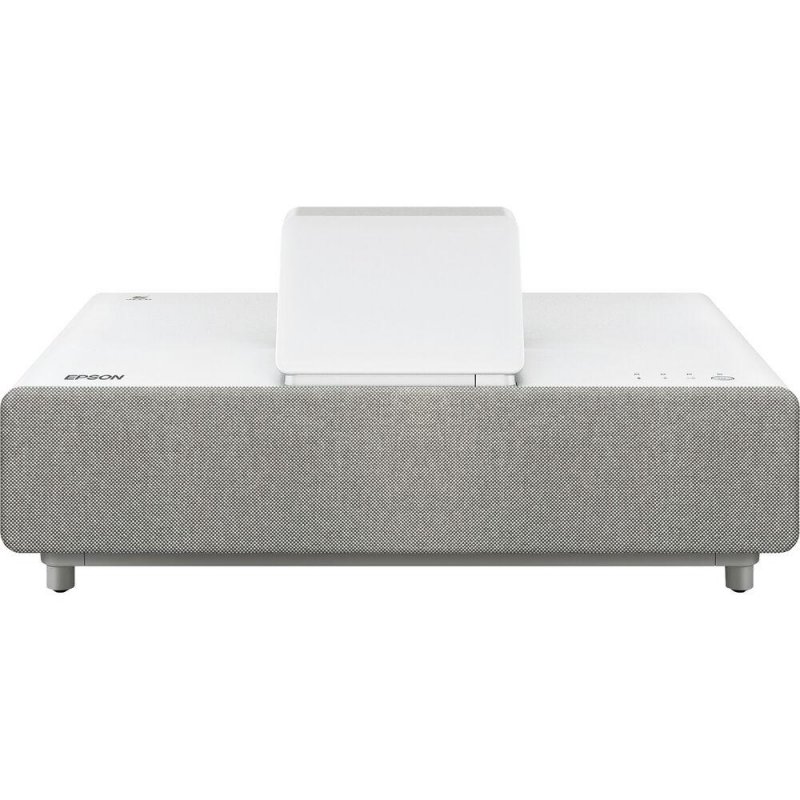

Introducing Epson EpiqVision™ Ultra LS500 Laser Projection TV

Go Epic!

With an immersive 4K HDR viewing experience, the Epson EpiqVision Ultra LS500 Laser Projection TV1 represents a new generation of digital projection that redefines the everyday television experience by offering a stunning 100" picture.

Equipped with proprietary 4K PRO-UHD® 3LCD technology, the Epson EpiqVision Ultra LS500 Laser Projection TV combines an advanced, ultra-short throw laser-array projector - along with a high resolution, ambient-light-rejecting screen - to produce vivid colors and deep blacks for an exceptionally bright, colorful and sharp picture in virtually any viewing environment.

Whether you're watching a live sporting event, streaming your favorite series, gaming on the latest generation of consoles, or watching a blockbuster movie, the Epson EpiqVision Ultra LS500 Laser Projection TV will simply amaze you.

• Immersive 100" Display
• New Ultra-Short Throw Laser-Array Technology
• 4K PRO-UHD Projection Technology
• Incredibly Bright Picture
• 10-bit HDR Color Processing

A Complete Solution

Epson EpiqVision Ultra LS500 Laser Projection TV includes an ultra-short-throw laser projector with an ultra-high-resolution, ambient-light-rejecting screen for an exceptionally bright, colorful and sharp picture.

Ultra-short-throw Laser-Array Technology

A new type of laser projection that produces a stunning 100" display, while being just inches from the wall itself. No complex wiring or ceiling mount required.

Beautiful 100" ALR Screen

High-resolution ambient-light-rejecting screen produces an amazing wide-angle viewing experience with virtually zero glare.

4K PRO-UHD Projection Technology

Advanced processing for resolution enhancement, color and image processing, resulting in an exceptionally sharp picture.

Incredibly Bright Picture

Displays 4K HDR content at an exceptional level of brightness of 4000 lumens in color; for all-day viewing in virtually any lighting environment.

Advanced HDR Processing

10-bit HDR processing accepting 100 percent of the source information to faithfully reproduce HDR content for an exceptional visual performance.

• Outstanding Color Accuracy - advanced 3-chip 3LCD technology capable of displaying the Rec.709 color space
• Dynamic Contrast Ratio Exceeding 2,000,000:1 - advanced black density control individually pulses the laser light to precisely suppress stray light within the signal for incredible deep blacks
• Digital Picture Processing - real-time 12-bit analog-to-digital video processing for smooth tonal transitions; eliminates banding, blocking and other compression artifacts
• Latest 18 Gbps HDMI 2.0 with ARC Support - fully compatible with virtually all color formats, depths and spaces; including most 4K HDR content at a full 60 Hz
• Powered by Android TV™ - included Android TV operating system with a simple-to-use remote - including voice search with built-in Google Assistant™; stream live TV with popular apps

Eco Features:

• Recyclable product
• RoHS compliant
• Epson America, Inc. is a SmartWay™ Transport Partner

Specifications:

Projector:

• Projection System: True 3-chip (3LCD) Ultra Short-throw
• Smart TV Operating System: Included Android TV
• Projection Method: Tabletop Front Facing
• Screen Type: Ceiling Light-rejecting Thin-bezel Fixed Frame
• Screen Size: 100-inch 16:9
• Projector Color: White
• Driving Method: Poly-silicon TFT Active Matrix
• Maximum Resolution: 4096 x 2160
• Supported Resolutions: 3840 x 2160, Full HD 1080p/i, HD 720p, 576p/i, 480p/i
• Native Aspect Ratio: 16:9 widescreen (4:3 resize, 16:10 and 1.9:1 resize)
• Pixel Arrangement: Cross Stripe
• Liquid Crystal Type: Vertical Alignment
• Micro Lens Array: Yes
• Focus Control: Precision Analog Slider
• Output Refresh Rate: Up to 60 Hz
• Color Brightness: Color Light Output: 4,000 lumens
• White Brightness: White Light Output: 4,000 lumens
• Dynamic Contrast Ratio: Over 2,000,000:1 (Color Mode: Dynamic; Consumption: Normal; Zoom: Wide)
• Maximum Color Gamut: Rec.709
• Chroma Subsampling: 4:2:2 (4K 60 fps HDR10), 4:4:4 (4K 30 fps HDR10), 4:4:4 (4K 60 fps no HDR)
• Color Reproduction: Full 10-bit (up to 1.07 billion colors)
• Throw Ratio Range: 0.28 (Zoom: Wide), 0.38 (Zoom: Tele)
• Size (Projected Distance from Lens): 100" (lens to screen 24.6"; front to screen 30.2"; back to screen; 15.4")
• Keystone Correction Vertical: ± 3 degrees | Horizontal: ± 3 degrees
• High Dynamic Range: HLG and Full 10-bit HDR
• Real-time HDR Curve Adjustment Yes: - 16 Steps
• Digital Color Processing: Real-time 12-bit Analog-to-digital
• Light Source: Laser diode
• Dynamic Laser Life: Up to 20,000 hours (Power Consumption: Normal, Quiet)

Projection Lens:

• Type: Manual focus
• F-number: 1.5
• Focal Length: 3.9 mm
• Zoom Ratio: 1.0 - 1.35 Digital Zoom

Other Features:

• Built-in Audio: Front-firing 10 W Stereo Speakers
• Instant: ON/OFF Yes
• 3D Compatibility Yes - Using Active RF 3D Glasses
• Computer Compatibility: PC, Mac®
• Operating Temperature: 41° to 95° F (5° to 30° C) (20% - 80% humidity, no condensation)
• Power Supply Voltage: 100 - 240 VAC ± 10%, 50/60 Hz
• Power Consumption:
• ECO Mode: 236 W
• Normal Mode: 381 W
• Networked Standby: 2.0 W
• Energy Saving: 0.5 W
• Fan Noise:
• Quiet Mode: 23 dB
• Normal Mode: 36 dB

Interfaces:

• Audio Out: 1x (Stereo mini)
• HDMI®: 3x 2.0 (18 Gbps)/HDCP 2.2 (1 ARC, one in front used by Android TV dongle)
• RS-232C: 1x
• USB Type A: 2x (one in front used by Android TV dongle)
• LAN (RJ-45): 1x

Dimensions - Projector (W x D x H):

• Excluding Feet: 18" x 14.7" x 8.2"
• Including Feet :18" x 14.7" x 9.0"
• Weight: 20.5 lb

Remote Control:

• Infrared Receiver Features: Front and rear directional
• Operating Distance: Front/Rear: 19.7' (6 m)
• Operating Angle:
• Rear: Left/Right: +/- 55 degrees
• Upper/Lower: +75 degrees to +15 degrees
• Front: Left/Right: +/- 30 degrees
• Upper/Lower: 0 degrees to +60 degrees

Screen:

• Gain: 0.6
• Viewing angle: 170º
• Throw ratio: <0.3
• Ambient light rejection: yes

Dimensions - Screen (D x W x H):

• Projection area 100" screen (W x H): 87.2" x 49.0"
• Overall 100" screen (D x W x H): 1.2" x 88.0" x 49.9"
• Weight: 100" screen: 24.3 lbs

What's In The Box:

• 100" Epson EpiqVision ALR display with wall brackets
• Epson LS500 Ultra-Short Throw Laser Array Projector
• Power cord
• Remote control with AAA batteries
• Android TV dongle with remote control and AAA batteries
• HDMI extension cable
• USB extension cable
• Quick Setup Guide
• Ships in 1 box
