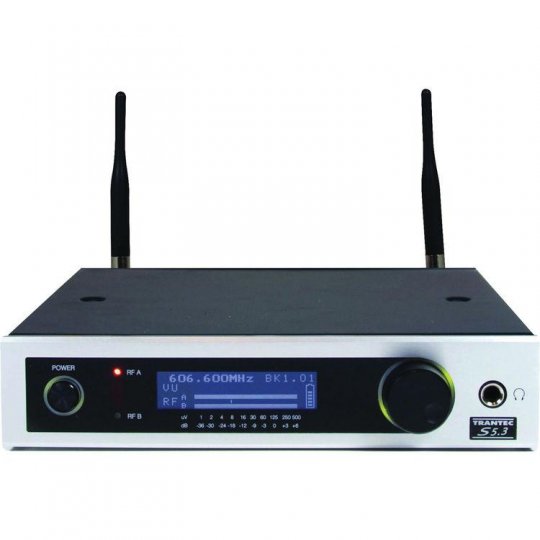

TOA S5.3-RX-H2 Q 12 Channel True Diversity Wireless Tuner, H2: 576-606MHz

$399.00

Secure One-Page Checkout
Get 16 Miles When you spend $399.00. See details
TOA Authorised
This product is brand-new and factory sealed TOA S5.3-RX-H2 Q  Special Order
UPC : TBD   5% Price Promise
Warranty : 1yr Manufacturer Special Order Return Policy
Shipping : FREE in Canada Shipped when Received


Instant rebate with code BASEMENT until May 2.

$133/mo suggested payments with 3 month special financing now with Flexiti.Get approved for financing in under 3 minutes


Fully synthesised UHF dual conversion receiver with features including graphic LCD, display jog wheel, IR data link, and headphone monitor.

  • True diversity operation
  • Up to 640 selectable frequencies
  • USB based computer monitoring
  • Frequency scan function
  • Integral triple tone grip/noise and signal strength mute circuit for protection against external interference
  • Simple programming of transmitter with built-in Infra-red data link
  • Clear and intuitive LCD displays
  • Professional metal enclosure.

Specifications:

  • Power Consumption: 300 mA (13 V DC)
  • Diversity System: Space diversity (true diversity)
  • Audio Output: Line: -22 dB*/ Mic: -62 dB* Line/Mic selectable, 600 Ω, balanced, XLR-3-32 type connector Headphone: max. 100 mW 16 Ω, unbalanced, phone jack -28 dB*, 600 Ω, unbalanced, phone jack
  • Antenna Phantom Power: 9 V DC, 30 mA (max) (Available to turn off phantom power)
  • Receiving Sensitivity: 0 dB μV or less (12 dB SINAD)
  • Squelch Sensitivity: 6 - 36 dB μV variable
  • Squelch System: Using together of noise SQ, carrier SQ and tone SQ
  • Indicator: LCD, Power lamp, Mute lamp, ANT A/B lamp
  • S/N Ratio: 110 dB or more (A-weight)
  • Harmonic Distortion: 1% or less (typical)
  • Frequency Response: 50 Hz - 20 kHz, ±3 dB
  • Function: Battery indicator (7 steps), Headphone output, Infra-Red link port, Channel scan, Monitoring software with USB connectivity
  • Dimensions: 210 (W) x 46 (H) x 210 (D) mm (8.27" x 1.81" x 8.27") (excluding antenna)
  • Weight: 1.3kg (2.87lb)
  • Frequency Bands: 606-622, 830-866, 854-865 MHz
