Functional Overview

• 430mm standard size, excellent texture with all-aluminum alloy brushed panel, frosted upper cover, thickened bottom and shockproof foot pad
• A new generation of Realtek RTD1619 DR hexa-core 64-bit A55 CPU with larger bus processing capacity and faster computing efficiency
• 4G DDR4 + 32GB eMMC large memory, 64-bit bandwidth, system is fluent
• XMOS+ESS9068 DAC supports hard decoding DSD512/PCM 768KHz 32Bit/MQA
• Supporting MQA, SACD ISO (stereo), DSF, DFF, WAV, FLAC etc. and seamless playback and CUE track
• Supporting USB DAC in as good as high end audio decoders, it is also compatible with Windows 7/10, MAC OS and Android
• High-quality switching power supply + large toroidal linear power supply, which is specially designed for audio and video circuits independently to ensure strong power source and good signal output
• High-fidelity audio decoding supports XLR full balance and RCA analog audio output
• Dual HDMI audio and video separate output can enjoy 4K video and HD audio at the same time without upgrading AV amplifier
• Android 9.0 operating system has significantly improved system performance and stability, the operation is more free and smooth
• Large LED display panel, dual hidden NSS patented HDD bays and each HDD bay support capacity up to 16TB
• The built-in VS10 image quality engine supports Dolby Vision processing and mapping any image to colors similar to Dolby Vision, which greatly improves the image quality
• HDMI 2.0 supports 4K 60Hz point-to-point output, HDR (HDR10/HLG/HDR10+/Dolby Vision), 12Bit, BT.2020 wide color range and YCbCr 4:4:4 color space. Supporting outputting raw three-dimensional multi-channel audio format based on object
• Processing HDR10 static metadata (MaxFall, MaxCll) more accurately which shows higher brightness and deeper black level
• Supporting acquiring and processing HDR10+ dynamic metadata, colors and brightness are obtained frame by frame and scene by scene
• More advanced Dolby Vision technology supports high-quality Dolby Vision low latency (LLDV) output, which can output the most suitable brightness for each frame and scene, shadow is darker while highlight is brighter, vision effect is amazing
• Automatic frame rate 23.976 and resolution ensures smooth movie playback without interruption
• Supporting external BD/DVD (unencrypted)/CD discs and CD ripping
• Complete BD/BD3D/UHD Blu-ray menu playback and Blu-ray seamless branching playback are supported
• Almost all common 3D video formats could be played, including MVC 3D (Blu-ray, MKV)
• Graphics special effects subtitles are supported and subtitles brightness can be adjusted. Subtitles can be downloaded. Zidoo is the only one among the field to support BLURAY and MKV forced subtitle
• Spotify music streaming and high-definition online video playback are supported. DRM Widevine L1 is also supported
• Home Theater app supports automatic poster scanning, movie trailers and custom classification and management
• The newly upgraded version of Music Player supports seamless playback, personalized configuration, associated lyrics and songs matching
• Standard WOL works well. Zidoo can be integrated into smart home with Control4 OS 3.0 control system (on/off can be controlled)
• Supporting the exclusive Zidoo Controller APP for iOS and Android mobile phones, which can seamlessly play and control Zidoo media players (on/off can be controlled)

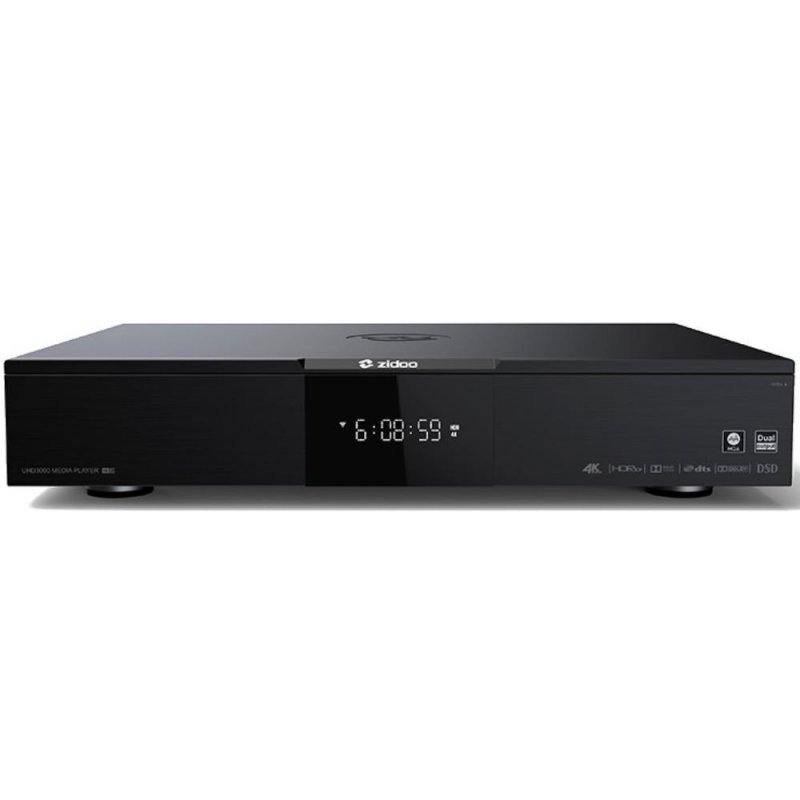

Ultimate HiFi Flagship

UHD3000 is our best product with multiple innovative underlying AV decoding technologies. A ultimate flagship media player combines UHD cinema player with HiFi audio-decoding. Excellent design and craftsmanship, top SOC and 4GB DDR4+32GB eMMC storage. Support Dolby Vision VS10 engine and advanced 4K 12Bit HDR10+/Dolby vision decoding. Support ESS 9068 DAC audio decoding, MQA, and DSD512 hardware decoding. Intoxicating HiFi music experience.

Exquisite Craftsmanship and Excellent Quality

Delicate Appearance

Auxiliary heat dissipation aluminum alloy chassis. Aluminum alloy brushed front panel and frosted upper cover. Solid and stable with outstanding texture.

Hidden Dual HDD Bays

Hidden dual HDD bays with beautiful design and easy to use. Up to 16TB for each HDD bay.

Large LED Display Panel

Various working status indicators. Brightness adjustment and on/off settings.

Multiple Gold-plated Ports

Multiple interfaces for various audio-visual equipments. Interfaces with gold-plated supply reliable performance.

Independent Dual Power Supplies

UHD3000 digital circuit and analog circuit are equipped with independent power supplies. A group of large toroidal linear power supply provides strong and clean power for audio components and has excellent efficiency to reduce external magnetic field interference. Another group of switching power supply is specially designed for digital circuits. The efficient direct current output improves the quality of audio and video output.

ESS9068 Monitor-Level DAC Audio Decoding

Zidoo has reached a deep and long-term strategic cooperation with the ESS. UHD3000 is the first one to be equipped with a new generation of ESS 32-bit HyperStream ESS9068 DAC decoder chip. In addition to supporting DSD512 and PCM768@32bit decoding, it also supports three-layer 8 times expanded MQA encoding format hardware decoding. It is the only media player among the field that can support MQA hardware decoding.

XMOS + Dual Crystal Oscillators

UHD3000 is equipped with XMOS chip. It works perfectly with Zidoo music player to process ultra-high-sampling master-level audio formats, and can losslessly transfer the original data 1:1 to high-index DAC for hard-decoding output. Two high-precision crystal oscillators (45.1584MHz and 49.152MHz) respectively correspond to 44.1KHz and 48KHz multiplier sampling, which effectively reduce jitter and ensure more accurate audio decoding.

High-end HiFi Audio Decoding

UHD3000 has a USB DAC IN port, which greatly expands the audio function. UHD3000 becomes a high-performance audio decoder after connecting to music streamer with SUB output. Sound quality is as good as high-end independent decoding device.

Fully Balanced Signal

UHD3000 adopts fully balanced design for the RCA stereo output, XLR output and DAC decoding. It provides better noise immunity. The channel separation degree is improved and the signal quality is more stable and powerful by eliminating the shared loop.

Exquisite Craftsmanship Handpicked Components

UHD3000 analog output can present audiophile monitor-level sound quality. The circuit design and materials are handpicked. The main board is made of immersion gold technology, which is equipped with four audiophile operational amplifiers and selected audiophile auxiliary components including NICHCON, WIMA, ELNA etc. Every detail is made with great effort to improve the audio quality.

Powerful CPU

UHD3000 is equipped with Realtek RTD1619DR A55 hexa-core 64-bit high-performance processor, which is greater bus processor capacity, response speed and more efficient calculation. The strong decoding performance helps achieving excellent audio-visual playback.

Large Memory and Internal Storage

2GB DDR4 large memory comes with fast and smooth playback response, which helps enjoying wonderful movie and music. 32GB eMMC super internal storage supports installing masses of favorite apps and create more possibilities for audio-visual entertainment.

Independent HDD Bays and HDMI AV Separate Output

UHD3000 has two independent SATA3.0 HDD bays, each of them supports one hard drive up to 16TB. Dual HDMI ports can support audio and video separate output. 4K@60P HDR 12Bit and native 3D immersive audio output. Best choice for audio and video enthusiasts.

4K HDR Video Technology

Zidoo aims to give users the ultimate experience of media players with years exploration of leading audio-visual technologies. UHD3000 is equipped with Realtek RTD1619DR hexa-core A55 processor which can easily decode HEVC/H.265 encoded 4K HDR video. Dolby Vision VS10 image quality processing engine is built-in, supports Dolby Vision LLDV processing and 3840 x 2160 60Hz 4K output. Even ordinary film can be processed to get the best picture quality performance.

Accurate Frame Rate Switching

UHD3000 supports switching original resolution and frame rate automatically and accurately (23.976, 59.94, 25, 30, 50 and 60). The new automatic switching algorithm allows completing the film frame rate switching in advance to ensure smooth and integral film playback.

Dolby Vision VS10 Image Quality Engine

UHD3000 integrates Dolby Vision VS10 image engine, which has adopted advanced dynamic metadata processing technology, so that the most suitable brightness could be output for images and scenes of each frame. Shadows are darker while highlights are brighter. Even in the dark and weak-light environment, it could also display the best visual effect. No matter what formats (Dolby Vision, HDR, HLG, SDR etc.) or displaying devices, whether HDR outputting or SDR converting, all could keep color accuracy and bring good experience to customers. Even normal TV could experience Dolby Vision technology.

Higher Level HDR10+

UHD3000 takes the lead in adding HDR10+ technology, which could not only display peak brightness up to 4000 nits, but also process metadata accurately for each frame. Namely, colors and brightness levels are obtained frame by frame and scene by scene, images could be displayed in details with wide dynamic contrast and richer colors.

12Bit Color Depth

UHD3000 new image engine not only supports 10Bit (approximately 1.07 billion colors) decoding and outputs at the resolution of 4K 60Hz, but also supports higher color depth 12 bit (approximately 68 billion colors) . 12 bit has vibrant colors and natural color transition.

Wider Color Range

UHD3000 supports BT.2020 wide color range which can display 75% nature colors and closer to what human eyes see, while traditional BT.709 could only display 35% nature colors. It has bright and eye-catching colors, rich and full images, and a better sense of space, three dimension and layering.

Android 9.0

Based on deep development of Android 9.0, the system performance of UHD3000 has greatly improved with better stability and compatibility. Masses of apps could be installed. DRM widevine L1 is also supported.

Cool Poster Wall

UHD3000 comes with new movie posters management system in new algorithm. It has concise navigation, personalized category, record viewing and custom collection etc. It makes movie collection more convenient and fully improves the efficiency of mass movies management.

Smooth Blu-ray Seamless Branching Playback

UHD3000 optimizes the video playback engine, which improves the Blu-ray seamless branching playback and says goodbye to stuttering and messy playback issues. BD and UHD Blu-ray menus are played just like enjoying movies in a cinema.

Convenient Subtitle Download and Subtitle Setting

UHD3000 supports downloading subtitles and multiple subtitle formats such as PGS, ASS, SSA, SUP, SUB, SRT, etc.; Subtitle font, color, special effects and location can all be customized ; The brightness of graphic subtitles (embedded PGS and external ASS special effects subtitles) can be adjusted, which led the way of the industry ; MKV and Bluray format forced subtitles are also supported.

Smart Music Library

Music library can be generated from both network drive and local hard drive. It is so powerful that we could collect and manage masses of audio files and enjoy lossless music.

Master-tape Level Audio Decoding

UHD3000 music player supports to play both lossless formats FLAC, WAV, APE, DTS, etc. and master-tape level music formats MQA, DSD512 (SACD ISO/DFF/DSF/DSD). Various sampling formats, CD-ROM playback and CD ripping are also supported (external CR-ROM is required).

Music Streaming

UHD3000 is perfectly compatible with Roon Ready and Spotify. Support network streaming like high-end music streamer.

Roon is an incredibly rich and engaging way to browse and organize your music. It runs on most Mac, Windows, and Linux PCs, or on other products which include Roon Core. Being Roon Ready means that ZIDOO network players transparently discover and connect to Roon without any configuration, and bit-perfect audio is delivered from Roon to your network player. Together, Roon and ZIDOO deliver the power, flexibility, and performance of networked audio, with the easiest setup and highest reliability available.

Network Sharing Protocol

UHD3000 supports Gigabit network transmission, it could work with NFS, SMB v1/v2/v3, UPnP, FTP network protocols. It will automatically scan all available network drives in the LAN and read data quickly and reliably. NAS, PC and other servers are supported.

Zidoo Controller APP

Zidoo Controller APP could control media players seamlessly in LAN. Home Theater and Music Player could be set on cell phone without suspending audio and video playback. Music could be played without turning on displaying device. And media players could be powered on/off without remote control.

Smart Control System

Apart from Zidoo Controller cell phone APP, Zidoo also supports HTTP (standard WOL is supported), RS232, HDMI CEC, Bluetooth and IR control methods for smart control system.

Exclusive ZIDOO UI Experience

Shining new audio and video playback system based on large screen scenario. A high-end UI system combines with concise UI design and convenient operation.

Initialization Boot Wizard

ZIDOO will lead you to finish the initialization of system when booting for the first time. Quickly done in only a few steps.

Comprehensive Media Center

ZIDOO Media Center is a powerful and comprehensive media management APP. All kinds of convenient ways to manage your files and medias.

Support file copy, cut, delete, sort and so on. Support NFS/SMB network drives auto scanning and connecting in LAN.

Powerful Video Playback System

Years of accumulated technical experience and hundreds of micro innovations. Accurate 23.976 and complex MPLS seamless branching playback.

Auto frame rate switching, HDR to SDR, Audio offset and 3D to 2D are supported.

Excellent Subtitle System

Automatically download and add external subtitles for playing media. Special effects subtitles are supported. Subtitles in ASS/SSA/SUP/SUB/SRT/PGS formats are all supported. Blu-ray and MKV forced subtitles are supported exclusively. Brightness adjustment of graphical subtitle formats(embedded PGS and plug-in ASS) is supported The Fonts, colors, position and effects of subtitles can be customized as you wish.

Music Player 6.0

Powerful ZIDOO Music Player 6.0 with smart cloud matching algorithm built-in. Support adding massive music files by one touch. Songs could be easily classified by genres, sampling rates, albums and artists. Support searching songs by artist, album and name initials. Support tracks playback with CUE descriptor.

Support various advanced customization menus. Support adding songs to your favorites folder.

Home Theater 4.0

ZIDOO Home Theater 4.0 has a completely new UI which is cool and beautiful. With flat navigations, customizable categories, movie classification and recommendation Support automatically matching movie posters and detailed info for movies.

Efficient processing of a batch of movies. Powerful search bar with searching by categories.

Shortcuts Key Customization

ZIDOO remote control shortcuts keys can be customized individually. APPs can be set to turn on conveniently by one key.

APP Installation

ZIDOO has multiple APP installation tools. APPs can be installed via USB drive, WEB Installer and ZIDOO Controller APP.

ZIDOO Controller APP

ZIDOO Controller APP which you can download from Google play store or Apple store and install to you Android phone or iPhone. It can help users to control audio and video playback in Home Theater and Music Player on you phone without suspending playing audio and video playback. It also has a remote controller built-in, you can conveniently power on/off the media player and even send strings and numbers to the media player directly. For example, it will be very helpful when you want to enter a long movie name to search with.

System Cleaning Assistant

ZIDOO Clean Up APP could manage ZIDOO APP and third-party APP easily. It could end up current running process.

Global CDN OTA Online System Upgrade

ZIDOO will release new firmwares regularly. ZIUI will automatically detect the latest system version and remind you to upgrade.

Power Management

ZIDOO system provides a variety of power management options. Including Power Off, Power Off by time, Standby, Standby by time and Reboot. Power On and standby via WOL network is supported. You can set to Power On or Standby after power on the media player.

Personalized System Settings

ZIDOO system has a series of personalized setting options. Brightness adjustment for display panel. Optional displaying by clock or playback time. Hard drive smart sleeping etc.

Specifications:

• Model: UHD3000
• Front Display: LED
• Chassis: Aviation aluminum alloy
• OS: Android 9.0
• CPU: Realtek RTD1619DR ARM Cortex-A55(hexa-core)
• GPU: ARM Mali-G51 MP3
• RAM: 4GB DDR4
• Internal Storage: 32GB eMMC
• Bluetooth: BT 4.2v
• WiFi: 2.4G+5G dual band WiFi, 802.11 a/b/g/n/AC 2T2R MIMO 867Mbps
• Ethernet: 1*RJ-45(10/100/1000Mbps)
• HDMI Output: 2.0a (4K@60fps/12Bit/HDR/BT2020/YCbCr 4:4:4 output) + 1.4 (Audio Only passthrough) separate audio and video output
• Video Decoding: 4K@60p, HEVC/H.265 12Bit, HDR10, HDR10+, Dolby Vision
• Audio Decoding:
  • Support HD audio passthrough and decode 2 channels
  • Built-in XMOS+ESS 9068 DAC, supporting DSD MQA decoding
• USB Audio Input:
  • USB audio input supports Windows 7, Windows 10, Mac and Android
  • Up to two channels DSD512, PCM 768KHz@32bit PCM, MQA decoding
• Other Audio Port: 1*Optical, 1*Coaxial, 1*RCA L/R, XLR L/R balanced
• Analog Audio Characteristics:
  • Frequency range: 20Hz-20KHz +/-0.35dB
  • SNR: > 128dBrA
  • THD+N: < 0.00026%
  • Output level: (XLR) 4.0±0.4Vrms. (RCA) 2.0±0.2Vrms.
  • DNR: > 125dB
  • Crosstalk: > 135dBrA
• Power Supply: AC 110~120/220~240V 50/60Hz (built-in switching power supply + linear power supply)
• USB: 2*USB3.0, 2*USB2.0
• SATA: 2*SATA3.0 and 3.5" HDD bay (HDD is not included)
• Other Ports: 1*IR input, 1*RCA composite video connector, 1*RS232
• Dimensions: 312mm*430mm*72mm
• Accessories: 1*remote control, 1*power cable and 2*antennas
