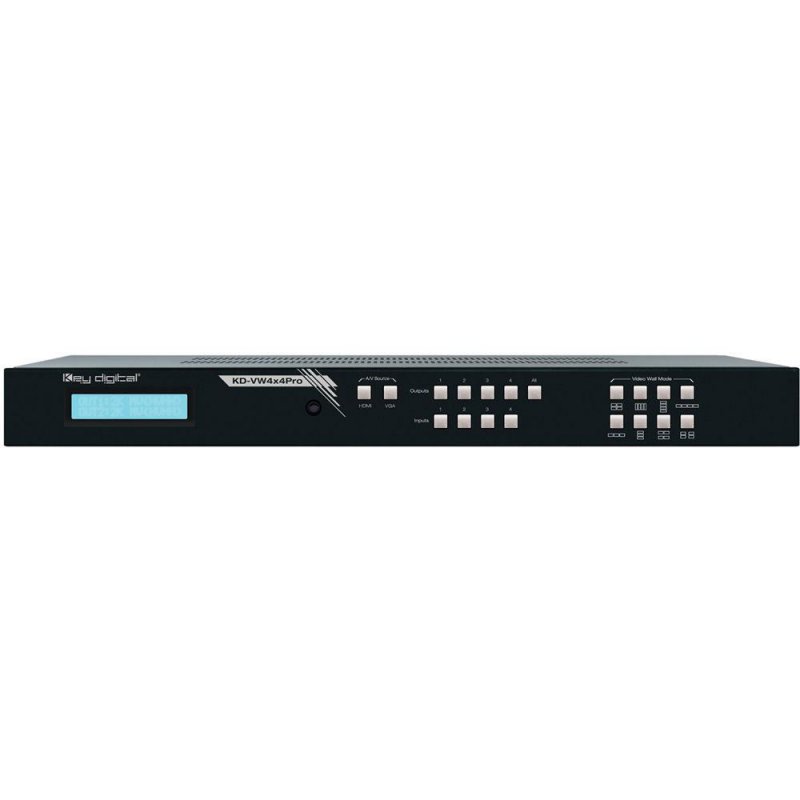

Key Digital KDVW4X4PRO HDMI Video Wall Processor
Brand New · Factory Sealed · Key Digital Authorized Dealer
$3,207.99
Free Canada-wide Shipping
•
Order Now : Ships Mon
end of _buybox_shipping
end of _buybox_core
end of _payments
end of _buybox_couponend of _xwarranty
- Low Stock : Order Soon
- Free shipping
- 1yr Manufacturer Warranty
- Pickup available: Richmond Hill, ON
- 5% Price Promise
Trusted by 150,000+ Canadian customers since 2001
4x4 Video Wall, Supports Seamless Presentation Matrix Switching
Features:
- HDMI Matrix Switching: 4 HDMI/Analog sources to 4 HDMI outputs, independent when in matrix mode
- Seamless Switching: Un-interrupted screen transitions during source selections
- Video Wall Processing: Transform consumer and professional displays into a video wall with eight video wall modes
- Horizontal (4): 1x4 Rotated, 1x4, 1x3, and two sets of 1x2
- Vertical (3): 4x1, 3x1, and two sets of 2x1
- 2x2
- Panel Flip: Enables use of consumer displays by mounting top row upside down
- Bezel Control: Create a fluid screen transition by removing pixels from top, bottom, left, and right border independently
- EDID: Internal library with 5 default EDID configurations for each input, in addition to native EDID data for any Output/Display
- Full Buffer ™ Technology: Full buffering of HDCP and EDID, for the fastest possible switching and viewing of any source/input to any display/output, regardless of multiple output viewing relation
- TMDS re-clocking: Support for long HDBaseT/CAT5e/6 or HDMI connections and many layers of connectivity.
- Deep Color Support: Up to 12 bits/color
- Control: Front panel buttons, Serial IR, Optical IR, RS-232, and TCP-IP, including video wall mode select, matrix switching, EDID Control and discrete on and off via IR
- Control System Support: Key Digital® app ready. Key Digital Management Software ™ Pro (KDMS ™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/IP supported control systems via open API.
- Key Digital App ReadyKey Digital® App Ready: Can be controlled over TCP/IP via Key Digital® App
Specifications:
Technical:
- Input (Each): 1 HDMI connector, Type A, 19 pin female; 1 HD analog video 15-pin female, 1 analog audio connector, 3.5mm stereo female
- Output (Each): 1 HDMI connector, Type A, 19 pin female
- Bandwidth: TMDS bandwidth 4.95 Gb/s
- Link: Single Link
- DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
- DDC Communication: EDID and HDCP Bi-directional Transparency from Display to Source
- Wired IR: Modulated IR signal input, 0-5V TTL or -10 to +10V, 3.5mm mono female connector with signal on tip
- Power: External Power supply, 12V 3A
General:
- Regulation: CE, RoHS, WEEE
- Rack Mount: 1U, Full Rack Width (rack ears included)
- Enclosure: Black Meta
- Product Dimensions: 17.25" x 7.1" x 1.75"
- Product Weight: 6.5 lb
What's in the box:
- Power supply (qty 1) 12V/3A, 36W, desktop type, model KDSP40W12VC
- IR Remote control: KD-RMVW4x4
- Rack Ears
Product Details
- Key Digital KDVW4X4PRO
-
Brand New : Factory Sealed
- UPC : 819505002941
- EFLC : 11969
- Write a review
Warranty
One Year Warranty
- Parts and Labour Warranty
- Canada-wide Coverage
- Key Digital Authorized
Returns
Easy Returns
- 14-day return window on eligible items
- Full refund issued in accordance with our return policy
