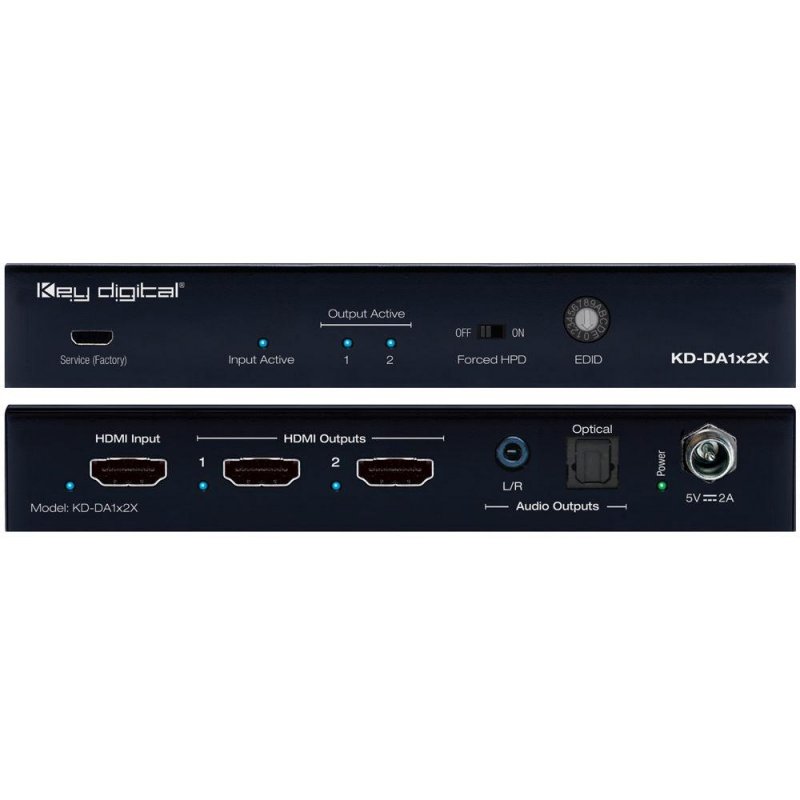

Key Digital KDDA1X2X 1x2 4K HDMI Distribution Amplifier
Brand New · Factory Sealed · Key Digital Authorized Dealer
$249.99
Free Canada-wide Shipping
•
Ships in 2 to 4 Days
end of _buybox_shipping
end of _buybox_core
end of _payments
end of _buybox_couponend of _xwarranty
- Available
- Free shipping
- 1yr Manufacturer Warranty
- 5% Price Promise
Trusted by 150,000+ Canadian customers since 2001
Features:
- HDMI Signal Distribution: 1 HDMI source to 2/4 HDMI outputs/displays
- Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
- HDCP Licensing: Fully licensed and compatible with HDCP 2.2
- HDR10 and Dolby Vision®: More life-like images through a greater range of luminance levels
- Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
- Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
- Audio De-embedding: Audio of the selected HDMI input is output at the digital Optical and analog 3.5mm stereo connectors
- Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
- EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the output/display 1
- Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio ™, and Dolby® Atmos
- CEC Disconnect: Prevents unwanted control of source
Specifications:
Technical:
- Input (Each): HDMI Connector, Type A, 19 Pin Female
- Output: HDMI Connector, Type A, 19 Pin Female
- Bandwidth: TMDS bandwidth 18 Gbps
- DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
- Power Supply: KD-PS5V2ASC, 5V/2A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector
General:
- Regulation: CE, RoHS, WEEE
- Enclosure: Black Metal
What's in the box:
- Power Supply (qty 1) 5V/1A, 5W, wall type, model KDSP5V2ASC
- Mounting Brackets: 2 L-shaped
Product Details
- Key Digital KDDA1X2X
-
Brand New : Factory Sealed
- UPC : 815996021003
- EFLC : 11938
- Write a review
Warranty
One Year Warranty
- Parts and Labour Warranty
- Canada-wide Coverage
- Key Digital Authorized
Returns
Return for In-store Credit
- 14-Day Return Period
- Satisfaction Guarantee
