Driving Your Music with Power and Panache

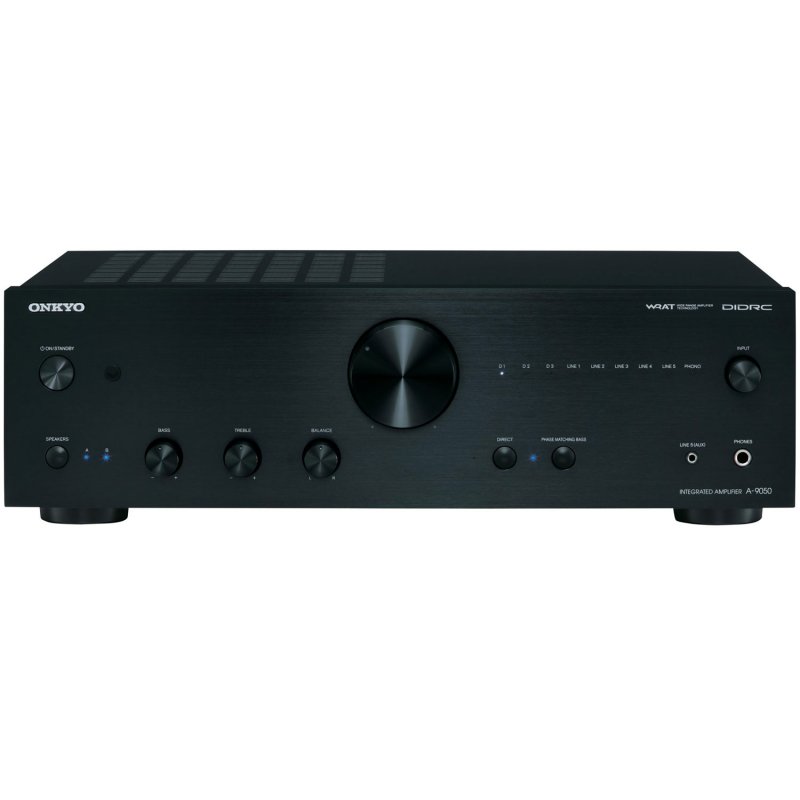

The A-9050 Integrated Stereo Amplifier offers the best of both worldsclassic analog power and the latest in digital audio processing technology. Whether you're transported by the mellow glow of vinyl, or just want to experience your computer based library with proper hi-fi sound, this is the amp for you. There are three digital inputs linked to a Wolfson 192 kHz/24-bit DAC, which allow you to exploit the potential of lossless formats such as WAV. Gold-plated audio terminals and gold-plated banana plug-compatible speaker posts ensure a perfect connection for your CD player, tuner, and loudspeakers. However, it's the sound quality that really puts this amplifier in a league of its o wn. Our low negative feedback WRAT design breathes energy and vitality into recordings that can otherwise seem lifeless and flat. As well as DIDRC to eliminate digitally generated noise, the amplifier's Three-Stage Inverted Darlington Circuitry boosts current flows and reduces distortion.

Plenty of good clean powerand a dash of Japanese audio innovationhas resulted in a stereo amp that's shaping up to become a new Onkyo classic.

COMPATIBLE MODELS

• Power Output :
• 8 ohms : 2 x 75 W/Ch
• Dynamic Power :
• 4 ohms : 2 x 65 W/Ch
• Audio in/out : 5/1
• Phono input
• WRAT (Wide Range Amplifier Technology)
• DIDRC (Dynamic Intermodulation Distortion Reductio
• Three-Stage Inverted Darlington Circuitry
• Tone control (Bass, Treble, Balance)
• Wolfson® 192 kHz/24-Bit DACs
• Two Large 10,000 microfarad Capacitors
• 3 Digital Audio Inputs (1 Optical and 2 Coaxial)
• 5 Analog Audio Inputs and 1 Output
• Customized, Gold-Plated, Banana Plug-Compatible

Amplifier Section

• Power Output : 75 W/Ch (8 Ohms, 1 kHz, 0.08% THD, 2 Channels Driven, FTC)
• Total Harmonic Distortion + Noise : 0.08% (1 kHz, 1 W Output)
• Damping Factor : 60 (1 kHz, 8 ohms)

Tone Control

• Line : 175 mV/33 k-ohms
• Phono MM : 4.8 mV/47 k-ohms
• Rec out : 175 mV/2.2 k-ohms
• Phono Overload : 100 mV (MM, 1 kHz, 0.5%)
• Frequency Response : 10 Hz100 kHz/+1 dB, -3 dB (Line 1)
• Bass : 14 dB, 100 Hz
• Treble : 14 dB, 10 kHz
• PM Bass : +8 dB, 80 Hz
• Signal-to-Noise Ratio : 110 dB (Line, IHF-A) 80dB (Phono, MM, IHF-A)
• Speaker Impedance : 4 ohms16 ohms (A or B), 8 ohms16 ohms (A + B)

General

• Power Supply : AC 120 V, 60 Hz
• Power Consumption : 160 W
• Standby Power Consumption : 0.2 W
• Dimensions (W x H x D) : 17 1/8" x 5 1/2" x 13" (435 x 139 x 330.3 mm)
• Weight : 18.1 lbs. (8.2 kg)
