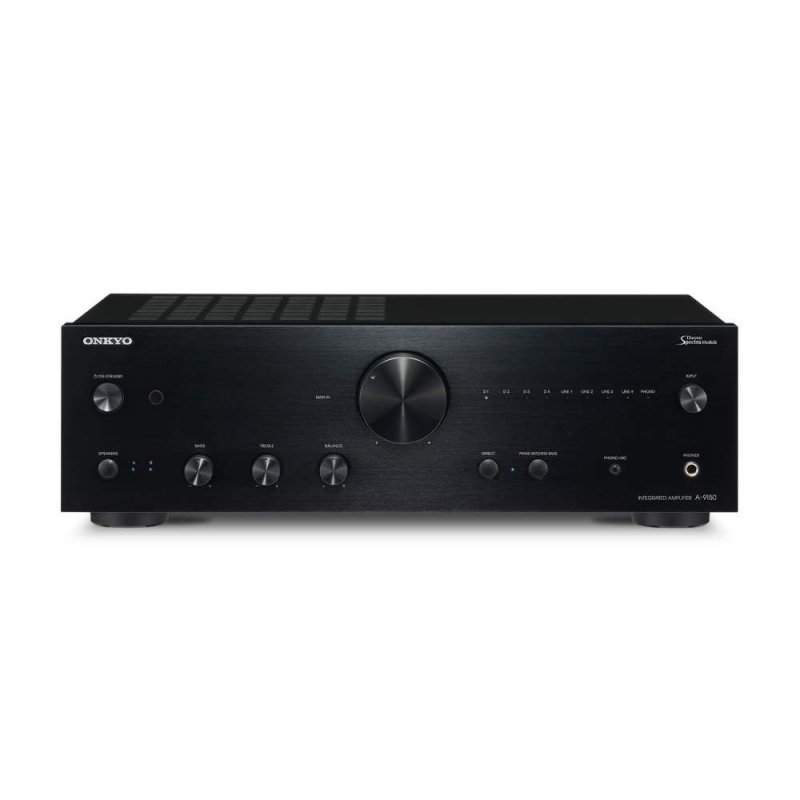

Building on acclaim for the award-winning A-9010, Onkyo again raises the bar for musicality in the entry class with its A-9150 Integrated Stereo Amplifier. Unique technologies coalesce around a refined amplification system to deliver outstanding transient response, superb dynamics, lifelike soundstaging, and nuanced articulation of your favorite analog or digital music. Key to this sense of realism is Discrete SpectraModule™, which boasts a slew rate of more than 500 V/µs for flat linearity up to megahertz bandwidth. Rediscover the vitality of analog with MM/MC phono input served by dedicated equalizers on a separate circuit board, with custom head-amp operating in discrete configuration for MC signals. Listeners with big CD libraries will discover new life in the format with AKM's premium 768 kHz/32-bit DAC (AK4452) enhanced by DIDRC Filter, an original circuit technology that cleanses signals of high-frequency noise. Backed by 70 years' experience in hi-fi design, the A-9150 invites you inside the energy of every musical performance.

Highlights

• Refined Power Amplification Circuitry with Discrete SpectraModule™
• Dedicated MM/MC Circuit Board and High Quality Discrete Head Amp
• High Current Power Supply
• Natural Music Reproduction with Hi-Grade DAC and DIDRC Filter
• Robust Flat Chassis
• Quality Audio Terminals

Advanced Features

• 60 W/Ch (4 Ω, 20 Hz–20 kHz, 0.08% THD, 2 Channels Driven, IEC)
• Discrete SpectraModule Produces High Instantaneous Voltage for Immersive Soundstaging, Improved Instrument Separation, and Lively Transient Response
• DIDRC Filter Prevents Ultra-high-frequency Distortion Affecting Audible Sound
• High Current Power Supply Transformer and Two Hi-Grade Customized Capacitors
• High-Current Low-Impedance Drive for Enhanced Speaker Control
• Optimum Gain Volume Control Circuitry Isolates Signal from Noise Floor to Prevent Distortion at Lower Volume
• Symmetrical L/R Channel Layout with Equal Signal-path Lengths to Minimize Stereo Playback Errors
• Isolated Processing, Pre-amplification, and Power Amplification Circuitry Reduces Electrical Interference on Audio Signal
• Large Extruded Aluminum Heat Sink
• AKM (AK4452) 768 kHz/32-bit Digital-to-Analog Converter
• Direct Mode for Reproduction Faithful to Original Source
• Front-panel A/B Speaker Drive Selector
• Available in Black or Silver Finish

Inputs And Connections

• 4 Gold-plated Analog RCA Audio Inputs (Rear)
• 2 Optical Digital Inputs (192 kHz/24-bit Capable)
• 2 Gold-plated Coaxial Digital Audio Inputs (192 kHz/24-bit Capable)
• 2 Pairs of Gold-plated Speaker Posts (A+B)
• Gold-plated Phono Input (MM/MC) to Suit Any Turntable
• 6.3 mm Headphone Jack
• Gold-plated Main Input
• Gold-plated Pre Out
• RI (Remote Interactive) Remote Control Input

Additional Features

• Tone Controls (Bass/Treble/Balance)
• Aluminum Front Panel and Aluminum Volume Control Knob
• Rigid Steel Chassis to Reduce Resonance
• Stable Isolator Feet Minimize Vibration-borne Interference
• Efficient 0.2 W Power Consumption on Standby
• Full-sized and Full-function RI Remote Control

Specifications:

• Power Output: 60 W/Ch (4 Ω, 20 Hz–20 kHz, 0.08% THD, 2 Channels Driven, IEC)
• THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz-20 kHz, Rated Power)
• Damping Factor: 80 (1 kHz, 8 Ω)
• Input Sensitivity and Impedance: 200 mV/220 kΩ (Line), 4.0 mV/47 kΩ (Phono MM), 0.4 mV/120 Ω (Phono MC)
• Rated RCA Output Level and Impedance: 0.2 V/2.3 kΩ (Line Out)
• Phono Overload (MM): 70 mV (1 kHz, 0.5%)
• Phono Overload (MC): 7 mV (1 kHz, 0.5%)
• Frequency Response: 10 Hz–100 kHz / +1 dB, -3 dB (Line 1, Direct)
• Tone Control: ±10 dB, 100 Hz (Bass), ±10 dB, 10 kHz (Treble)
• Signal-to-Noise Ratio: 107 dB (Line 1, IHF-A)
• Signal-to-Noise Ratio: 82 dB (Phono MM, IHF-A)
• Signal-to-Noise Ratio: 73 dB (Phono MC, IHF-A)
• Speaker Impedance: 4 Ω-16 Ω
• Headphone Output Impedance: 390

General

• No Sound Power Consumption: 35 W
• Power Consumption: 160 W
• Standby Power Consumption: 0.2 W
• Dimensions: (W x H x D) 435 x 139 x 331 mm
