Quality Home Theater Is Now Within Your Reach

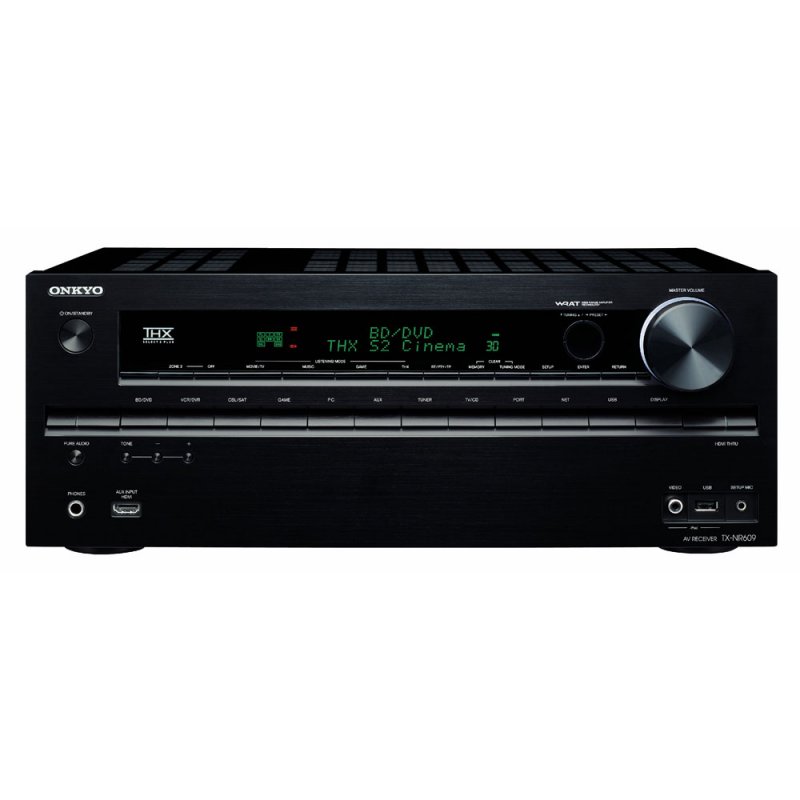

Targeting the sweet spot where affordability meets superb functionality, the TX-NR609 looks set to be another Onkyo classic. This THX® Select2 Plus™ Certified A/V receiver handles content from all your favorite disc-based media, as well as networked audio content from the internet, iPod®/iPhone®, and PC. Six HDMI® inputs—including one on the front panel—provide support for 3D video and ultra-high resolution 4K video upscaling via Marvell Qdeo™. HDMI also carries master-quality audio formats from Dolby and DTS, as well as the expanded surround sound of Audyssey DSX™ and Dolby® Pro Logic® IIz. Three-stage inverted Darlington circuitry and Onkyo’s proprietary WRAT ensure a clean and compelling amplifier performance. And when audio signals are output, the 7.2-channel configuration includes twin subwoofer pre-outs for added bass impact. Meanwhile, a user-friendly on-screen display and GUI make it easy to adjust settings and navigate your content. All this and more makes the TX-NR609 an irresistible choice for the value-seeking home theater fan.
Special Features
- HDMI Support for 3D Video and Audio Return Channel
- Marvell Qdeo™ Video Chip for 4K Upscaling and Processing
- Network Capability Delivers Internet Radio and Network Streaming
- THX® Select2 Plus™ Certified
- Direct Digital Connection of iPod/iPhone via Front-Panel USB Port
- Audyssey DSX™ and Dolby® Pro Logic® IIz Add New Dimensions to Surround Sound
Amplifier Section |
|
| Power Output | - |
| Front L/R | 100 W + 100 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC) 125 W + 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC) |
| Center | 100 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC) 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC) |
| Surround L/R | 100 W + 100 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC) 125 W + 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC) |
| Surround Back L/R | 100 W + 100 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC) 125 W + 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC) |
| Dynamic Power | 240 W (3 ohms, 1 ch) 210 W (4 ohms, 1 ch) 120 W (8 ohms, 1 ch) |
| THD (Total Harmonic Distortion) | 0.08% (20 Hz-20 kHz, Half power) |
| Damping Factor | 60 (Front, 1 kHz, 8 ohms) |
| Input Sensitivity and Impedance | 200 mV/47 k-ohms (Line) |
| Output Level and Impedance | 200 mV/2.2 k-ohms (Rec out) |
| Phono Overload | - |
| Frequency Response | 5 Hz-100 kHz/+1 dB, -3 dB (DSP bypass) |
| Tone Control | ±10 dB, 50 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-Noise Ratio | 106 dB (Line, IHF-A) |
| Speaker Impedance | 6 ohms–16 ohms |
Video Section |
|
| Input Sensitivity/Output Level and Impedance | - |
| Video | 1 Vp-p/75 ohms (Component) 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR) 1 Vp-p/75 ohms (Composite) |
| Component Video Frequency Response | 5 Hz–100 MHz, -3dB |
Tuner Section |
|
| Tuning Frequency Range | - |
| FM | 87.5 MHz–107.9 MHz |
| AM | 530 kHz–1,710 kHz |
| FM/AM Preset Memory | 40 stations |
General |
|
| Power Supply | AC 120 V, 60 Hz |
| Power Consumption | 6.2 A |
| Dimensions (W x H x D) | 17 1/8" x 6 13/16" x 12 15/16" (435 x 173.5 x 328 mm) |
| Weight | 24.7 lbs (11.2 kg) |
Two-Year Parts and Labor by Onkyo Canada
electronicsforless.ca is s registered dealer for Onkyo Canada. | electronicsforless.ca is a certified Onkyo Canada dealer |
*XM requires separate purchase of XM Mini Tuner and Home Dock.SIRIUS requires separate purchase of subscription,compatible tuner and antenna.
