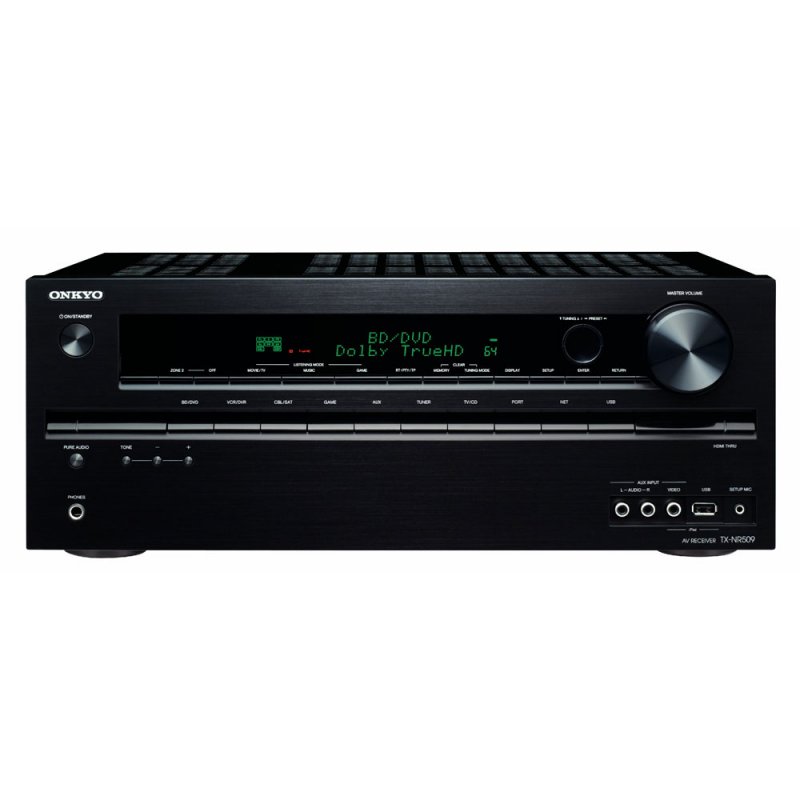

Onkyo TX-NR509 5.1 Channel Home Theater Network A/V Receiver

Brand New · Factory Sealed · Onkyo Authorized Dealer

$499.00 sale $399.00

end of _buybox_price

Free Canada-wide Shipping • Ships out in 2 business days

end of _buybox_shipping end of _buybox_core.php

$133/mo over 3 months

end of _payments end of _buybox_coupon

end of _xwarranty

Available
Free shipping
2yr Manufacturer Warranty
5% Price Promise

Trusted by 150,000+ Canadian customers since 2001

Ask an Audio Expert Real answers from EFLC product specialists

end of _buybox_trust

Affordable Home Theater Centerpiece with Audio Network Capability

New at the entry level, the networking ability of the TX-NR509 takes you one step closer to fully integrated home entertainment. Audio files on your computer and streaming internet radio can both now be played through your main system, with fidelity far beyond what you’re used to on a PC. When it comes to setting up the TX-NR509, Audyssey 2EQ® works to adapt the soundstage to the unique dimensions of your room. On-the-fly adjustments to audio and video settings are simple, thanks to the user-friendly overlaid on-screen display. Additional system control is provided by Onkyo’s Remote App, which lets you use your iPod/iPhone as a remote controller. The receiver’s four advanced HDMI® inputs handle stunning high-definition audio from Dolby and DTS, as well as dynamic new 3D video. Further connectivity highlights include a new front-panel USB port that offers a clean digital link for both iPod/iPhone and USB storage devices, and Zone 2 line-outs that let you send a stereo audio signal to a second room equipped with an amp and speakers. All in all, the TX-NR509 offers a superb feature set for the value conscious home theater fan.

Special Features

HDMI Support for 3D Video and Audio Return Channel
Network Capability Delivers Internet Radio and Network Streaming
Direct Digital Connection of iPod/iPhone via Front-Panel USB Port
Onkyo Remote App for iPod/iPhone
Convenient Overlaid On-Screen Display via HDMI
Optional iPod Dock / HDradio module via proprietary U.Port
Audyssey 2EQ w/ Dynamic EQ

Amplifier Section
Power Output	-
Front L/R	80 W + 80 W (8 ohms, 20 Hz-20 kHz, 0.7%, 2 channels driven, FTC) 110 W + 110 W (6 ohms, 1 kHz, 0.9%, 2 channels driven, FTC)
Center	80 W (8 ohms, 20 Hz-20 kHz, 0.7%, 2 channels driven, FTC) 110 W (6 ohms, 1 kHz, 0.9%, 2 channels driven, FTC)
Surround L/R	80 W + 80 W (8 ohms, 20 Hz-20 kHz, 0.7%, 2 channels driven, FTC) 110 W + 110 W (6 ohms, 1 kHz, 0.9%, 2 channels driven, FTC)
Dynamic Power	180 W (3 ohms, 1 ch) 160 W (4 ohms, 1 ch) 100 W (8 ohms, 1 ch)
THD (Total Harmonic Distortion)	0.08% (20 Hz-20 kHz, Half power)
Damping Factor	60 (Front, 1 kHz, 8 ohms)
Input Sensitivity and Impedance	200 mV/47 k-ohms (Line)
Output Level and Impedance	200 mV/2.2 k-ohms (Rec out)
Phono Overload	-
Frequency Response	20 Hz-50 kHz/+1 dB, -3 dB (DSP bypass)
Tone Control	±10 dB, 50 Hz (Bass) ±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio	100 dB (Line, IHF-A)
Speaker Impedance	6 ohms–16 ohms
Video Section
Input Sensitivity/Output Level and Impedance	-
Video	1 Vp-p/75 ohms (Component) 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR) 1 Vp-p/75 ohms (Composite)
Component Video Frequency Response	5 Hz–100 MHz, -3dB
Tuner Section
Tuning Frequency Range	-
FM	87.5 MHz–107.9 MHz
AM	530 kHz–1,710 kHz
FM/AM Preset Memory	40 stations
General
Power Supply	AC 120 V~, 60 Hz
Power Consumption	3.9 A
Dimensions (W x H x D)	17 1/8" x 6 13/16" x 12 15/16" (435 x 173.5 x 328 mm)
Weight	18.7 lbs (8.5 kg)

Two-Year Parts and Labor by Onkyo Canada

electronicsforless.ca is s registered dealer for Onkyo Canada.

electronicsforless.ca is a certified Onkyo Canada dealer

*XM requires separate purchase of XM Mini Tuner and Home Dock.SIRIUS requires separate purchase of subscription,compatible tuner and antenna.
