Expanding the Scope of Entry-Level Home Entertainment

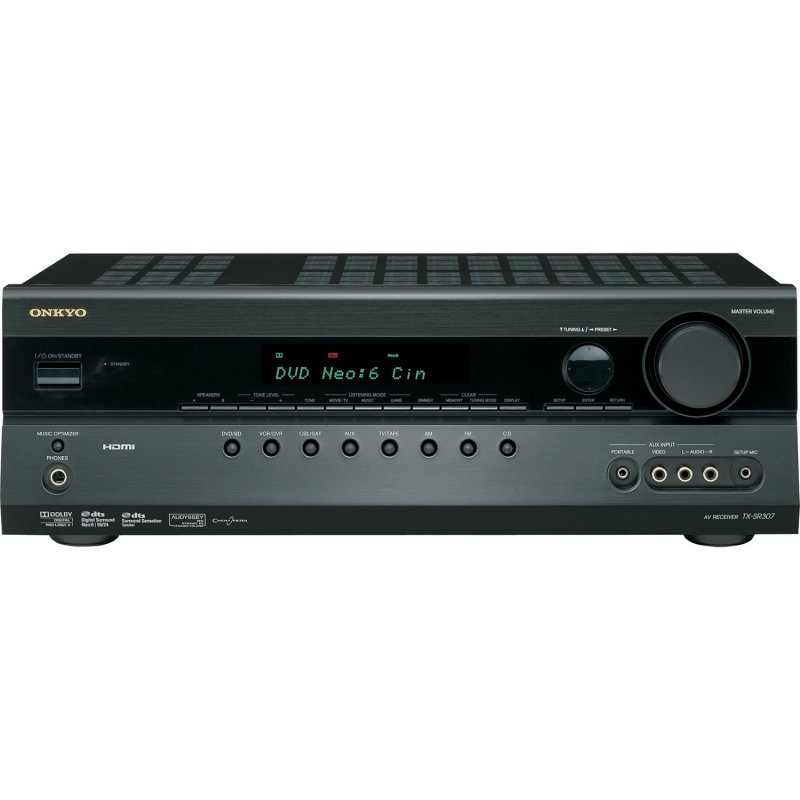

In budget-conscious times such as these, Onkyo’s track record of value for money is more relevant than ever. Now, with the TX-SR307 home theater receiver, we bring unprecedented levels of performance and connectivity to the entry level. On the video side, the TX-SR307 can receive up to three 1080p resolution video sources via HDMI™—think Blu-ray Disc, PlayStation®, and HD broadcasts—and send pristine video to your compatible high-definition display. When it comes to audio, a suite of Audyssey technologies work to match the sound output to your listening space. The TX-SR307 even makes friendly with your iPod® or other MP3 player, via a frontpanel input. All those compressed audio files will sound far better thanks to onboard Music Optimizer technology. Rounding out this versatile system are four new gaming modes that allow you to customize the audio to your chosen game type.

Special Feature

• Three 1080p capable HDMI inputs (V1.3a Pass-Thru*)
• 4 DSP Gaming Modes: Rock, Sports, Action, and Role Playing
• Audyssey Dynamic Volume™ to Maintain Optimal Listening Level
• Audyssey 2EQ™ for auto Room Calibration

Amplifier Section

• Power Output* (8 ohm, 20 Hz-20 kHz, FTC) -
  • Front L/R 65 W/Ch
  • Center 65 W
  • Surround L/R 65 W/C
• Power Output* (6 ohm, 1 kHz, FTC) -
• Front L/R 90 W/Ch
• Center 90 W
• Surround L/R 90 W/Ch
• Dynamic Power** (front) -
  • 3 ohm 160
  • 4 ohm 125
  • 8 ohm 85
• THD (Rated Power) 0.08 % (all channels)
  • Damping Factor (1 kHz, 8 ohm) 60
• Input Sensitivity and Impedance -
  • CD and TAPE Play 200 mV, 47 k ohm
• Output Level and Impedance -
  • TAPE REC 200 mV, 470 ohm
  • PRE OUT 1.0 V, 470 ohm
• Frequency Response 20 Hz-50 kHz
• S/N Ratio -
  • PHONO (MM) -
  • CD/TAPE 100 dB (IHF-A, 0.5 V input)
• Phono Overload (1 kHz) -
• Tone Controls -
  • BASS +/- 12 dB at 50 Hz
  • TREBLE +/- 12 dB at 20 kHz

Tuner Section

• Usable Sensitivity -
  • FM Mono 11.2 dBf, 1.0 uV (75 ohm IHF)
  • FM Stereo 17.2 dBf, 2.0 uV (75 ohm IHF)
  • AM 30 uV
• S/N Ratio -
  • FM Mono 76 dB (IHF-A)
  • FM Stereo 70 dB (IHF-A)
  • AM 40 dB
• THD -
  • FM Mono 0.2 %
  • FM Stereo 0.3 %
  • AM 0.7 %
• FM Stereo Separation 45 dB at 1 kHz,30 dB at 100 Hz-10 kHz

General

• Dimensions (W x H x D) 17 1/8" x 5 15/16" x 12 15/16"
• Weight 17.6 lbs
