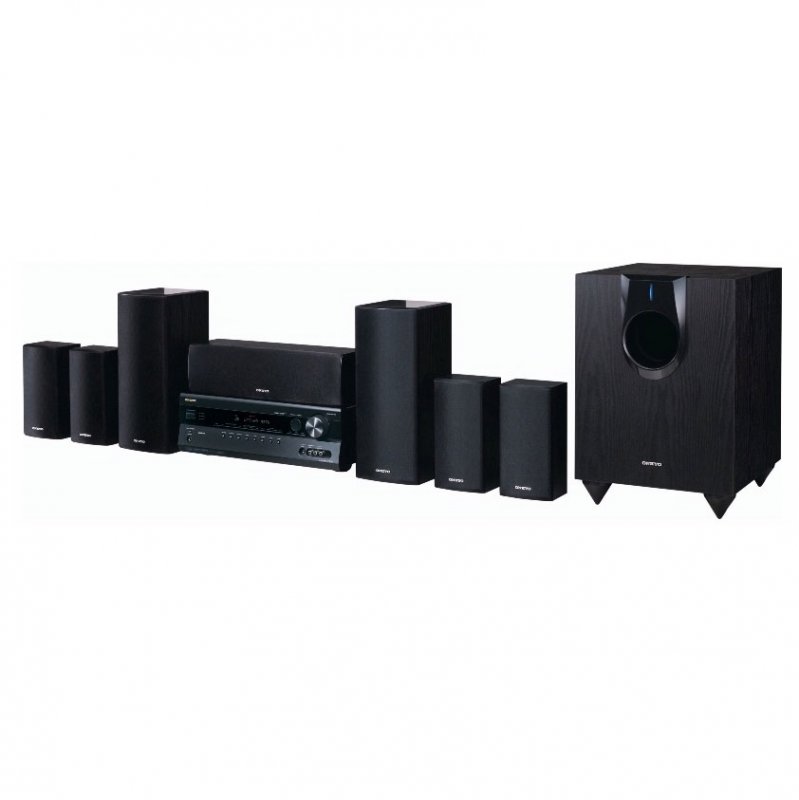

Onkyo HT-S5300 7.1-Channel Home Theater Receiver Speaker Package

Brand New · Factory Sealed · Onkyo Authorized Dealer

$699.00

end of _buybox_price

Free Canada-wide Shipping • Ships out in 2 business days

end of _buybox_shipping end of _buybox_core.php

$117/mo over 6 months

end of _payments end of _buybox_coupon

end of _xwarranty

Available
Free shipping
2yr Manufacturer Warranty
5% Price Promise

Trusted by 150,000+ Canadian customers since 2001

Ask an Audio Expert Real answers from EFLC product specialists

end of _buybox_trust

The Ideal Foundation for Fully Immersive Home Entertainment

Onkyo has built a reputation for making advanced features and performance more affordable for budget-conscious fans of home entertainment. Take, as a prime example, the HT-S5300 receiver and speaker package. At the heart of this 7.1-channel system, you have an A/V receiver sporting four of the latest HDMI™ 1.4a inputs—enough for all your high-def sources. HDMI 1.4a brings compatibility with 3D video—coming soon—and an Audio Return Channel. With the HT-S5300, you can also adjust settings on the fly with a handy overlaid on-screen display. The receiver offers a broad range of connectivity options, such as a front input for portable devices and a Universal Port for one-cable connection of the included Dock for iPhone/iPod. High-quality Burr-Brown DACs ensure pristine analog conversion of all digital audio sources, including HD audio formats from Dolby and DTS. And Dolby® Pro Logic® IIz gives you the option of a new height-channel set-up with the included 7.1-channel speaker package.

Special Features

Four 1080p capable HDMI inputs (V1.4a) supporting 3D video and Audio Return Channel
Total 1200W with a Powerfull 10-inch 290W Powered Subwoofer
WRAT technology and discrete amp construction for cleaner sound
4 DSP Gaming Modes: Rock, Sports, Action, and Role Playing
Includes dedicated RI iPod dock (UP-A1) which supports the following iPods:
- 4th Gen iPod
- 4th Gen iPod (color display)
- iPod Photo
- iPod video
- iPod Classic (80, 120 and 160GB)
- 1st - 5th Gen iPod Nano
- 1st, 2nd and 3rd Gen iPod Touch
- iPhone, iPhone 3G and iPhone 3G

Amplifier
# Channels	7.1
Total System Power	1200W
Power (6 ohms, 1kHz, 1%)/Ch	130W/ch x 7ch
Sub Power	290W
THX Certified	-
All Discrete Amplifier Circuitry	YES
Speaker A/+B	YES
Processing
DOLBY Decoder	TrueHD, DD PLus, PLIIz
DTS Decoder	HD-Master Audio, HD-High Resolution Audio
Dolby PLIIz	YES
ONKYO GAME Surround Modes	YES
Audyssey Dynamic EQ	YES
Audyssey Dynamic Volume	YES
Music Optimizer	YES
Connectivity
Audio I/O	6 / 2
Digital Audio IN (OPT/COAX)	2 / 2
Digital Audio OUT (OPT/COAX)	-
Composite I/O	4 / 1
S-Video I/O	-
Component Video I/O	2 / 1
Front-Panel Portable input (stereo mini jack)	YES
HDMI I/O	4 / 1
HDMI Version	V1.4a (supporting 3D video and Audio Return Channel)
Component Video Upconversion	-
Analog To HDMI UpConversion	-
Multi-Channel Input	-
Powered Zone2	-
U-port	YES
iPod Ready	YES (UP-A1 included)
HD Radio Ready	YES (via optional UP-HT1)
XM Radio Ready	-
SIRIUS Radio Ready	-
DVD Player
DVD Player Type	-
Analog Audio Output	-
Digital Audio Output (OPT/COAX)	-
Composite Output	-
S-Video Output	-
Component Video Output	-
HDMI Output	-
720p / 1080i Upscaling	-
1080p Upscaling	-
Speaker
Front Speaker	2 Way
Center Speaker	2 Way
Surround Speaker	Full Range
Subwoofer	10" Down Firing
Cabinet Type	Wood
Miscellaneous
Pre-Pro/Learning Remote	YES / -
On Screen Remote Programming	-
Free HDMI Cable Included	-
Free iPod Dock Included	YES (UP-A1)
Color-Coded Speaker Terminals	YES
Auto Speaker Calibration W/Mic.	YES (Audyssey EQ - no mic)
OSD Out	YES (basic overlay)
Warranty	2 YEARS

Amplifier Section
Power Output	-
Front L/R	130 W/Channel (8 ohms, 1 kHz, FTC)
Center	130 W (8 ohms, 1 kHz, FTC)
Surround L/R	130 W/Channel (8 ohms, 1 kHz, FTC)
Surround Back L/R	130 W/Channel (8 ohms, 1 kHz, FTC)
Dynamic Power	180 W (3 ohms) 160 W (4 ohms) 100 W (8 ohms)
THD (Total Harmonic Distortion)	0.08%
Damping Factor	60 (Front, 1 kHz, 8 ohms)
Input Sensitivity and Impedance	200 mV/47 k-ohms (Line)
Output Level and Impedance	200 mV/470 ohms (Rec out)
Frequency Response	5 Hz–100 kHz/ +1 dB, -3 dB (Direct mode)
Tone Control	±10 dB, 50 Hz (Bass) ±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio	106 dB (Line, IHF-A)
Speaker Impedance	6 ohms–16 ohms
Video Section
Input Sensitivity/Output Level and Impedance	-
Video	1.0 Vp-p/75 ohms (Component) 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR) 1.0 Vp-p/75 ohms (Composite)
Component Video Frequency Response	5 Hz–100 MHz
Tuner Section
Tuning Frequency Range	-
FM	87.5 MHz–107.9 MHz
AM	530 kHz–1,710 kHz
FM/AM Preset Memory	40 stations
General
Power Supply	AC 120 V, 60 Hz
Power Consumption	4.9 A
Standby Power Consumption	N/A
Dimensions (W x H x D)	17 1/8" x 5 15/16" x 12 15/16" (435 x 151.5 x 328.5 mm)
Weight	19.0 lbs. (8.6 kg)
Speaker Section
Speaker Type	-
Front/Center	2-way, bass reflex
Surround	Full-range
Surround Back	Full-range
Subwoofer	Bass reflex powered
Drivers	-
Front	5" (12 cm) cone woofer, 1" (2.5 cm) balanced-dome tweeter
Center	3 1/4" (8 cm) cone woofer x 2, 1" (2.5 cm) balanced-dome tweeter
Surround	3 1/4" (8 cm) cone
Surround Back	3 1/4" (8 cm) cone
Subwoofer	10" (25 cm) cone
Frequency Response	-
Front/Center	55 Hz–50 kHz/65 Hz–50 kHz
Surround	80 Hz–20 kHz
Surround Back	80 Hz–20 kHz
Subwoofer	25 Hz–150 Hz
Output Sound Pressure Level	-
Front	85 dB/W/m
Center	86 dB/W/m
Surround	81 dB/W/m
Surround Back	81 dB/W/m
Subwoofer	-
Max. Input Power	-
Front/Center/Surround	130 W
Surround Back	130 W
Subwoofer	-
Max. Output Power	-
Subwoofer	290 W
Nominal Impedance	-
Front/Center/Surround	6 ohms
Surround Back	6 ohms
Subwoofer	-
Input Sensitivity/Impedance	-
Subwoofer	140mV/20 k-ohms
General
Dimensions (W x H x D)	-
Front	6 1/8" x 14 13/16" x 6 11/16" (155 x 375.5 x 170 mm)
Center	16 9/16" x 4 1/2" x 4 3/4" (420 x 115 x 121 mm)
Surround	4 1/2" x 9 1/16" x 3 3/4" (115 x 230 x 96 mm)
Surround Back L/R	4 1/2" x 9 1/16" x 3 3/4" (115 x 230 x 96 mm)
Subwoofer	12 1/2" x 18 1/4" x 15 11/16" (317 x 463 x 398 mm)
Weight	-
Front	6 lbs. (2.7 kg)
Center	5.5 lbs. (2.5 kg)
Surround	2.2 lbs. (1.0 kg)
Surround Back	2.2 lbs. (1.0 kg)
Subwoofer	23.6 lbs. (10.7 kg)

Description image for Onkyo HT-S5300 7.1-Channel Home Theater Receiver Speaker Package

Two-Year Manufacturer's Warranty

This item is features a two-year parts and labor warranty.
