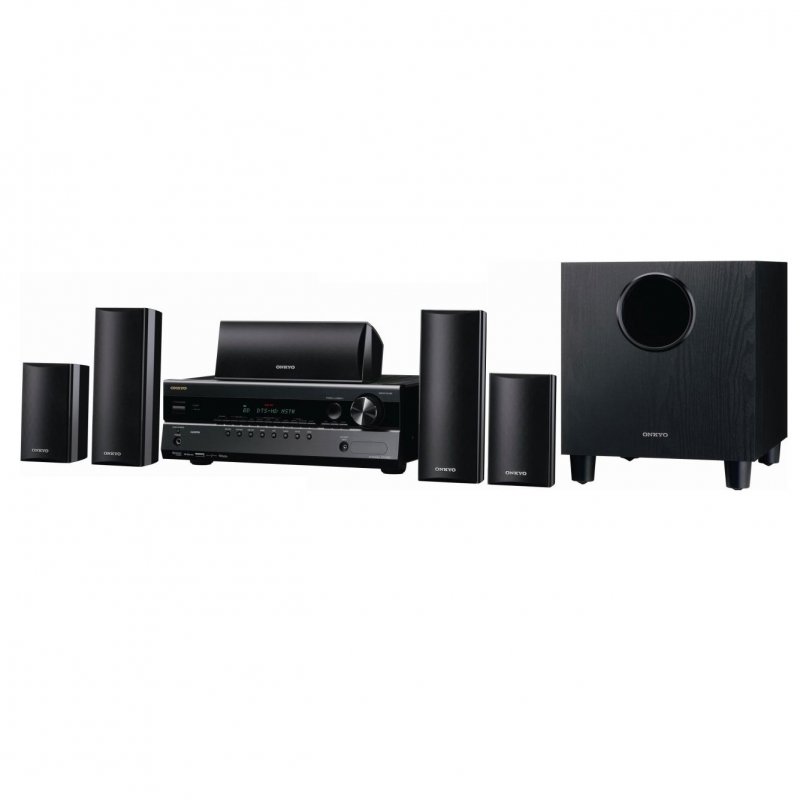

Redefining Entry-Level Packaged Home Theater with HDMI™ 1.4a and HD Audio
If you’re looking for a future-ready receiver-and-speaker package that won’t break the bank, your search may be over. Meet Onkyo’s 5.1-channel HT-S3300—a system packed with so much advanced technology that it redefines entry-level home theater. As with every A/V receiver in Onkyo’s 2010 line-up, you get the latest iteration of HDMI—version 1.4a. Three HDMI inputs let you hook up, say, your Blu-ray player, game console, and cable/satellite box—all of which can be output via a single cable to your connected high-res display.
Not only is HDMI 1.4a compatible with next-generation 3D video, it also enables a convenient Audio Return Channel. On top of this, the HT-S3300 supports lossless HD audio formats from Dolby and DTS—previously the domain of mid-range to high-end receivers only. But that’s not all. The HT-S3300 also provides an overlaid On-Screen Display function for easy adjustment of settings; a Universal Port for one-cable connection of peripherals; Audyssey equalization; four gaming audio modes; and a fully immersive, beautifully balanced 5.1-channel speaker set.
Special Features
- Three 1080p capable HDMI inputs (V1.4a) supporting 3D video and Audio Return Channel
- Total 660W with a Powerfull 8-inch Subwoofer
- Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio and DTS-HD High-Resolution Audio Decoding
- 4 DSP Gaming Modes: Rock, Sports, Action, and Role Playing
- Audyssey Dynamic Volume™ to Maintain Optimal Listening Level
Amplifier | |
| # Channels | 5.1 |
| Total System Power | 660W |
| Power (6 ohms, 1kHz, 1%)/Ch | 110W/ch x 5ch |
| Sub Power | 130W (Passive) |
| THX Certified | - |
| All Discrete Amplifier Circuitry | - |
| Speaker A/+B | YES |
Processing | |
| DOLBY Decoder | DD Plus, True HD |
| DTS Decoder | DTS Master Audio |
| Dolby PLIIz | - |
| ONKYO GAME Surround Modes | YES |
| Audyssey Dynamic EQ | YES |
| Audyssey Dynamic Volume | YES |
| Music Optimizer | YES |
Connectivity | |
| Audio I/O | 5 / 1 |
| Digital Audio IN (OPT/COAX) | 2 / 1 |
| Digital Audio OUT (OPT/COAX) | - |
| Composite I/O | 4 / 1 |
| S-Video I/O | - / - |
| Component Video I/O | 2 / 1 |
| Front-Panel Portable input (stereo mini jack) | YES |
| HDMI I/O | 3 / 1 |
| HDMI Version | V1.4a (supporting 3D video and Audio Return Channel) |
| Component Video Upconversion | - |
| Analog To HDMI UpConversion | - |
| Multi-Channel Input | - |
| Powered Zone2 | - |
| U-Port | YES |
| iPod Ready | YES (Optional UP-A1) |
| HD Radio Ready | YES |
| XM Radio Ready | - |
| SIRIUS Radio Ready | - |
DVD Player | |
| DVD Player Type | - |
| Analog Audio Output | - |
| Digital Audio Output (OPT/COAX) | - |
| Composite Output | - |
| S-Video Output | - |
| Component Video Output | - |
| HDMI Output | - |
| 720p / 1080i Upscaling | - |
| 1080p Upscaling | - |
Speaker | |
| Front Speaker | Full Range, Bass reflex |
| Center Speaker | Full Range, Bass reflex |
| Surround Speaker | Full Range, Bass reflex |
| Subwoofer | 8" Down Firing, Bass reflex |
| Cabinet Type | Wood, Plastic |
Miscellaneous | |
| Pre-Pro/Learning Remote | YES / - |
| On Screen Remote Programming | - |
| Free HDMI Cable Included | - |
| Free iPod Dock Included | - |
| Color-Coded Speaker Terminals | YES |
| Auto Speaker Calibration W/Mic. | Audyssey EQ (no mic) |
| OSD Out | YES (basic overlay) |
| Warranty | 2 YEARS |
Amplifier Section | |
| Power Output | - |
| Front L/R | 110 W/Channel (6 ohms, 1 kHz, FTC) |
| Center | 110 W (6 ohms, 1 kHz, FTC) |
| Surround L/R | 110 W/Channel (6 ohms, 1 kHz, FTC) |
| Surround Back L/R | - |
| Dynamic Power | 160 W (3 ohms) 125 W (4 ohms) 85 W (8 ohms) |
| THD (Total Harmonic Distortion) | 1 % (Rated power) |
| Damping Factor | 60 (Front, 1 kHz, 8 ohms) |
| Input Sensitivity and Impedance | 200 mV/47 k-ohms (Line) |
| Output Level and Impedance | 200 mV/470 ohms (Rec out) |
| Frequency Response | 20 Hz–50 kHz/ +1 dB, -3 dB (Direct mode) |
| Tone Control | ±10 dB, 50 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-Noise Ratio | 100 dB (Line, IHF-A) |
| Speaker Impedance | 6 ohms–16 ohms |
Video Section | |
| Input Sensitivity/Output Level and Impedance | - |
| Video | 1.0 Vp-p/75 ohms (Component) 0.7 Vp-p/75 ohms (Component PB/CB, PR/CR) 1.0 Vp-p/75 ohms (Composite) |
| Component Video Frequency Response | 5 Hz–100 MHz/0 dB, -3 dB |
Tuner Section | |
| Tuning Frequency Range | - |
| FM | 87.5 MHz–107.9 MHz |
| AM | 530 kHz–1,710 kHz |
| FM/AM Preset Memory | 40 stations |
General | |
| Power Supply | AC 120 V, 60 Hz |
| Power Consumption | 3.6 A |
| Standby Power Consumption | 0.1 W |
| Dimensions (W x H x D) | 17 1/8" x 5 15/16" x 12 15/16" (435 x 151 x 329 mm) |
| Weight | 17.6 lbs. (8.0 kg) |
Speaker Section | |
| Speaker Type | - |
| Front/Center | Full-range, bass reflex |
| Surround | Full-range, bass reflex |
| Subwoofer | Bass reflex, passive |
| Drivers | - |
| Front | 3 1/4" (8 cm) cone |
| Center | 3 1/4" (8 cm) cone |
| Surround | 3 1/4" (8 cm) cone |
| Subwoofer | 8" (20 cm) cone |
| Frequency Response | - |
| Front/Center | 80 Hz–20 kHz |
| Surround | 80 Hz–20 kHz |
| Surround Back | - |
| Subwoofer | 30 Hz–150 Hz |
| Output Sound Pressure Level | - |
| Front | 82 dB/W/m |
| Center | 82 dB/W/m |
| Surround | 81 dB/W/m |
| Surround Back | - |
| Subwoofer | 83 dB/W/m |
| Max. Input Power | - |
| Front/Center/Surround | 120 W |
| Surround Back | - |
| Subwoofer | 130 W |
| Max. Output Power | - |
| Subwoofer | - |
| Nominal Impedance | - |
| Front/Center/Surround | 6 ohms |
| Surround Back | - |
| Subwoofer | 6 ohms |
| Input Sensitivity/Impedance | - |
| Subwoofer | - |
General | |
| Dimensions (W x H x D) | - |
| Front | 4" x 10 3/4" x 4 3/4" (101 x 273 x 121 mm) |
| Center | 10 3/4" x 4" x 4 3/16" (273 x 101 x 106 mm) |
| Surround | 4" x 6 7/8" x 4 9/16" (101 x 175 x 116 mm) |
| Surround Back L/R | - |
| Subwoofer | 11 5/8" x 13 9/16" x 14 1/2" (295 x 345 x 368 mm) |
| Weight | - |
| Front | 2.2 lbs. (1.0 kg) |
| Center | 2.2 lbs. (1.0 kg) |
| Surround | 1.5 lbs. (0.7 kg) |
| Surround Back | - |
| Subwoofer | 14.1 lbs. (6.9 kg) |
 | electronicsforless.ca is a certified Onkyo Canada dealer |
