Manhattan 177276 HDMI 1.2 Cat5e/Cat6 1080p Extender Kit up to 30m BLACK

The Manhattan 177276 HDMI 1.2 Cat5e/Cat6 Extender Kit provides a practical solution for extending high-definition HDMI audio and video signals over longer distances using standard Cat5e or Cat6 network cabling. Supporting Full HD 1080p transmission up to 30 metres (98 feet), this transmitter and receiver system allows compatible source equipment to be positioned away from a television, projector or other HDMI display.

Designed for home theatres, classrooms, conference rooms, retail installations and commercial audiovisual systems, the extender replaces the need for a single long HDMI cable with two Cat5e or Cat6 cable runs. This provides flexible installation options using widely available structured cabling while helping maintain signal integrity over the specified transmission distance.

The system includes a dedicated HDMI transmitter, HDMI receiver and external power adapter. Featuring HDMI 1.2a, HDCP 1.0/1.1 and DVI 1.0 compatibility, the Manhattan 177276 supports common high-definition video formats, including 480i, 480p, 720p, 1080i and 1080p. Its plug-and-play design requires no software installation or complicated configuration.

Extend Full HD 1080p Signals up to 30 Metres

The Manhattan 177276 allows a compatible HDMI signal to be transmitted over distances up to 30 metres (98 feet) at 1080p resolution when using suitable Cat6 cabling.

For lower-resolution 480p applications, the manufacturer specifies transmission distances up to 60 metres (196 feet) over Cat6 cable.

This extended range provides flexibility when connecting audiovisual equipment located in another part of a room or at a remote installation position.

HDMI over Cat5e/Cat6 Cabling

Rather than relying on a single long HDMI cable, the extender uses two separate Cat5e or Cat6 cable runs to connect its transmitter and receiver modules.

The transmitter connects to the HDMI output of a compatible source device, while the receiver connects to the HDMI input of the display. Two matching network cables carry the required signals between the modules.

Cat5e and Cat6 cabling is flexible, widely available and convenient to route through suitable cable pathways. Shielded cabling is recommended for optimum transmission quality.

Dedicated Transmitter and Receiver Modules

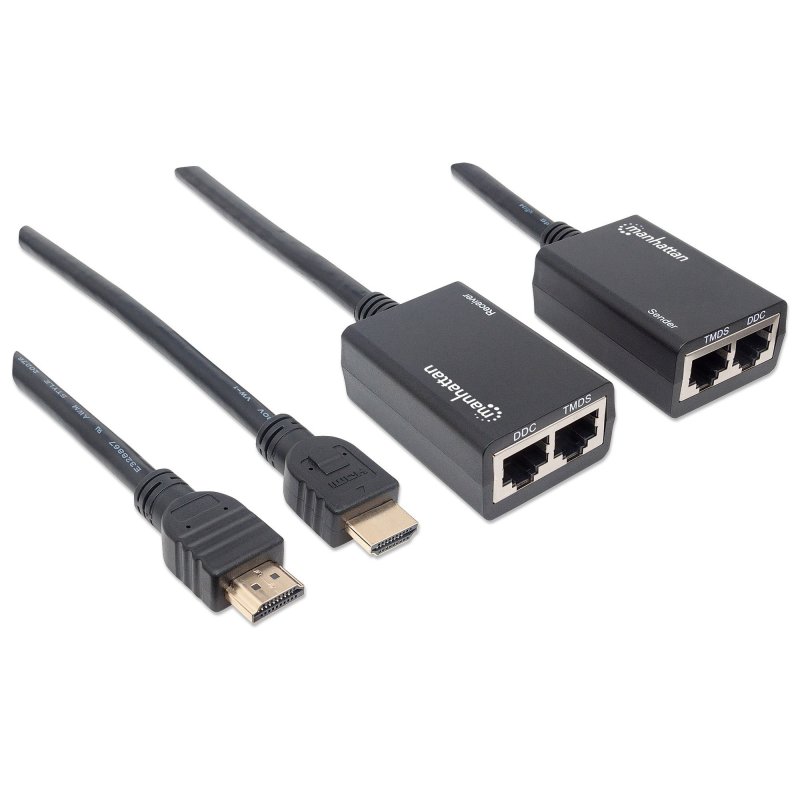

The Manhattan 177276 includes two compact modules designed to work together as a complete HDMI extension system.

The transmitter features an HDMI input for connecting source equipment such as a Blu-ray player, media player, game console or set-top box. The receiver provides an HDMI output for connecting a compatible television, monitor or projector.

Each module provides two RJ45 connections for the required Cat5e or Cat6 cable runs.

HDMI 1.2a and HDCP Compatibility

The extender supports HDMI 1.2a and HDCP 1.0/1.1, providing compatibility with supported high-definition audiovisual equipment and protected digital content.

DVI 1.0 compatibility allows integration with suitable DVI equipment when appropriate adapters and compatible signal formats are used.

The Manhattan 177276 is intended for legacy and Full HD systems. It does not support modern 4K or 8K HDMI video transmission.

High-Definition Video Performance

The Manhattan 177276 supports common digital television resolutions, including 480i, 480p, 576i, 576p, 720p, 1080i and 1080p.

Supported computer display resolutions include 640 x 480, 800 x 600, 1024 x 768 and 1920 x 1200 pixels.

The manufacturer specifies a maximum single-link resolution of 1920 x 1200 pixels and a video signal bandwidth of 1.65Gbps at 140MHz.

Ideal for Home and Commercial AV Installations

The Manhattan HDMI Extender is suitable for installations requiring greater separation between a video source and its display.

Typical applications include home theatres with remotely located AV equipment, conference room projectors, classroom displays, retail information screens, business presentations and trade show installations.

Its compact design allows the transmitter and receiver to be positioned near compatible equipment without requiring a large distribution enclosure.

Easy Plug-and-Play Installation

The extender requires no drivers, dedicated software or complex setup procedures.

Connect the HDMI source to the transmitter using a suitable HDMI cable, then connect the transmitter and receiver using two Cat5e or Cat6 cables. Connect the receiver to the display with another HDMI cable and supply power using the included adapter.

For best results, Manhattan recommends shielded network cables and HDMI connection cables no longer than approximately 2 metres (6 feet) between the extender modules and connected equipment.

Compact Construction

The extender modules feature compact housings measuring approximately 81 x 45 x 25 mm (3.2 x 1.8 x 1.0 inches).

Their space-saving dimensions make them suitable for equipment cabinets, presentation installations and other locations where available mounting or connection space is limited.

Features

• Complete HDMI 1.2a extender kit with transmitter and receiver
• Extends Full HD 1080p video signals up to 30 m (98 ft) over suitable Cat6 cabling
• Supports 480p transmission up to 60 m (196 ft) over Cat6 cabling
• Uses two Cat5e or Cat6 network cables between modules
• Compatible with HDMI-equipped televisions, projectors, monitors and source devices
• HDMI 1.2a interface compatibility
• HDCP 1.0 and 1.1 support
• DVI 1.0 compatibility with suitable equipment
• Supports 480i, 480p, 576i, 576p, 720p, 1080i and 1080p video formats
• Supports computer resolutions up to 1920 x 1200 pixels
• Maximum specified video bandwidth of 1.65Gbps / 140MHz
• HDMI female connection on each module
• Two RJ45 female connections on each module
• Plug-and-play operation without software configuration
• Compact transmitter and receiver housings
• External 5V DC / 2A power adapter included
• Suitable for home theatres, classrooms, conference rooms and commercial AV systems
• Compatible with shielded Cat5e/Cat6 installation cabling
• Black finish

Specifications

General

• Brand: Manhattan
• Model: 177276
• UPC: 766623177276
• Product Type: HDMI over Cat5e/Cat6 Extender Kit
• System Configuration: Transmitter and Receiver
• Colour: Black
• Installation: Wired Audio/Video Extension

HDMI Standards and Certifications

• HDMI Standard: HDMI 1.2a
• HDCP Support: HDCP 1.0 / 1.1
• DVI Compatibility: DVI 1.0
• Certifications: CE, FCC, UL

Transmission Performance

• Maximum 1080p Distance: 30 m (98 ft) over Cat6
• Maximum 480p Distance: 60 m (196 ft) over Cat6
• Transmission Cabling: Two Cat5e or Cat6 Cables
• Recommended Cabling: Shielded Cat5e or Cat6
• Maximum Single-Link Resolution: 1920 x 1200 Pixels
• Video Bandwidth: 1.65Gbps / 140MHz
• Input Video Signal: 0.5 - 1.0 V Peak-to-Peak
• Input DDC Signal: 5 V Peak-to-Peak (TTL)

Supported Video Resolutions

• Standard Definition: 480i, 480p, 576i, 576p
• High Definition: 720p, 1080i, 1080p
• Computer Resolutions: 640 x 480, 800 x 600, 1024 x 768, 1920 x 1200
• 4K Support: No
• 8K Support: No

Connections

• Transmitter HDMI: 1 x HDMI Female Input
• Receiver HDMI: 1 x HDMI Female Output
• Transmitter Network Connections: 2 x RJ45 Female
• Receiver Network Connections: 2 x RJ45 Female
• Required Network Cables: Two Cat5e or Cat6 Cables (Sold Separately)
• External HDMI Cables: Required (Sold Separately)

Power

• Power Input: 5V DC / 2A
• Power Adapter: Included
• Adapter Cable Length: 1.2 m (4 ft)
• Adapter Cable Construction: Ferrite Core

Physical Specifications

• Module Dimensions: 81 x 45 x 25 mm (3.2 x 1.8 x 1.0 in)
• Manufacturer-Listed Weight: 246 g (0.54 lb)

What's in the Box

• 1 x Manhattan HDMI Transmitter Module
• 1 x Manhattan HDMI Receiver Module
• 1 x 5V DC / 2A Power Adapter
• 1 x User Manual
