Key Digital KDX2X1WDTX 2x1 4K Wall Plate Switcher HDMI & DisplayPort Canada : EFLC.ca (KDX2X1WDTX)

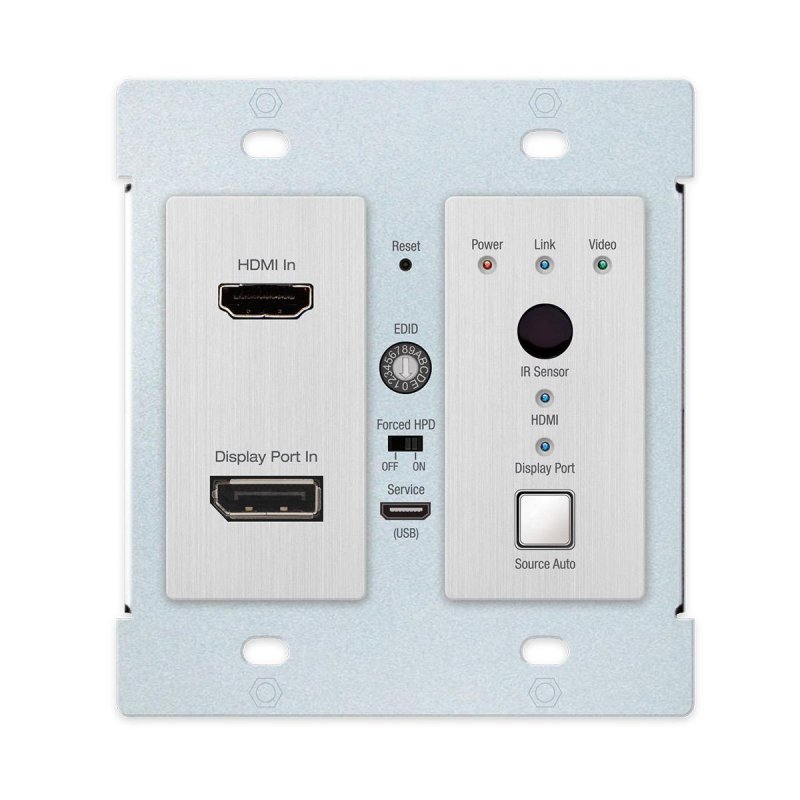

Key Digital KDX2X1WDTX 2x1 4K Wall Plate Switcher HDMI & DisplayPort

That’s EFLC — Entertaining Finds, Lower Checkout.

$743.99

Secure One-Page Checkout

This product is brand-new and factory sealed Key Digital KDX2X1WDTX Available
UPC : 815996021225 5% Price Promise
Warranty : 1yr Manufacturer 14 Day Money Back
Shipping : FREE in Canada Ships in 2 to 4 Days

$124/mo suggested payments with 6 month special financing now with Flexiti.Get approved for financing in under 3 minutes

Details

Features:

Presentation Switching: 1 HDMI and 1 Display Port / VGA with Analog Audio source selected by push button
Rx Options: Native integration with KD-X40MRx black box HDBaseT Rx and KD-PS42 Presentation Switcher. Other Rx options available
Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
HDCP Licensing: Fully licensed and compatible with HDCP 2.2
HDR10: More life-like images through a greater range of luminance levels
Power Over HDBaseT: Wall-plate unit powered by Rx/Presentation Switch unit
Installation: Tx unit designed for installation in standard US dual-gang box. Silver Decora plate included
Signal Extension: For resolution and cable quality
4K/UHD (18G): Up to 40m / 131ft
1080p: Up to 70m / 230ft
Deep Color Support: Up to UHD/4K 60Hz 4:2:0 12bits or 4:2:2 12bits
Full Buffer System ™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
IR Sensor: Wall-plate collects line-of-sight IR from remote(s) without external IR wiring
RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit
Unit Control: via USB for initial installation steps
Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio ™, and Dolby® Atmos

Specifications

Specifications:

Technical:

KD-X2x1WDTx Inputs: 1 HDMI, 1 Display Port, 1 IR Sensor, 1 Serial IR
KD-X2x1WVTx Inputs: 1 HDMI, 1 DB15, 1 3.5mm Stereo Audio, 1 IR Sensor, 1 Serial IR
Outputs: 1 CAT5e/6 UTP/STP, 1 Bi-Directional RS-232
DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
KD-X2x1WVTx VGA Video Signal: Input Video Signal: 1.2 Volts p-p
KD-X2x1WVTx Analog Audio Input: 2 VRMS line audio, 3.5mm Stereo Female
KD-X2x1WDTX Display Port Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
HDMI Connector: Type A, 19 Pin Female
KD-X2x1WVTx VGA Connector: 15 Pin, Female
KD-X2x1WDTx Display Port Connector: Full Size, 20 Pin Female
RJ45 Connector: Shielded Link Connector, HDBaseT
IR Connectors: 1 IR Sensor, 1 2-pin phoenix terminal
RS-232 Connector: 3-pin phoenix terminal

General:

Regulation: CE, RoHS, WEEE, EAC
Enclosure: Tx unit: Brushed aluminum face with black metal backing
Dimensions: 3.21" x 2.06" x 0.787" (Wall-plate)
Product Weight: 0.7 lbs

What's in the box:

Aluminum Decora plate (qty 1)
Decora mounting screws with flat head (qty 4)
Gang-box mounting screws (qty 4)
Mounting bracket (qty 2)
3-pin phoenix terminal (qty 1)
2-pin phoenix terminal (qty 1)
